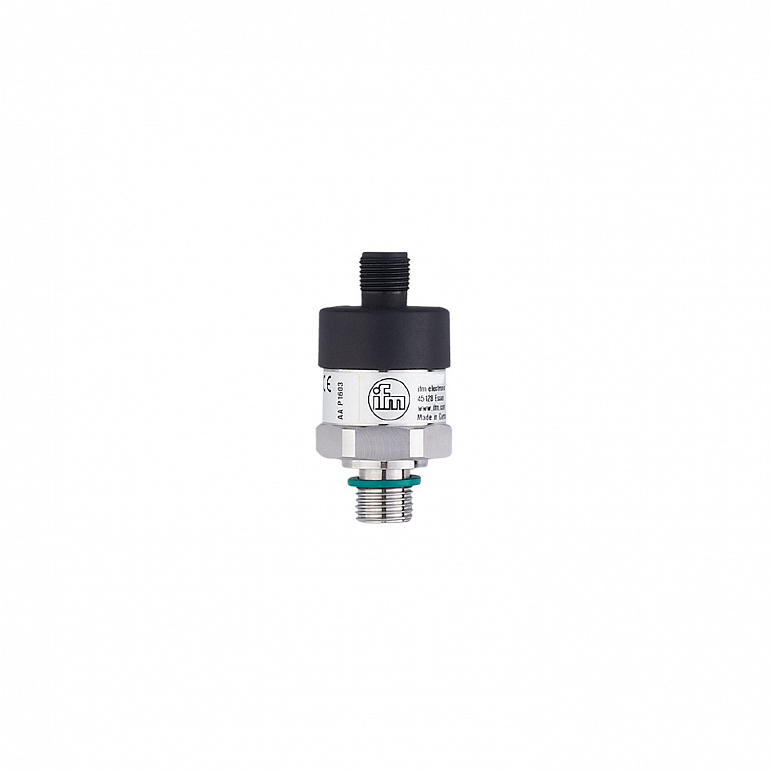

| Number of inputs and outputs |
Number of analog outputs: 1 |
| Measuring range |
| 0...1 bar | 0...1000 mbar | 0...14.5 psi | 0...100 kPa |
|
| Process connection |
threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature |
0...80 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure |
Absolute pressure |
| Operating voltage |
8...30 DC |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Total number of outputs |
1 |
| Output signal |
analog signal |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
800; (Ub = 24 V; (Ub - 8 V) / 20 mA) |
| Short-circuit proof |
yes |
| Measuring range |
| 0...1 bar | 0...1000 mbar | 0...14.5 psi | 0...100 kPa |
|
| Repeatability |
< ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation |
< ± 1,0; (incl. zero point and span error, non-linearity, hysteresis) |
| Linearity deviation |
< ± 0,5 (BFSL) / < ± 1,0 (LS) |
| Long-term stability |
< ± 0,1; (per year) |
| Temperature coefficient zero point |
< ± 0,2; (0...80 °C) |
| Temperature coefficient span |
< ± 0,2; (0...80 °C) |
| Step response time analog output |
4 |
| Ambient temperature |
0...80 |
| Storage temperature |
-20...80 |
| Protection |
IP 67 |
| EMC |
|
| Shock resistance |
| DIN EN 60068-2-27 | 500 g (1 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 10 g (10...2000 Hz) |
|
| MTTF |
815 |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
116.5 |
| Housing |
tubular |
| Dimensions |
Ø 29 / L = 58.8 |
| Material |
stainless steel (1.4404 / 316L); HNBR; PA |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L) |
| Min. pressure cycles |
10 million |
| Tightening torque |
25...35; (recommended tightening torque; Depends on lubrication, seal and pressure rating) |

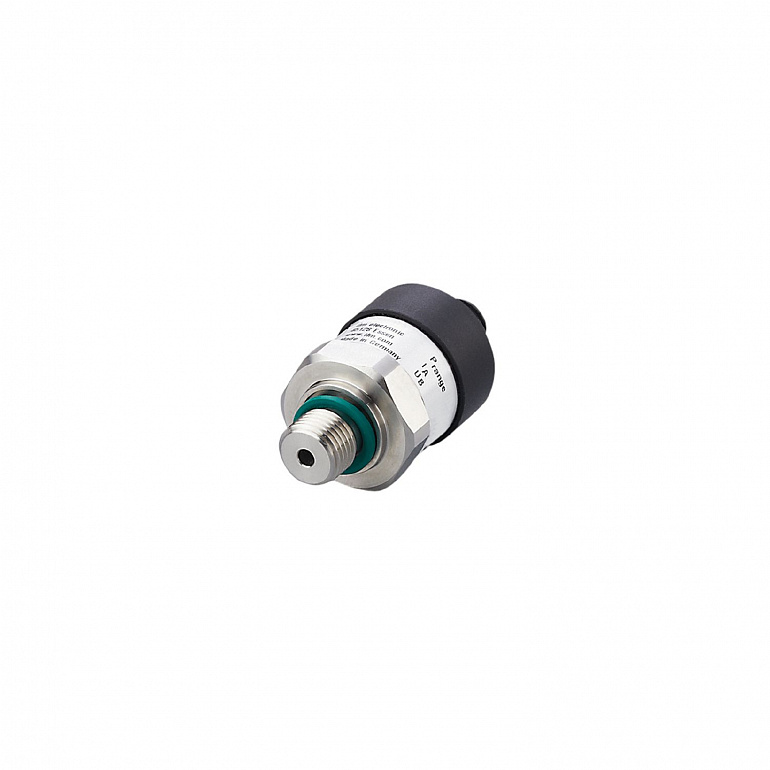

| Process connection |
threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
| Process connection sealing |
NBR (DIN EN ISO 1179-2) |
| Fill fluid for pressure transfer |
synthetic oil |
| Restrictor element integrated |
no |
| Remarks |
| BFSL = Best Fit Straight Line | | LS = limit value setting |
|
| Pack quantity |
1 pcs. |

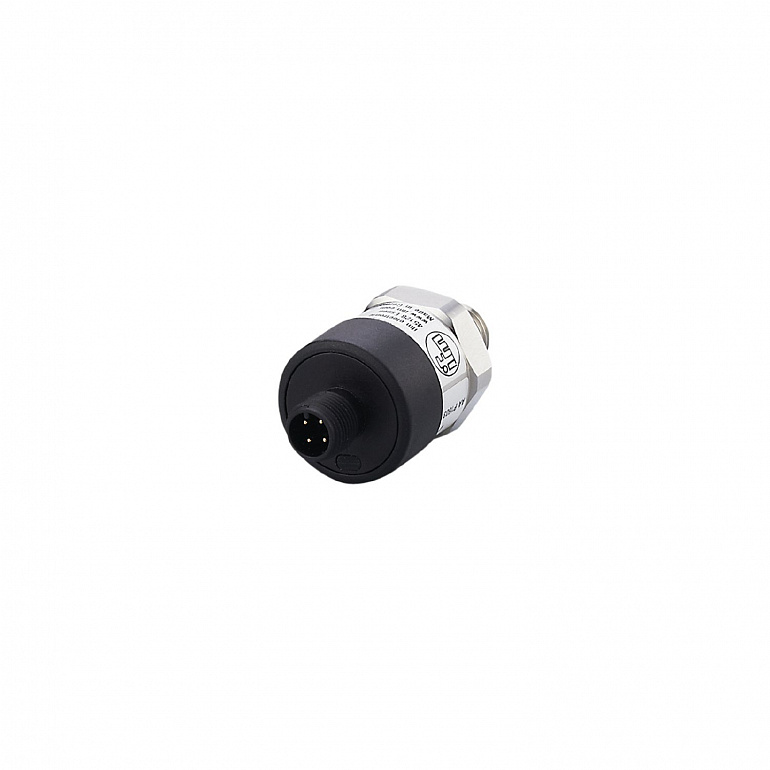

| Connection |
Connector: 1 x M12; coding: A |
