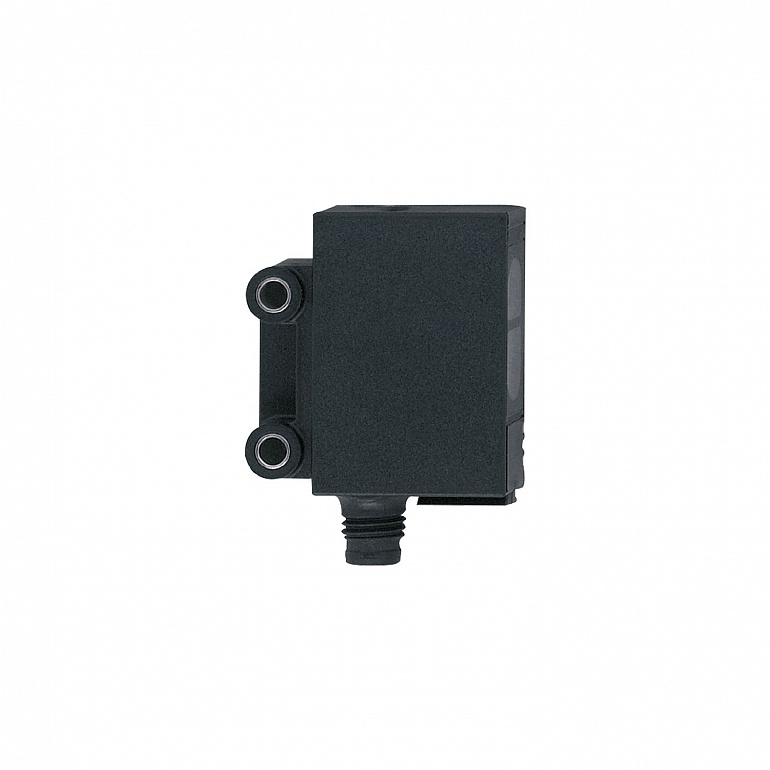

| Product characteristics |
|
| Type of light |
red light |
| Laser protection class |
1 |
| Housing |
rectangular |
| Application |
|
| System |
Background suppression |
| Function principle |
Diffuse reflection sensor |
| Electrical data |
|
| Operating voltage |
10...30 DC |
| Current consumption |
13 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length |
650 |
| Typ. lifetime |
50000 |
| Outputs |
|
| Electrical design |
PNP |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
1000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Monitoring range |
|
| Range |
7...150; (white paper 200 x 200 mm 90 % remission) |
| Range adjustable |
yes |
| Diameter of the smallest detectable object |
0.8 |
| Max. light spot diameter |
0.8 |
| Background suppression available |
yes |
| Operating conditions |
|
| Ambient temperature |
-10...60 |
| Protection |
IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 60947-5-2</td><td></td></tr></table> |
| Laser protection class |
1 |
| Notes on laser protection |
<table><tr><td>Caution:</td><td>Laser light</td></tr><tr><td>laser class:</td><td>1</td></tr><tr><td></td><td>EN / IEC60825-1:2007</td></tr><tr><td></td><td>EN / IEC60825-1:2014</td></tr><tr><td></td><td>Complies with 21 CFR 1040.10 except for conformance |
| MTTF |
501 |
| Mechanical data |
|
| Weight |
28.25 |
| Housing |
rectangular |
| Dimensions |
35 x 11 x 24 |
| Material |
housing: ABS; LED window: SEPS; pushbutton: SEPS |
| Lens material |
<table><tr><td>PMMA</td></tr></table> |
| Lens alignment |
Side sensing |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>1 x LED, yellow</td></tr><tr><td>Power</td><td>1 x LED, green</td></tr></table> |
| Electronic lock |
yes |
| Accessories |
|
| Items supplied |
<table><tr><td>screws: 2</td></tr><tr><td>spring washers: 2</td></tr><tr><td>Nuts: 2</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> cULus - Class 2 source required</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M8; coding: A |
