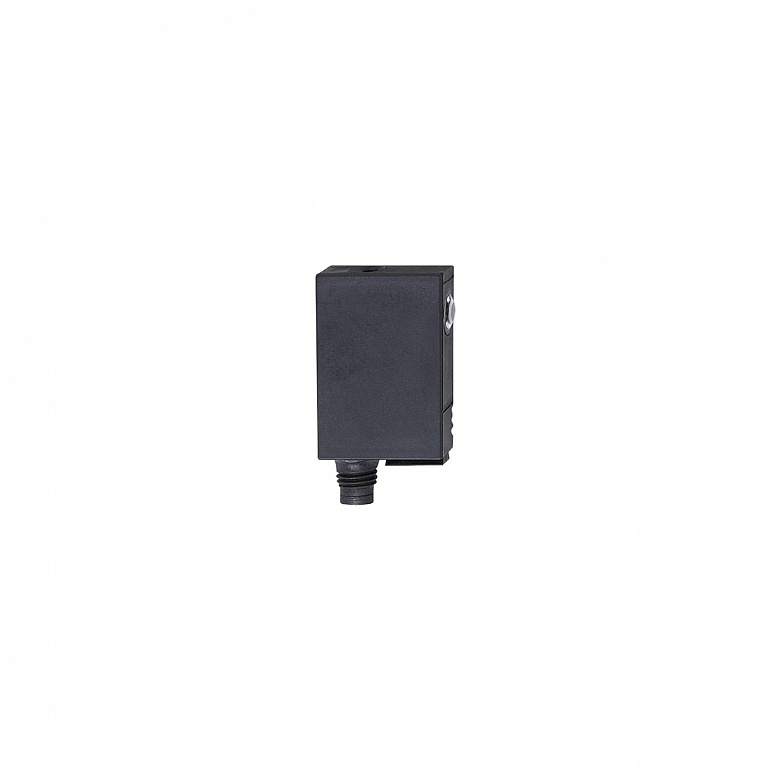

| Product characteristics |
|
| Type of light |
red light |
| Laser protection class |
1 |
| Housing |
rectangular |
| Application |
|
| Function principle |
Through-beam sensor |
| Electrical data |
|
| Operating voltage |
10...30 DC |
| Current consumption |
< 12 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length |
650 |
| Typ. lifetime |
50000 |
| Outputs |
|
| Overload protection |
yes |
| Monitoring range |
|
| Transmitter / receiver |
transmitter |
| Range |
< 15 |
| Range adjustable |
no |
| Max. light spot diameter |
24 |
| Light spot dimensions refer to |
at maximum range |
| Operating conditions |
|
| Ambient temperature |
-10...60 |
| Protection |
IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 60947-5-2</td><td></td></tr></table> |
| Laser protection class |
1 |
| Notes on laser protection |
<table><tr><td>Caution:</td><td>Laser light</td></tr><tr><td>laser class:</td><td>1</td></tr><tr><td></td><td>EN / IEC60825-1:2007</td></tr><tr><td></td><td>EN / IEC60825-1:2014</td></tr><tr><td></td><td>Complies with 21 CFR 1040.10 except for conformance |
| MTTF |
918 |
| Mechanical data |
|
| Weight |
27.2 |
| Housing |
rectangular |
| Dimensions |
35 x 11 x 24 |
| Material |
housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS |
| Lens material |
<table><tr><td>glass</td></tr></table> |
| Lens alignment |
Side sensing |
| Displays / operating elements |
|
| Display |
<table><tr><td>Power</td><td>1 x LED, green</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>screws: 2 x (M3 x 16 mm)</td></tr><tr><td>Basic clip: 1, E20964</td></tr><tr><td>spring washers: 2</td></tr><tr><td>Nuts: 2</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> cULus - Class 2 source required</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M8; coding: A |
