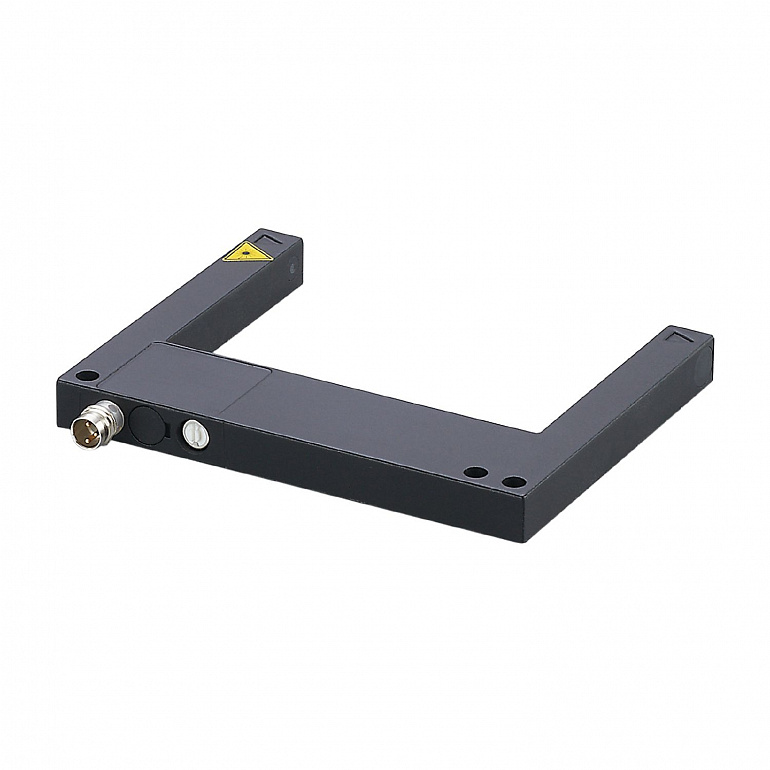

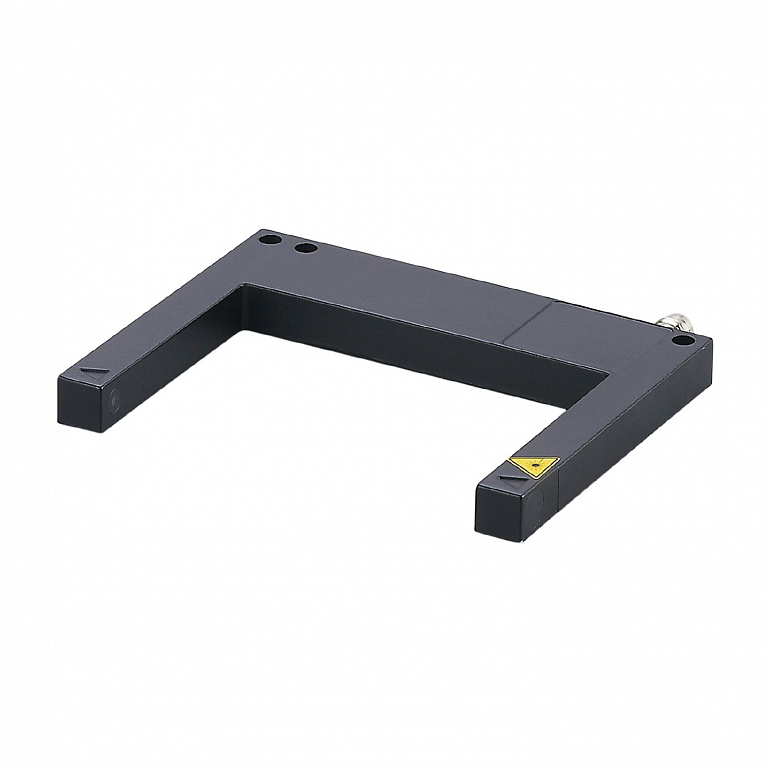

| Type of light |
red light |
| Laser protection class |
1 |
| Function principle |
Through-beam sensor |
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Insulation rating |
500 |
| Current consumption |
< 30 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
150 |
| Type of light |
red light |
| Wave length |
655 |
| Electrical design |
PNP/NPN; (configurable) |
| Output function |
light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC |
1 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
5000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Diameter of the smallest detectable object |
0.05 |
| Repeatability |
0.01 |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Multiple switching signal | | Function | Process data variable | | Function | Device diagnosis | | Function | Teach channel |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
3.2 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| process value | 16 | | device status | 4 | | binary switching information | 1 |
|
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; switching cycles counter; Min./Max. Signalspeicher; Operating mode |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1209 |
|
| Note |
| For further information please see the IODD PDF file at "Downloads" |
|
| Ambient temperature |
-25...60 |
| Protection |
IP 67 |
| EMC |
| DIN EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | DIN EN 61000-4-3 HF radiated | 10 V/m | | DIN EN 61000-4-4 Burst | 2 kV | | DIN EN 61000-4-6 HF conducted | 10 V | | DIN EN 55011 | class A |
|
| Vibration resistance |
| EN 60068-2-6 Fc | (10-55) Hz 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz |
|
| Shock resistance |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Laser protection class |
1 |
| Notes on laser protection |
| Caution: | Laser light | | laser class: | 1 | | EN / IEC60825-1:2007 | | EN / IEC60825-1:2014 | | Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
|
| MTTF |
548 |
| Weight |
144.5 |

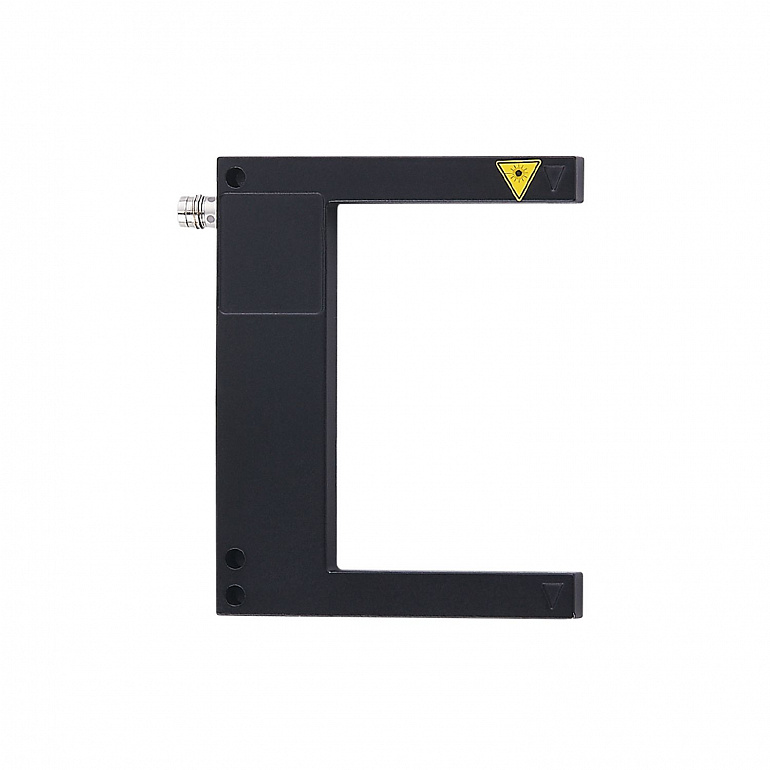

| Dimensions |
100 x 10 x 80 |
| Fork depth D |
55 |
| Fork width W |
80 |
| Material |
housing: diecast zinc powder-coated; lens: glass |
| Display |
| Switching status | 1 x LED, yellow |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M8; coding: A |
