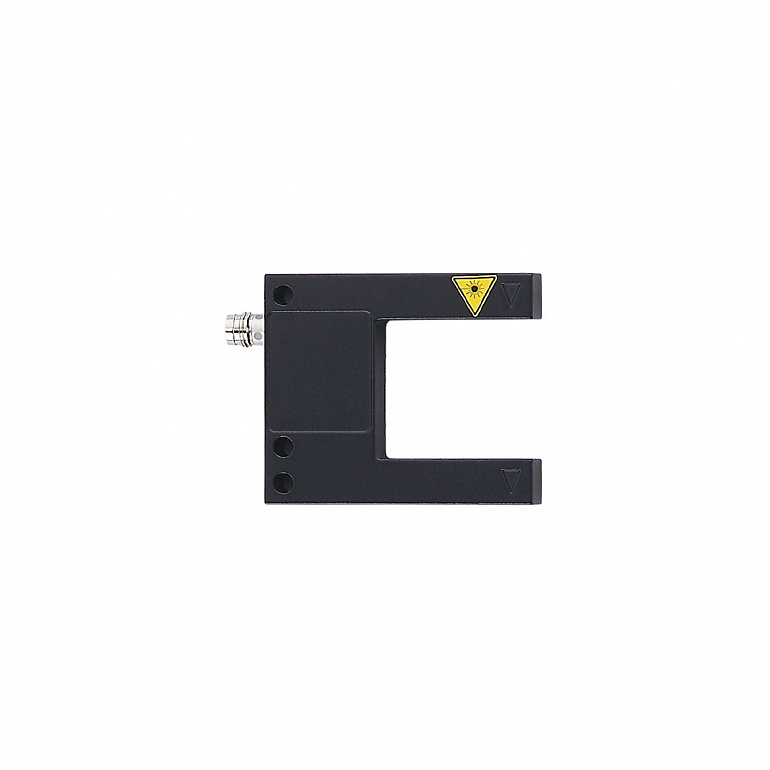

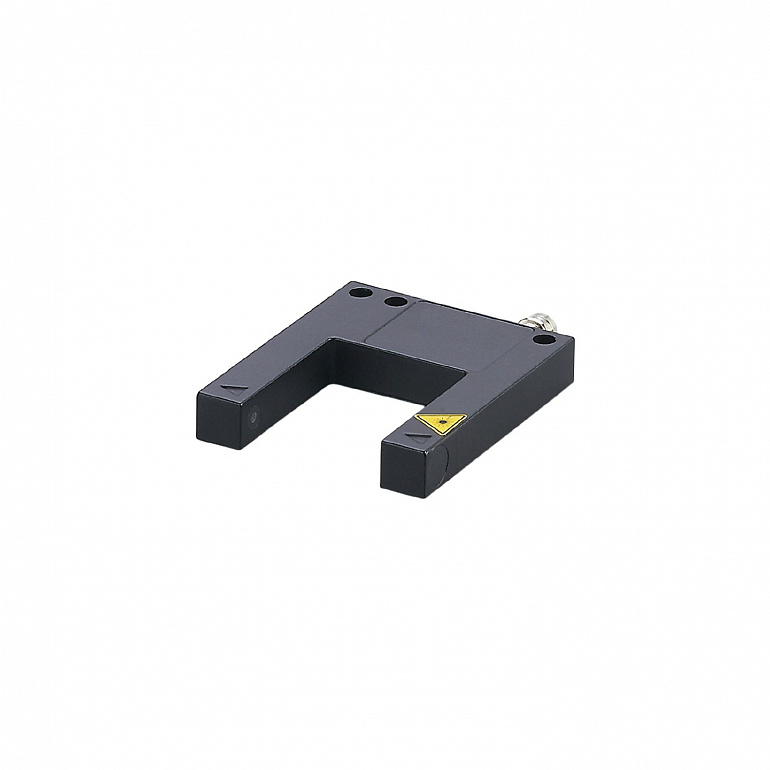

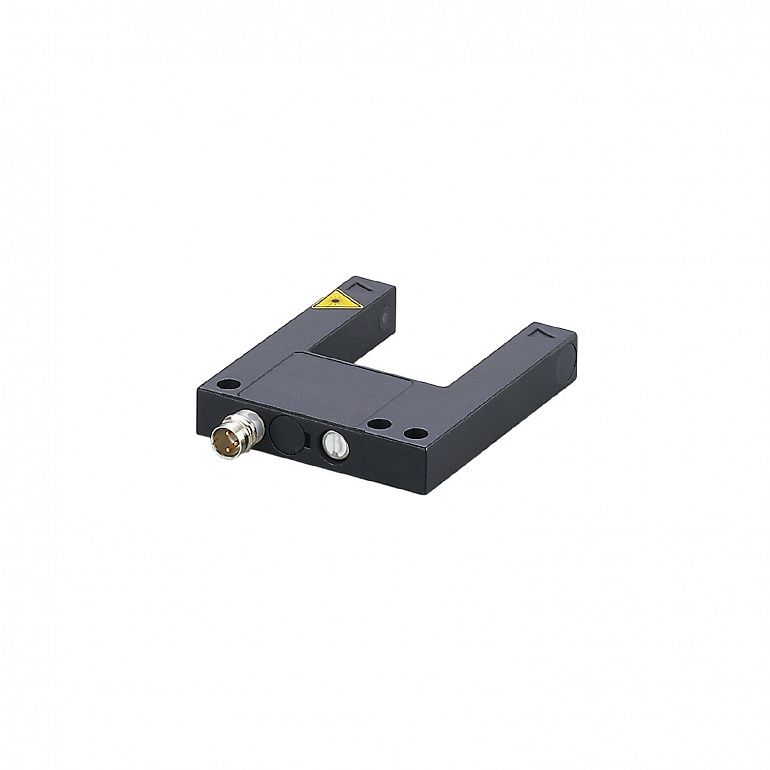

| Product characteristics |
|
| Type of light |
red light |
| Laser protection class |
1 |
| Application |
|
| Function principle |
Through-beam sensor |
| Electrical data |
|
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Insulation rating |
500 |
| Current consumption |
< 30 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
150 |
| Type of light |
red light |
| Wave length |
655 |
| Outputs |
|
| Electrical design |
PNP/NPN; (configurable) |
| Output function |
light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC |
1 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
5000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Monitoring range |
|
| Diameter of the smallest detectable object |
0.05 |
| Accuracy / deviations |
|
| Repeatability |
0.01 |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Multiple switching signal</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><t |
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
3.2 |
| IO-Link process data (cyclical) |
<table><tr><th>Function</th><th>bit length</th></tr><tr><td>process value</td><td>16</td></tr><tr><td>device status</td><td>4</td></tr><tr><td>binary switching information</td><td>1</td></tr></table> |
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; switching cycles counter; Min./Max. Signalspeicher; Operating mode |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1209</td></tr></table> |
| Note |
<table><tr><td> For further information please see the IODD PDF file at "Downloads"</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-25...60 |
| Protection |
IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-4-2 ESD</td><td>4 kV CD / 8 kV AD</td></tr><tr><td>DIN EN 61000-4-3 HF radiated</td><td>10 V/m</td></tr><tr><td>DIN EN 61000-4-4 Burst</td><td>2 kV</td></tr><tr><td>DIN EN 61000-4-6 HF conducted</td><td>10 V</td></tr><tr><td>DI |
| Vibration resistance |
<table><tr><td>EN 60068-2-6 Fc</td><td>(10-55) Hz 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz</td></tr></table> |
| Shock resistance |
<table><tr><td>EN 60068-2-27 Ea</td><td>30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes</td></tr></table> |
| Laser protection class |
1 |
| Notes on laser protection |
<table><tr><td>Caution:</td><td>Laser light</td></tr><tr><td>laser class:</td><td>1</td></tr><tr><td></td><td>EN / IEC60825-1:2007</td></tr><tr><td></td><td>EN / IEC60825-1:2014</td></tr><tr><td></td><td>Complies with 21 CFR 1040.10 except for conformance |
| MTTF |
548 |
| Mechanical data |
|
| Weight |
81.5 |
| Dimensions |
50 x 10 x 60 |
| Fork depth D |
35 |
| Fork width W |
30 |
| Material |
housing: diecast zinc powder-coated; lens: glass |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>1 x LED, yellow</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M8; coding: A |
