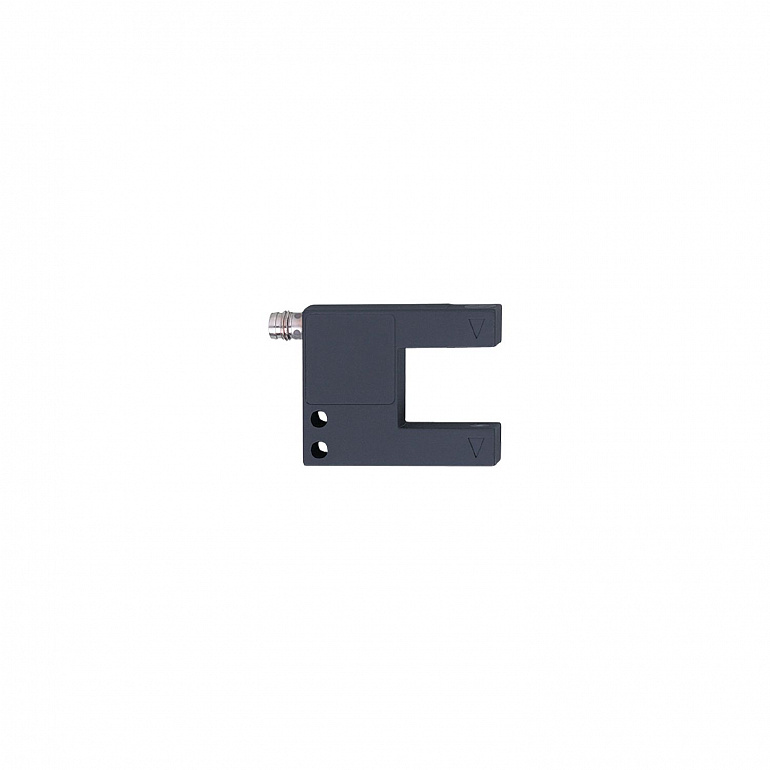

| Product characteristics |
|
| Type of light |
red light |
| Electrical data |
|
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Current consumption |
< 30 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length |
660 |
| Outputs |
|
| Electrical design |
NPN |
| Output function |
light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC |
1 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
5000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Monitoring range |
|
| Diameter of the smallest detectable object |
0.3 |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Multiple switching signal</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><t |
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
3.2 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1103</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-25...60 |
| Protection |
IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 60947-5-2</td><td></td></tr></table> |
| MTTF |
709 |
| Mechanical data |
|
| Weight |
75 |
| Dimensions |
40 x 10 x 50 |
| Fork depth D |
25 |
| Fork width W |
20 |
| Material |
housing: diecast zinc black anodized; lens: glass |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>1 x LED, yellow</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> cULus - Class 2 source required</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M8; coding: A |
