| Type of light |
red light |
| Housing |
rectangular |
| System |
gold-plated contacts; Background suppression |
| Function principle |
Diffuse reflection sensor |
| Operating voltage |
10...30 DC |
| Current consumption |
25 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length |
660 |
| Electrical design |
PNP |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
1000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Range |
15...400; (white paper 200 x 200 mm 90 % remission) |
| Range adjustable |
yes |
| Max. light spot diameter |
18 |
| Light spot dimensions refer to |
Range |
| Background suppression available |
yes |
| Ambient temperature |
-25...60 |
| Protection |
IP 67 |
| EMC |
|
| MTTF |
556 |
| Weight |
40.9 |
| Housing |
rectangular |
| Dimensions |
35 x 24 x 11 |
| Material |
housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS |
| Lens material |
|
| Lens alignment |

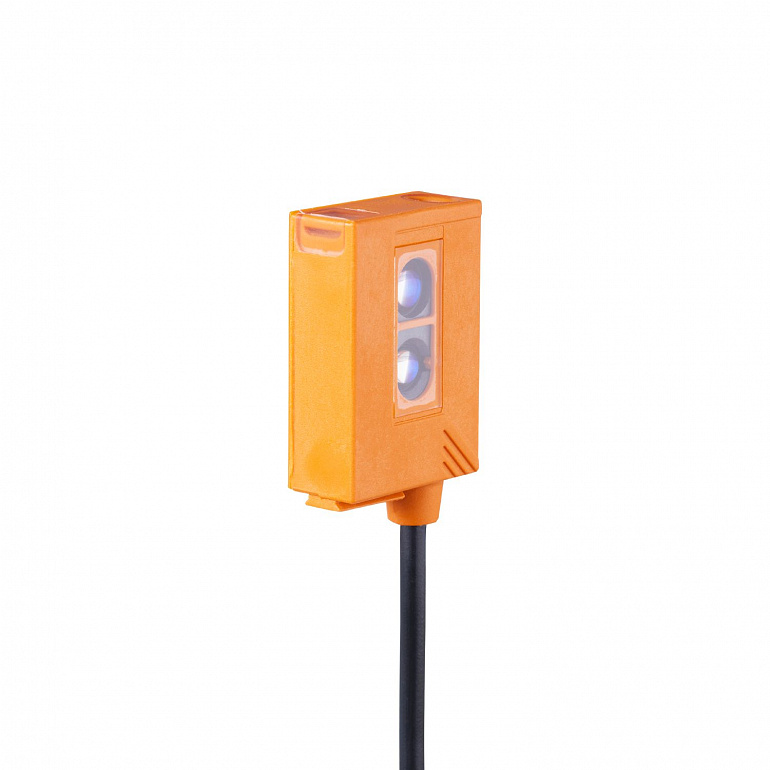

Front sensing |
| Display |
| Switching status | 1 x LED, yellow | | Power | 1 x LED, green |
|
| Electronic lock |
yes |
| Items supplied |
| Basic clip: 1, E20964 | | screws: 2 x (M3 x 16 mm) | | spring washers: 2 | | Nuts: 2 |
|
| Remarks |
| cULus - Class 2 source required |
|
| Pack quantity |
1 pcs. |
| Connection |

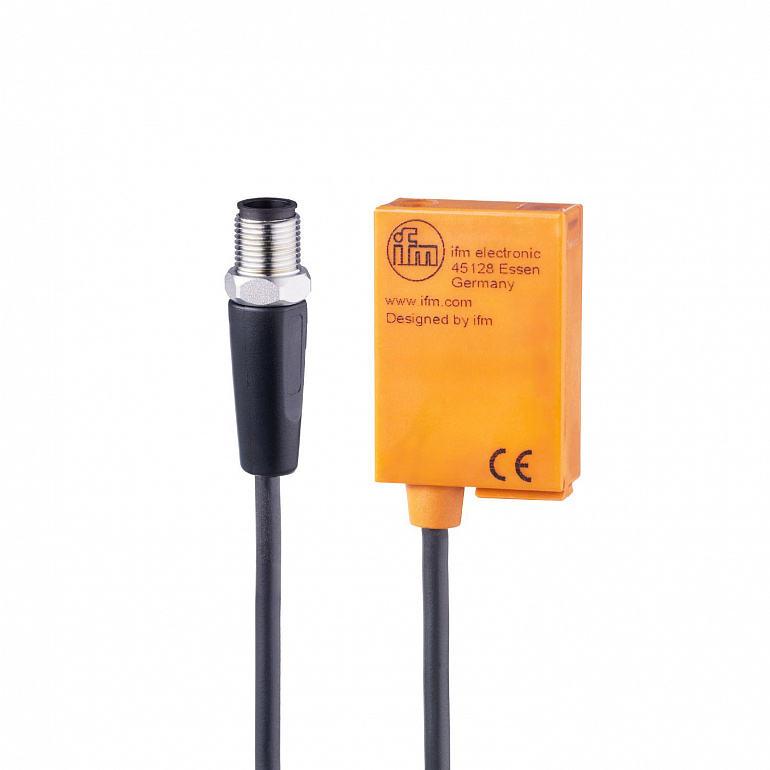

Connector: 1 x M12; coding: A; Moulded body: Hytrel 8068; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated |
