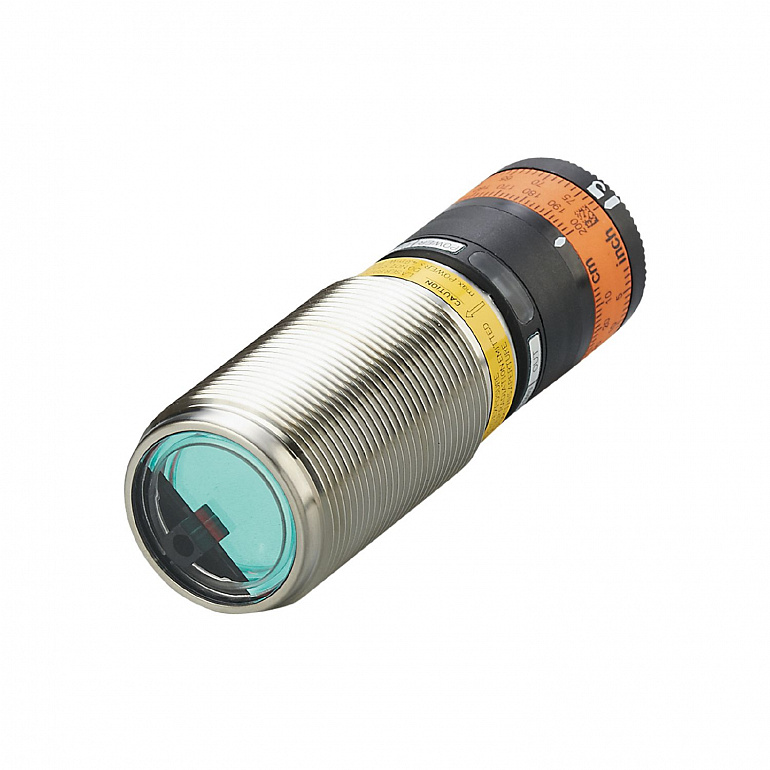

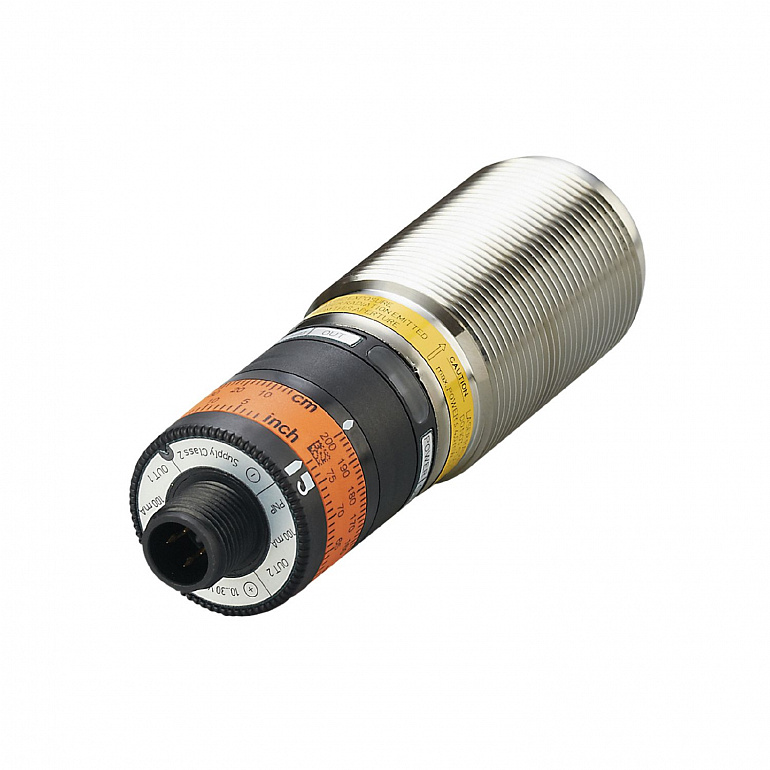

| Type of light |
red light |
| Laser protection class |
2 |
| Housing |
Threaded type |
| System |
Background suppression |
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Current consumption |
75; (24 V) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length |
650 |
| Typ. lifetime |
50000 |
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Total number of outputs |
2 |
| Electrical design |
PNP |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (complementary) |
| Max. current load per output |
100 |
| Switching frequency DC |
11 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Max. light spot diameter |
5 |
| Light spot dimensions refer to |
2 m |
| Detection range hysteresis |
< 2 |
| Note on monitoring range hysteresis |
|
| Background suppression available |
yes |
| Background suppression |
< 20 |
| Measuring range |
0.03...2 |
| Sampling rate |
33 |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Multiple switching signal | | Function | Process data variable |
|
| SIO mode |
yes |
| Process data analog |
1 |
| Process data binary |
1 |
| Min. process cycle time |
6.4 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 373 |
|
| Ambient temperature |
-25...60 |
| Note on ambient temperature |
| at ta < -10 °C warm-up is necessary, laser is off |
|
| Protection |
IP 65; IP 67 |
| Max. immunity to extraneous light |
10; (on the object) |
| EMC |
|
| Laser protection class |
2 |
| Notes on laser protection |
| Caution: | Laser light | | Power: | <= 4,0 mW | | Wave length: | 650 nm | | pulse: | 1,3 ns | | Do not stare into beam. | | | Avoid exposure to the laser light. | | | laser class: | 2 | | EN / IEC60825-1:2007 | | EN / IEC60825-1:2014 | | Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
|
| MTTF |
239 |
| Weight |
207 |
| Housing |
Threaded type |
| Dimensions |
M30 x 1.5 / L = 100 |
| Thread designation |
M30 x 1.5 |
| Material |
housing: stainless steel; front lens: PMMA; LED window: PC; PBT; PC; FKM |

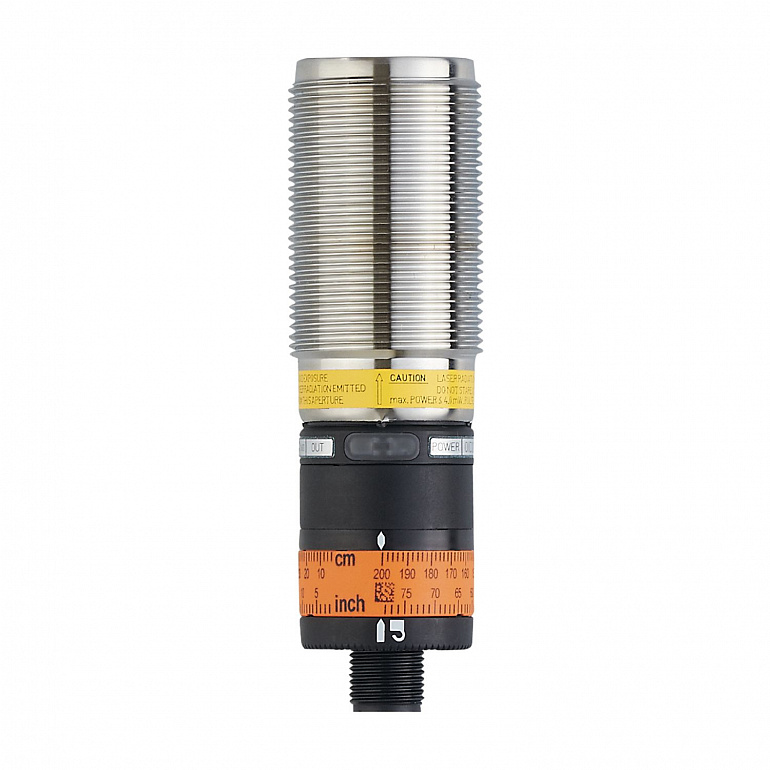

| Display |
| Switching status | LED, yellow Switching output PIN 4 | | Power | LED, green |
|
| With scale |
yes |
| Display unit |
cm; inch |
| Operating elements |
|
| Items supplied |
| lock nuts: 2 x M30, stainless steel |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
