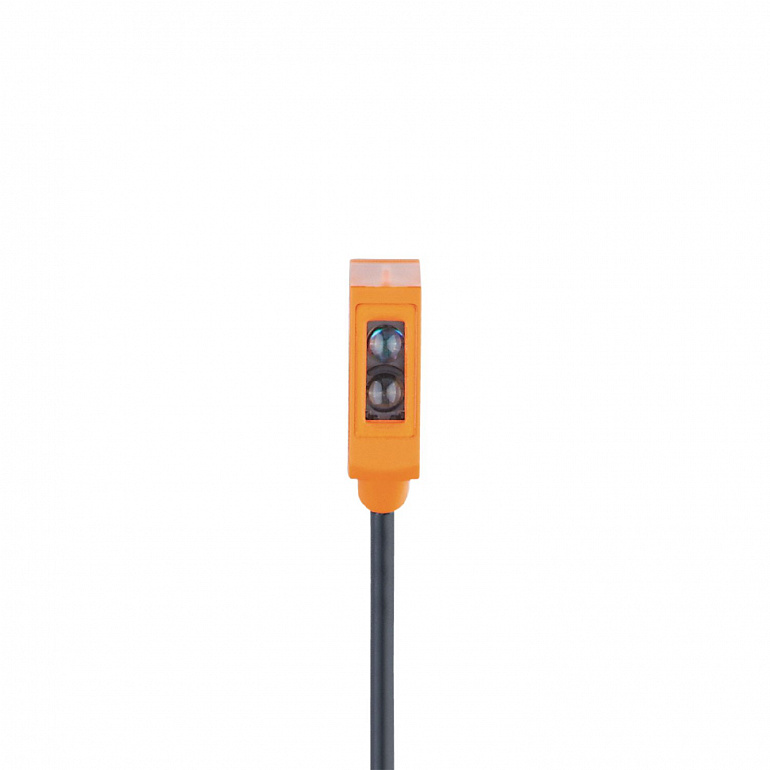

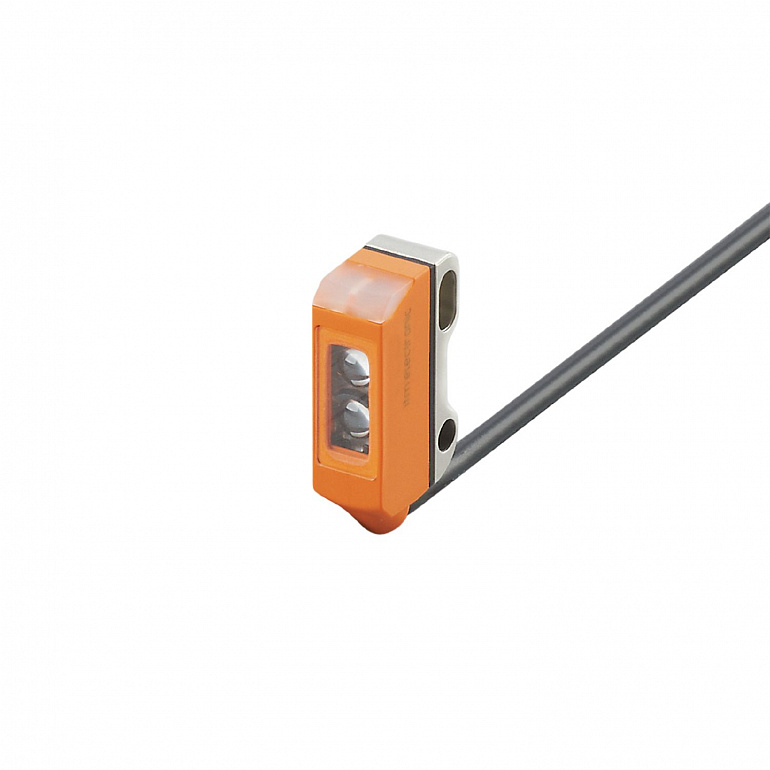

| Type of light |
red light |
| Housing |
rectangular |
| System |
polarization filter |
| Function principle |
Retro-reflective sensor |
| Operating voltage |
10...30 DC |
| Current consumption |
20; ((24 V)) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length |
633 |
| Electrical design |
PNP |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
1000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Range referred to prismatic reflector |
0.02...1.8; (Prismatic reflector Ø 30 E20004) |
| Range adjustable |
yes |
| Max. light spot diameter |
120 |
| Light spot dimensions refer to |
at maximum range |
| Polarization filter available |
yes |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Multiple switching signal | | Function | Device diagnosis | | Function | Teach channel |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
2.5 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| process value | 8 | | device status | 4 | | binary switching information | 1 |
|
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; switching cycles counter |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 786 |
|
| Ambient temperature |
-25...60 |
| Protection |
IP 65; IP 67 |
| EMC |
|
| MTTF |
1054 |
| UL approval |
| Ta | -25...60 °C | | Enclosure type | Type 1 | | voltage supply | Limited Voltage/Current | | UL approval number | E016 | | File number UL | E174191 |
|
| Weight |
38.3 |
| Housing |
rectangular |
| Dimensions |
28.1 x 8.1 x 14.4 |
| Material |

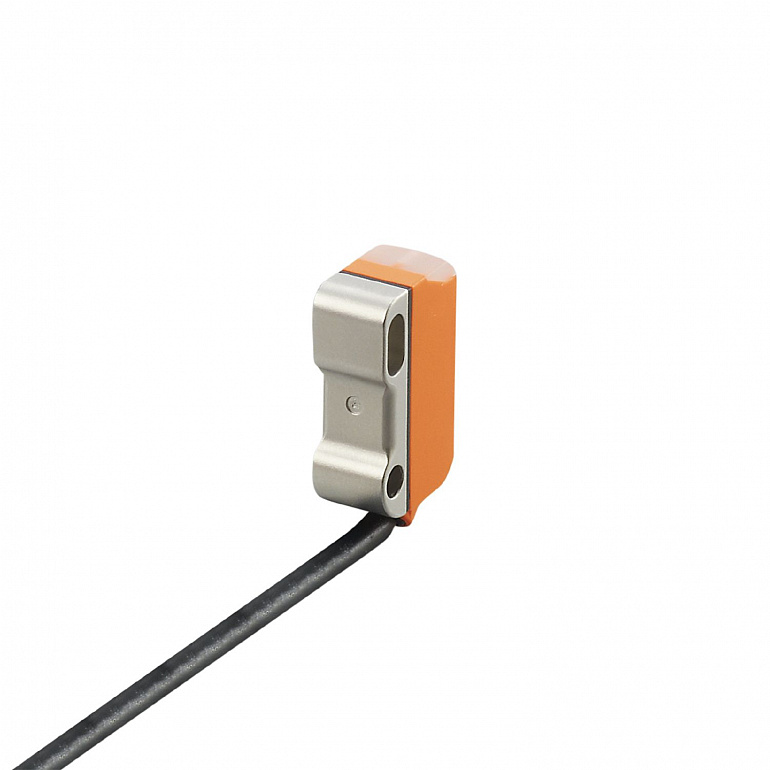

housing: ABS; rear of the housing: stainless steel (1.4404 / 316L) |
| Lens material |
|
| Lens alignment |
Side sensing |
| Display |
| Switching status | 1 x LED, yellow | | Power | 1 x LED, green |
|
| Pack quantity |
1 pcs. |
| Connection |
Cable: 2 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm² |
