Характеристики
| Transmitter / receiver | transmitter |
| Range | 0...1.5 |
| Dimensions | 20.3 x 15 x 9 |

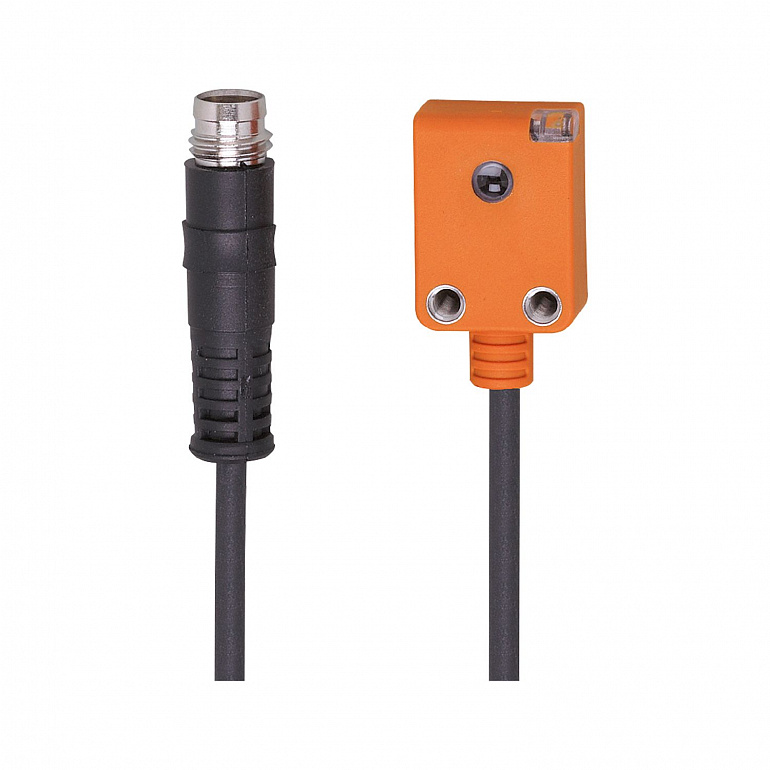

| Product designation | Through-beam sensor |
Все характеристики
| Type of light | red light | ||
| Housing | rectangular | ||
| Function principle | Through-beam sensor | ||
| Operating voltage | 10...30 DC | ||
| Current consumption | 20; ((24 V)) | ||
| Protection class | III | ||
| Reverse polarity protection | yes | ||
| Type of light | red light | ||
| Wave length | 633 | ||
| Switching frequency DC | 1000 | ||
| Transmitter / receiver | transmitter | ||
| Range | 0...1.5 | ||
| Range adjustable | no | ||
| Max. light spot diameter | 90 | ||
| Light spot dimensions refer to | at maximum range | ||
| Ambient temperature | -25...60 | ||
| Protection | IP 65 | ||
| EMC |
|
||
| MTTF | 1899 | ||
| Weight | 14.2 | ||
| Housing | rectangular | ||
| Dimensions | 20.3 x 15 x 9 | ||
| Material | PA | ||
| Lens material |
|
||
| Lens alignment | Side sensing | ||
| Tightening torque | 0.5 | ||
| Display |
|
||
| Remarks |
|
||
| Pack quantity | 1 pcs. | ||
| Connection | Connector: 1 x M8; coding: A; Locking: snap-fit |
Приемущества
| Particularly small housing for use where space is restricted |
| For the reliable position detection in feeding and handling technology |
| Small light spot and narrow light cone for detecting of small objects |
| Ready for operation immediately thanks to fixed setting |
| Visible red light for simple alignment |
