| Type of light |
red light |

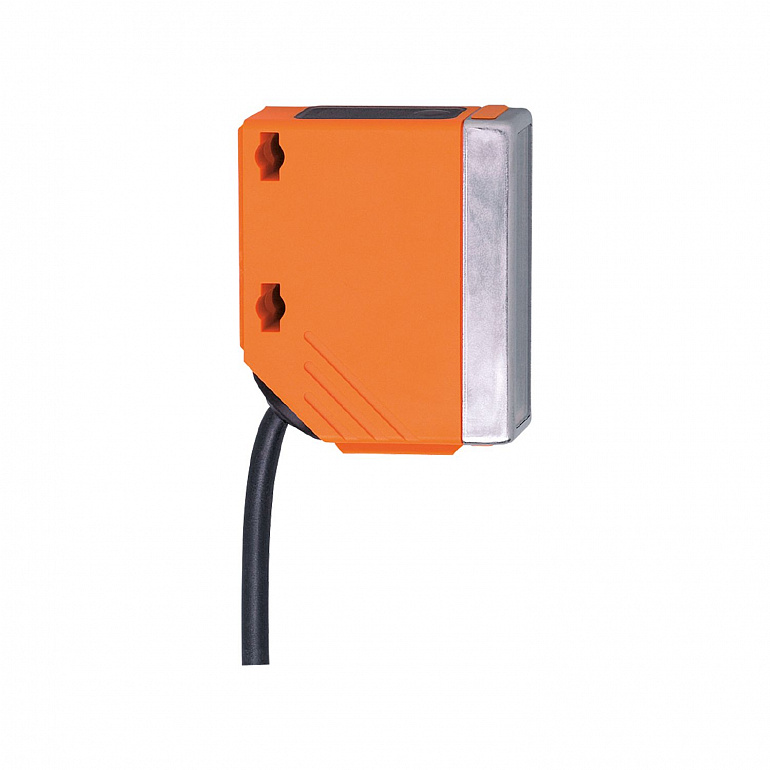

| Housing |
rectangular |
| Function principle |
Through-beam sensor |
| Operating voltage |
10...36 DC |
| Current consumption |
11 |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length |
624 |
| Electrical design |
PNP |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
1000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Transmitter / receiver |
receiver |
| Range |
< 25 |
| Range adjustable |
yes |
| Ambient temperature |
-25...60 |
| Protection |
IP 67 |
| EMC |
|
| MTTF |
801 |
| Weight |
141.5 |
| Housing |
rectangular |
| Dimensions |
56 x 18.2 x 46.8 |
| Material |
housing: PA; Front framework: stainless steel; operator interface: TPU (urethane) |
| Lens material |
|
| Lens alignment |
Side sensing |
| Display |
| Switching status | 1 x LED, yellow |
|
| Teach function |
yes |
| Electronic lock |
yes |
| Remarks |
| cULus - Class 2 source required |
|
| Pack quantity |
1 pcs. |
| Connection |
Cable: 2 m, PUR; 3 x 0.34 mm² |
