Характеристики
| Fiber material | glass |
| Total length | 900 |

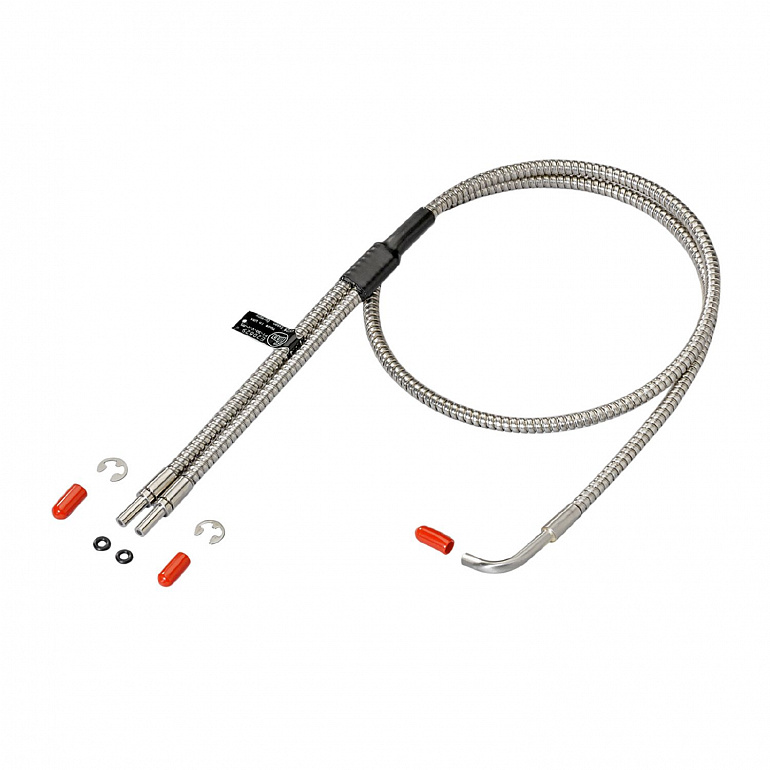

| Product designation | Diffuse reflection sensor |
| Fiber sheath material | stainless steel (1.4305 / 303) |
| Fiber head material | stainless steel (1.4305 / 303) |
Все характеристики
| Function principle | Diffuse reflection sensor |
| Range with fiber optic amplifier type | OBF; ODF; OMF |
| Range fiber optics | 150 |
| Range fiber optics | 1 |
| Range fiber optics | 175 |
| Ambient temperature | -58...315 |
| Weight | 112 |
| Version of sensing head | angled |
| Sensing head diameter | 5 |
| Sensing head length | 20 |
| Total length | 900 |
| Min. bending radius | 19 |
| Fiber material | glass |
| Fiber head material | stainless steel (1.4305 / 303) |
| Fiber sheath material | stainless steel (1.4305 / 303) |
| Pack quantity | 1 pcs. |
Приемущества
| For applications in high-temperature areas |
| Stainless steel sheathing for use up to 315 °C |
| Angled type for use where space is restricted |
| Long range |
| Small bending radius |
