Характеристики
| Fiber material | PMMA |
| Total length | 2000 |
| Product designation | Diffuse reflection sensor |
| Fiber sheath material | PE |
| Fiber head material | stainless steel (1.4305 / 303) |
Все характеристики
| Function principle | Diffuse reflection sensor | |
| Application | For use in industrial environments | |
| Range with fiber optic amplifier type | OB50; OBF; OCF; OO50 | |
| Range fiber optics | 40 | |
| Range fiber optics | 60 | |
| Range fiber optics | 420 | |
| Range fiber optics | 150 | |
| Ambient temperature | -40...70 | |
| Weight | 52 | |

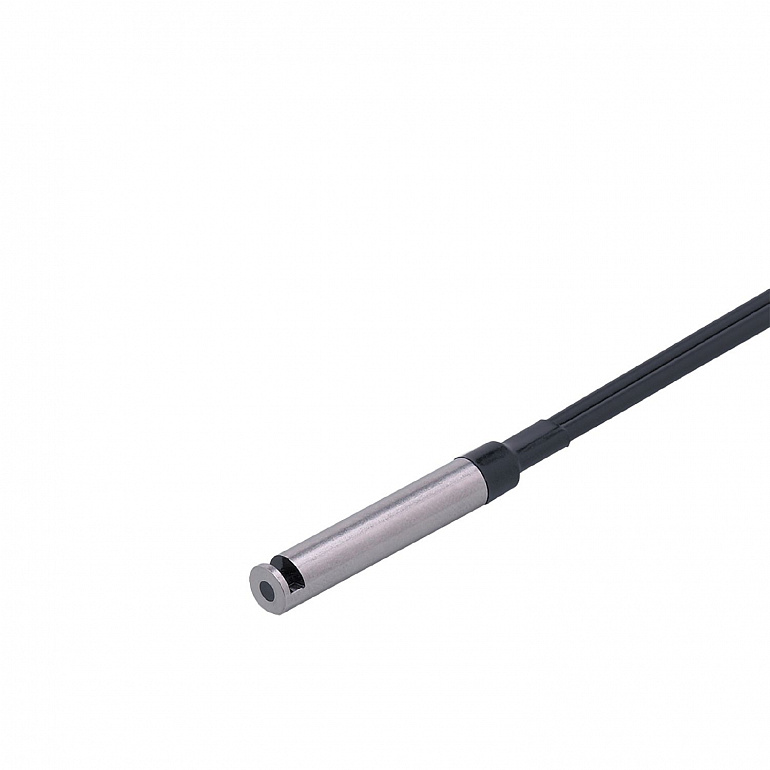

| Version of sensing head | angled | |
| Sensing head diameter | 6 | |
| Sensing head length | 35 | |
| Total length | 2000 | |
| Min. bending radius | 25 | |
| Fiber material | PMMA | |
| Fiber head material | stainless steel (1.4305 / 303) | |
| Fiber sheath material | PE | |
| Items supplied |
|
|
| Pack quantity | 1 pcs. |
Приемущества
| For installation with limited mounting space |
| Operation as diffuse reflection sensor |
| With 90° deflection of the light beam for use where space is limited |
| For cutting to size |
| Small bending radius |
