| Type of light |
Infrared light |
| Housing |
rectangular |
| Design |

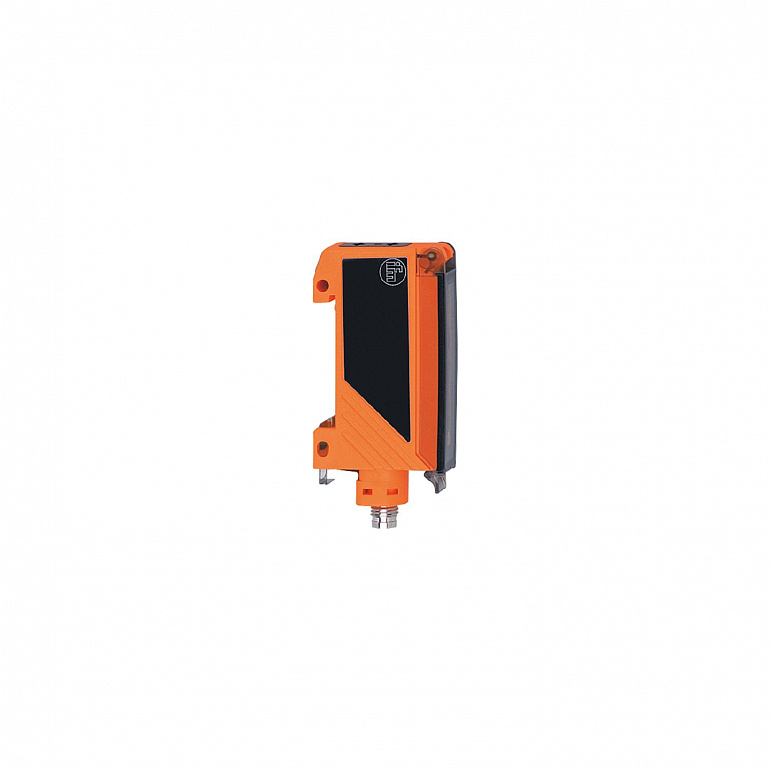

Fiber optic amplifiers for glass fibers, Type OBF, for fibers with metal sheath, FE/FT-50 |
| Operating voltage |
10...30 DC |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
Infrared light |
| Wave length |
880 |
| Electrical design |
PNP/NPN; (Automatic load detection PNP/NPN) |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
500 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Time function |
0.001...0.09 |
| Range |
0...40; (Diffuse reflection sensor) |
| Factory setting |
| dark-on mode | | Range: 0...400 mm | | Range: 0...40 mm |
|
| Range adjustable |
yes |
| Ambient temperature |
-25...60 |
| Protection |
IP 65 |
| EMC |
|
| MTTF |
860 |
| Weight |
47.8 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
36 x 15 x 60 |
| Number of channels |
1 |
| Material |
housing: PPE modified |
| Display |
| Switching status | 1 x LED, yellow | | Power | 1 x LED, green | | Unsafe zone | 1 x LED, red | | Excess gain | 4 x LED, green |
|
| Remarks |
| light-on mode corresponds to the NC output function for through-beam fibers | | corresponds to the NO output function for diffuse-reflection fibers | | dark-on mode corresponds to the NO output function for through-beam fibers | | corresponds to the NC output function for diffuse-reflection fiber optics |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M8; coding: A |
