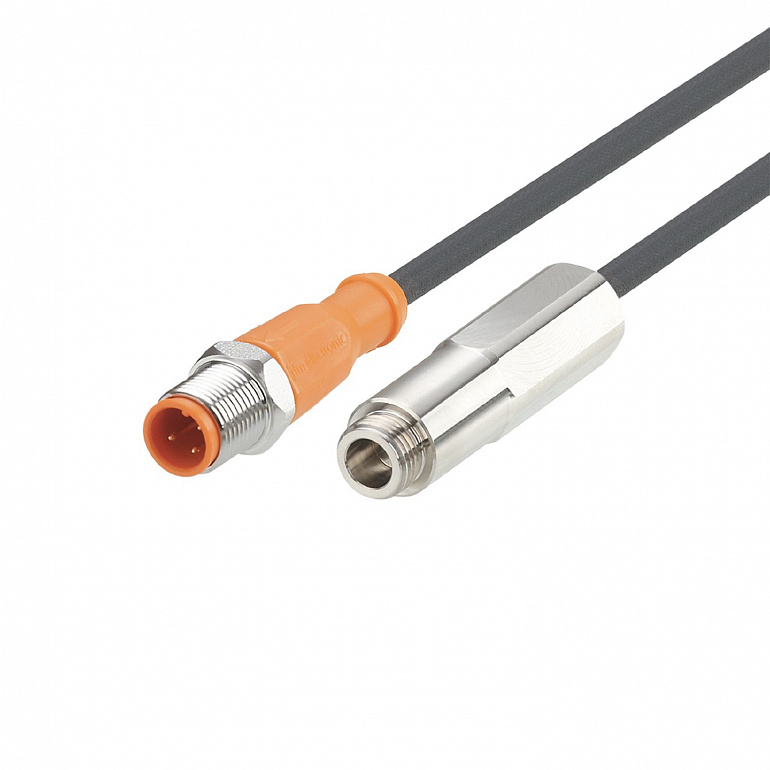

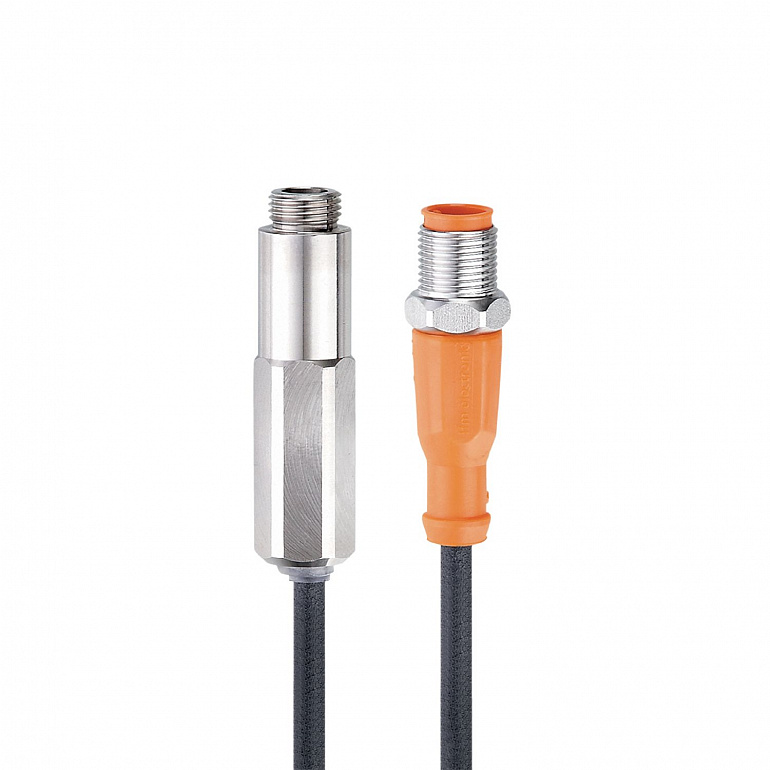

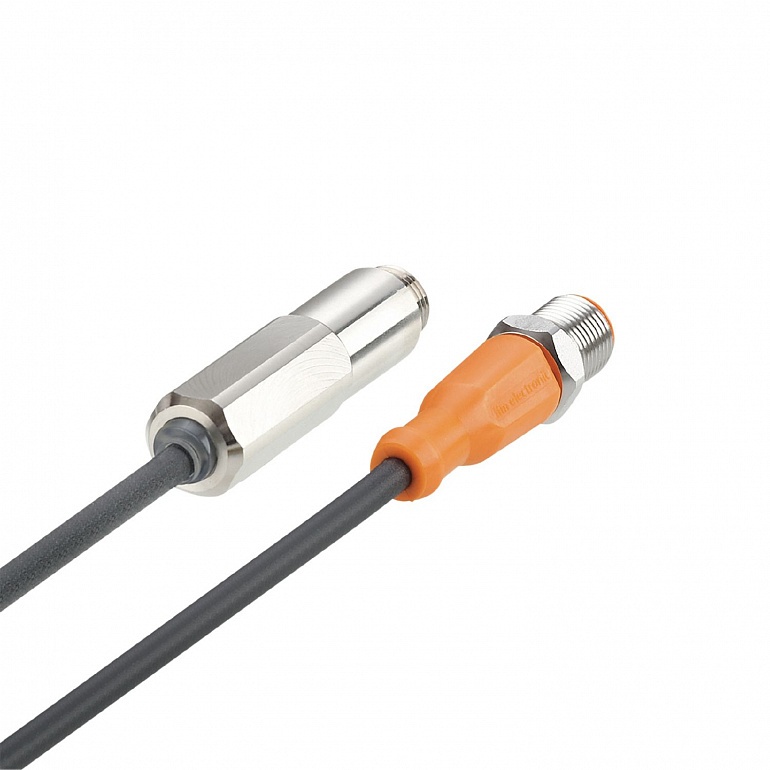

| Electrical design |
PNP |
| Output function |
normally open |
| Housing |
tubular |
| Dimensions |
Ø 13.8 / L = 56.5 |
| Application |
lubricant distributor with plunger |
| Media |
Detects ferrous metals |
| Min. bursting pressure |
200 |
| Pressure rating |
|
| Operating voltage |
10...60 DC |
| Rated insulation voltage |
60 |
| Current consumption |
< 20 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
300 |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
2.5 |
| Max. leakage current |
0.1 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
50 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Real sensing range Sr |
2 ± 10 % |
| Operating distance |
0...1.62 |
| Hysteresis |
3...15 |
| Ambient temperature |
-40...85 |
| Note on ambient temperature |
| Operating voltage: <45V | | for flexibly laid cable: -25 °C | | firmly laid cable: -40 °C |
|
| Protection |
IP 65; IP 67 |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m 80...2000 MHz | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V 0,15...80 MHz | | EN 61000-4-8 | 30 A/m | | EN 55011 | class B | | Noise emission and noise immunity according to the automotive directive 95/54/EC | E1 type approval | | conducted interference in 24 V networks to ISO 7637-2: 2004 (pulse 1 to 4) | | | pulse | 1 2a 2b 3a 3b 4 | | Severity level | III III III III III III | | Failure criterion | C B C A A C |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 50x 20 g / 10...3000 Hz -20 °C | | EN 60068-2-6 Fc | 50x 20 g / 10...3000 Hz +50 °C |
|
| Shock resistance |
| EN 60068-2-27 Ea | 3 x 100 g 11 ms / -25 °C | | EN 60068-2-27 Ea | 3 x 100 g 11 ms / +85 °C |
|
| Continuous shock resistance |
| EN 60068-2-27 Ea | 4000 x 40 g 6 ms / -20 °C / 50 °C |
|
| MTTF |
1181 |
| Weight |
78.9 |
| Housing |
tubular |
| Mounting |
flush mountable |
| Dimensions |
Ø 13.8 / L = 56.5 |
| Material |
sensing face: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L); end cap: TPU (urethane) |
| Tightening torque |
< 18 |
| Process connection |
threaded connection M11 x 1 external thread |
| Display |
| Switching status | LED, yellow |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: A |
