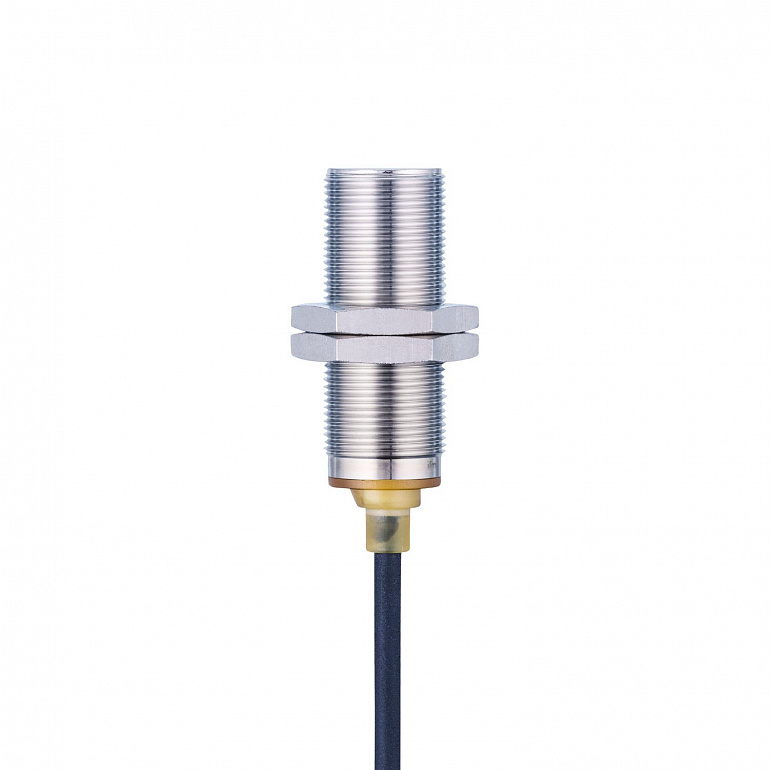

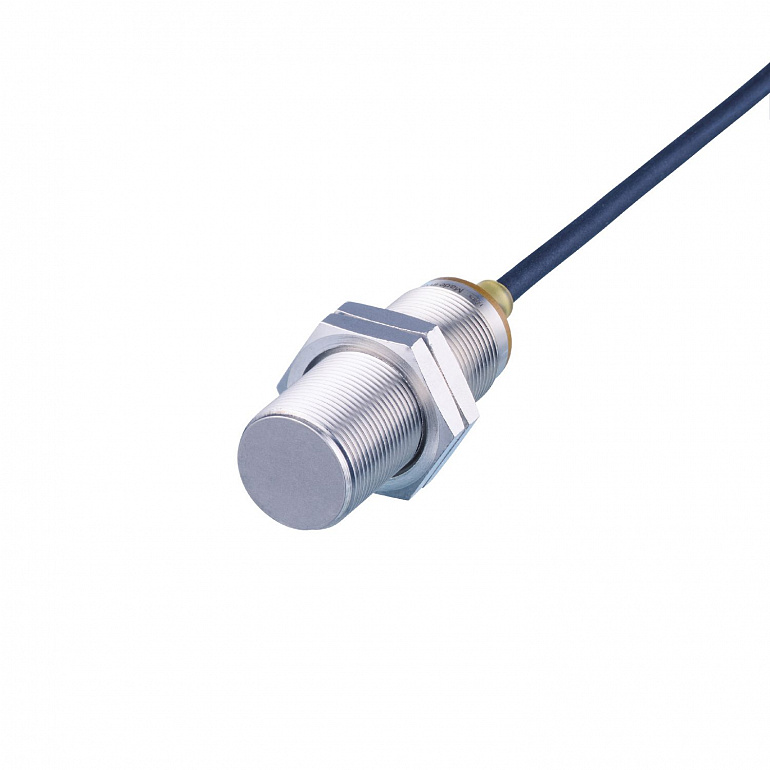

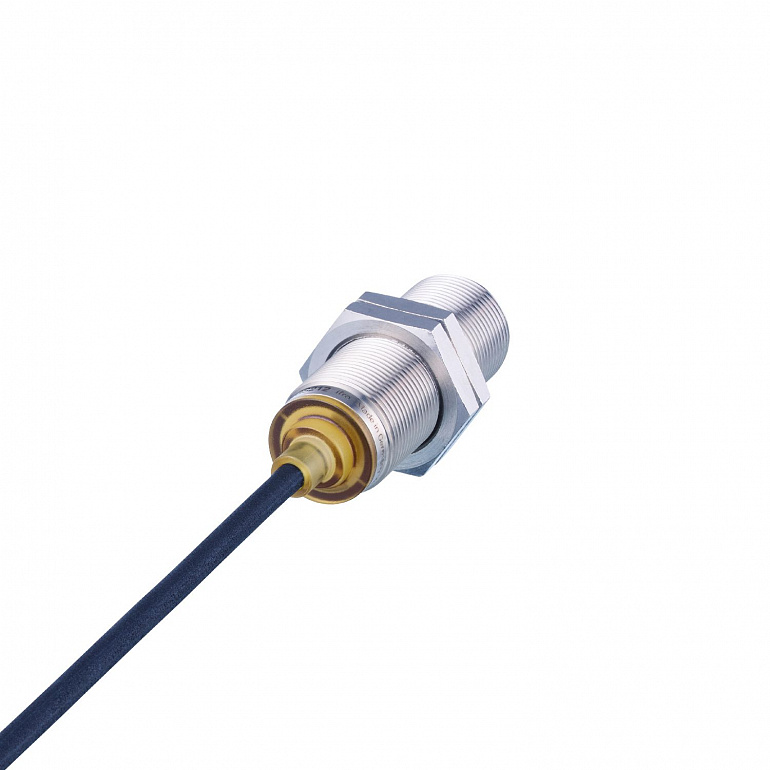

| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range |
70; (referred to magnet M 4.0) |
| Housing |
Threaded type |
| Dimensions |
M18 x 1 / L = 50 |
| System |
Full-metal housing |
| Pressure rating |
20 |
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Rated insulation voltage |
60 |
| Current consumption |
< 10 |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
50 |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
5000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Sensing range |
70; (referred to magnet M 4.0) |
| Magnetic sensitivity |
0.8 |
| Hysteresis |
1...10 |
| Switch-point drift |
< 10 |
| Repeatability |
< 10 |
| Ambient temperature |
-25...75 |
| Protection |
IP 67 |
| Degree of soiling |
3 |
| EMC |
| EN 61000-4-2 | 4 kV CD / 8 kV AD | | EN 61000-4-3 | 10 V/m | | EN 61000-4-4 | 2 kV | | EN 61000-4-5 | 0,5 kV line to line, Ri: 2 Ohm | | EN 61000-4-6 | 10 V | | EN 55011 | class B | | DIN ISO 11452-2 | 100 V/m |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 20 g 50 sweep cycles per frequency; 1 octave per minute in 3 axes / 10...3000 Hz |
|
| Shock resistance |
| EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Salt spray test |
| EN 60068-2-52 Kb | severity level 5 (4 test cycles) |
|
| MTTF |
1445 |
| UL approval |
| Ta | -25...70 °C | | Enclosure type | Type 1 | | UL approval number | C024 | | File number UL | E174191 |
|
| Weight |
90.05 |
| Housing |
Threaded type |
| Dimensions |
M18 x 1 / L = 50 |
| Thread designation |
M18 x 1 |
| Material |
housing: stainless steel (316L / 1.4404); cable plug: PEI; lock nuts: brass |
| Full-metal housing |
yes |
| Display |
| Switching status | 1 x LED, yellow |
|
| Items supplied |
|
| Remarks |
| voltage supply to EN50178, SELV, PELV |
|
| Pack quantity |
1 pcs. |
| Connection |
Cable: 2 m, PUR; 3 x 0.34 mm² |
