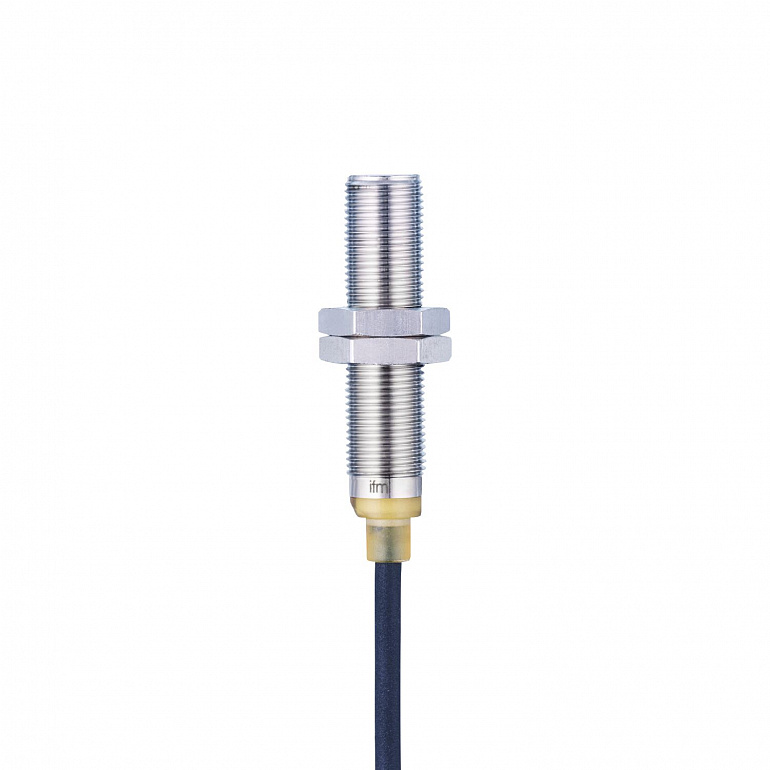

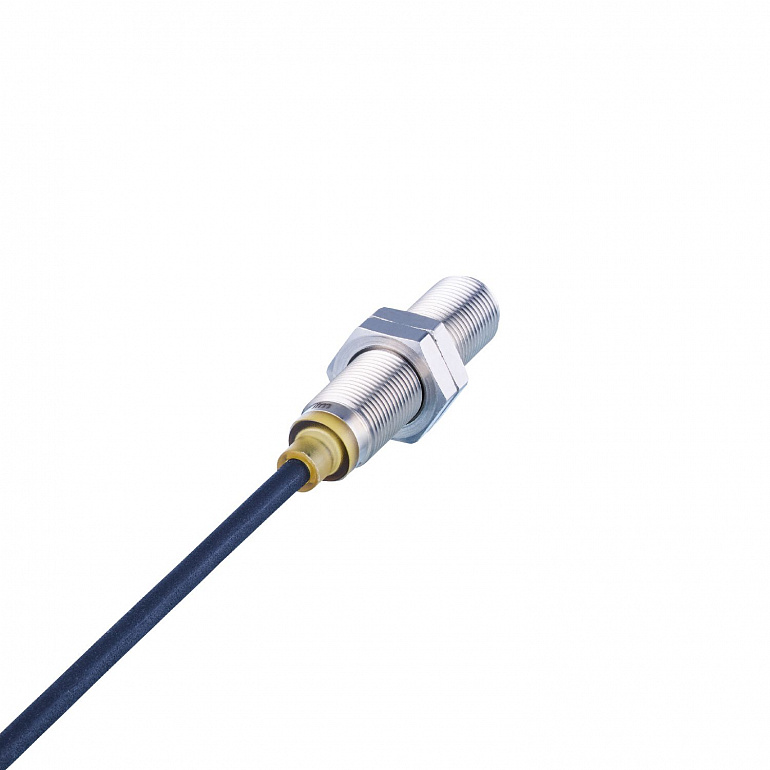

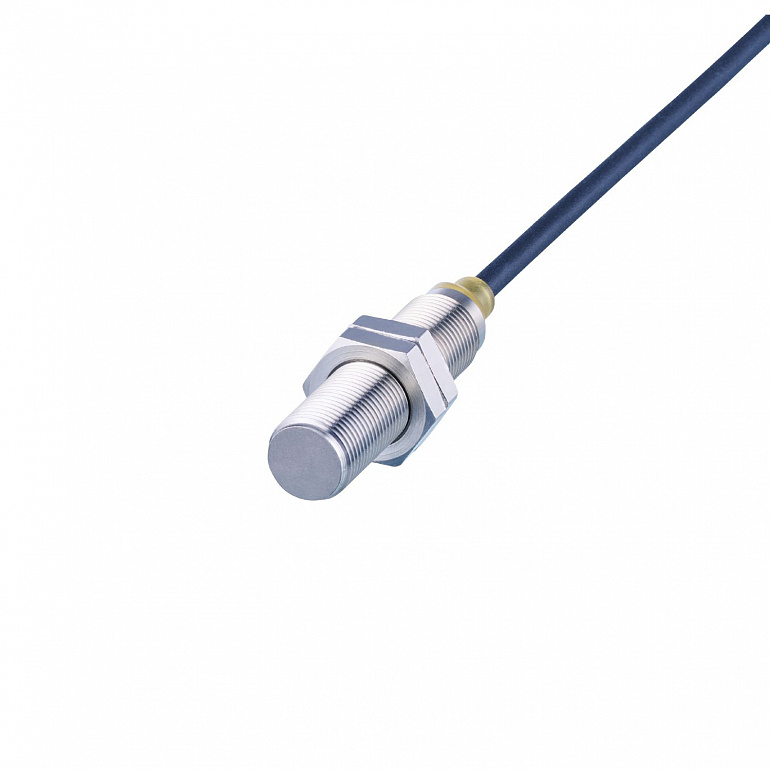

| Product characteristics |
|
| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range |
60; (referred to magnet M 4.0) |
| Housing |
Threaded type |
| Dimensions |
M12 x 1 / L = 50 |
| Application |
|
| System |
Full-metal housing |
| Pressure rating |
50 |
| Electrical data |
|
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Rated insulation voltage |
60 |
| Current consumption |
< 10 |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
50 |
| Outputs |
|
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
5000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Monitoring range |
|
| Sensing range |
60; (referred to magnet M 4.0) |
| Magnetic sensitivity |
1.2 |
| Accuracy / deviations |
|
| Hysteresis |
1...10 |
| Switch-point drift |
< 10 |
| Repeatability |
< 10 |
| Operating conditions |
|
| Ambient temperature |
-25...75 |
| Protection |
IP 67 |
| Degree of soiling |
3 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-4-2</td><td>4 kV CD / 8 kV AD</td></tr><tr><td>EN 61000-4-3</td><td>10 V/m</td></tr><tr><td>EN 61000-4-4</td><td>2 kV</td></tr><tr><td>EN 61000-4-5</td><td>0,5 kV line to line, Ri: 2 Ohm</td></tr><tr><td>EN 61000-4-6</td><td>10 V</ |
| Vibration resistance |
<table><tr><td>EN 60068-2-6 Fc</td><td>20 g 50 sweep cycles per frequency; 1 octave per minute in 3 axes / 10...3000 Hz</td></tr></table> |
| Shock resistance |
<table><tr><td>EN 60068-2-27 Ea</td><td>100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes</td></tr></table> |
| Salt spray test |
<table><tr><td>EN 60068-2-52 Kb</td><td>severity level 5 (4 test cycles)</td></tr></table> |
| MTTF |
1445 |
| UL approval |
<table><tr><td>Ta</td><td>-25...70 °C</td></tr><tr><td>Enclosure type</td><td>Type 1 </td></tr><tr><td>UL approval number</td><td>C023 </td></tr><tr><td>File number UL</td><td>E174191 </td></tr></table> |
| Mechanical data |
|
| Weight |
73 |
| Housing |
Threaded type |
| Dimensions |
M12 x 1 / L = 50 |
| Thread designation |
M12 x 1 |
| Material |
housing: stainless steel (316L / 1.4404); cable plug: PEI; lock nuts: brass |
| Full-metal housing |
yes |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>1 x LED, yellow</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>lock nuts: 2</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> voltage supply to EN50178, SELV, PELV</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Cable: 2 m, PUR; 3 x 0.34 mm² |
