| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range |
60; (referred to magnet M 4.0) |

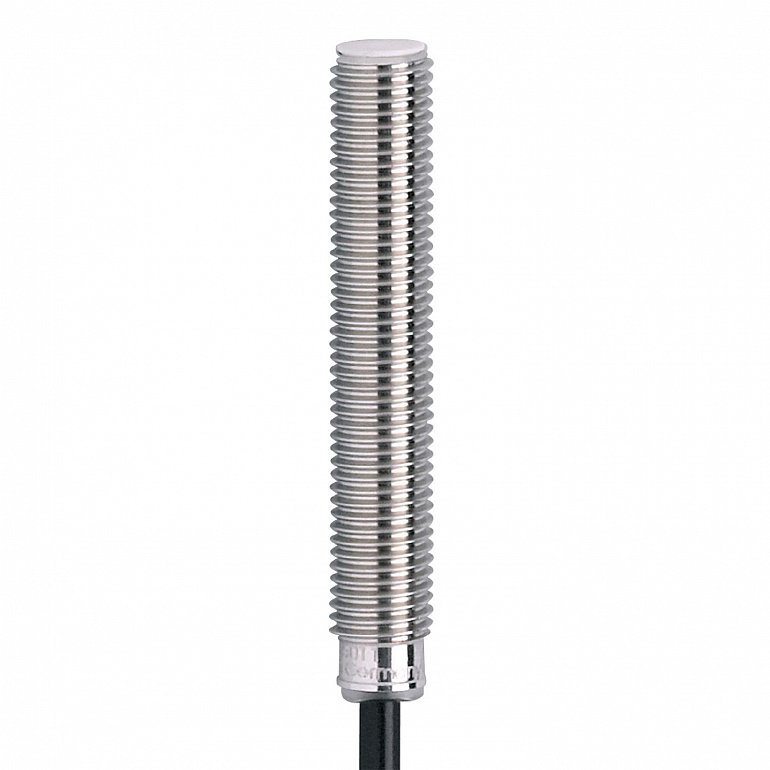

| Housing |
Threaded type |
| Dimensions |
M8 x 1 / L = 50 |
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Current consumption |
< 10 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
5000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Sensing range |
60; (referred to magnet M 4.0) |
| Magnetic sensitivity |
1.2 |
| Hysteresis |
1...10 |
| Ambient temperature |
-25...75 |
| Protection |
IP 67 |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B |
|
| MTTF |
1445 |
| Weight |
71 |
| Housing |
Threaded type |
| Dimensions |
M8 x 1 / L = 50 |
| Thread designation |
M8 x 1 |
| Material |
housing: stainless steel (1.4404 / 316L); sensing face: PBT orange |
| Display |
| Switching status | 1 x LED, yellow |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
| Connection |
Cable: 2 m, PUR / PVC; 3 x 0.14 mm² |
