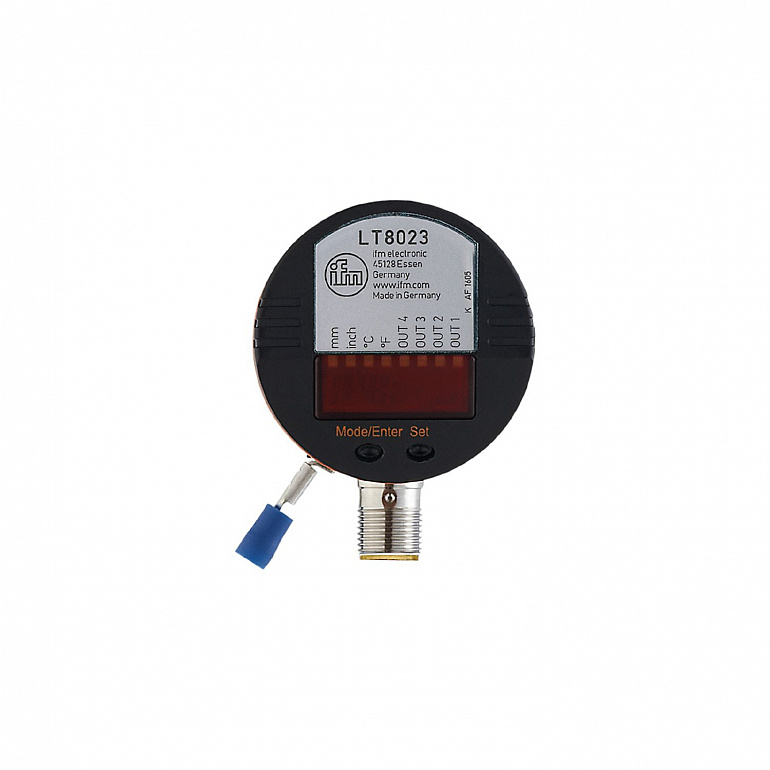

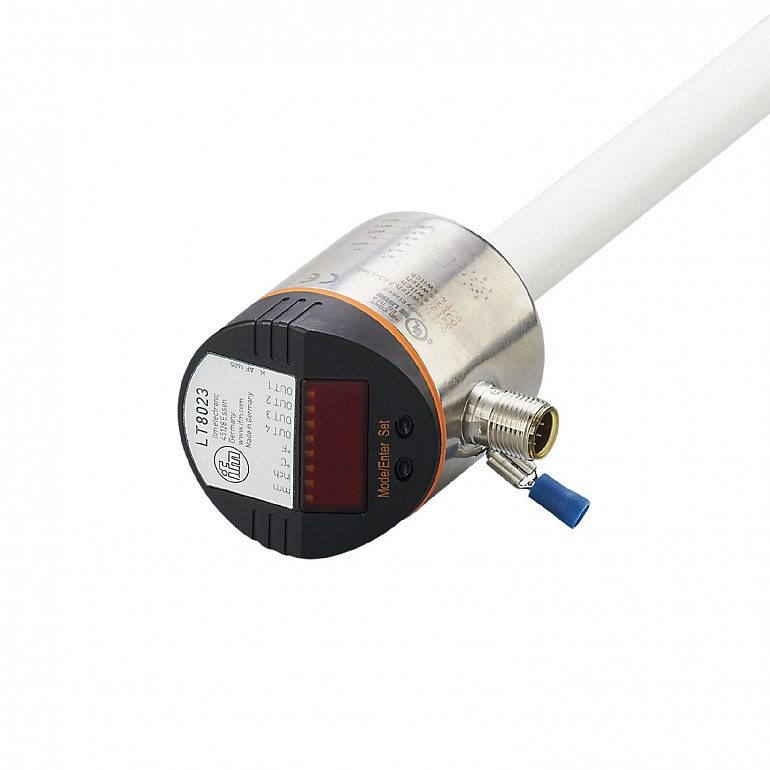

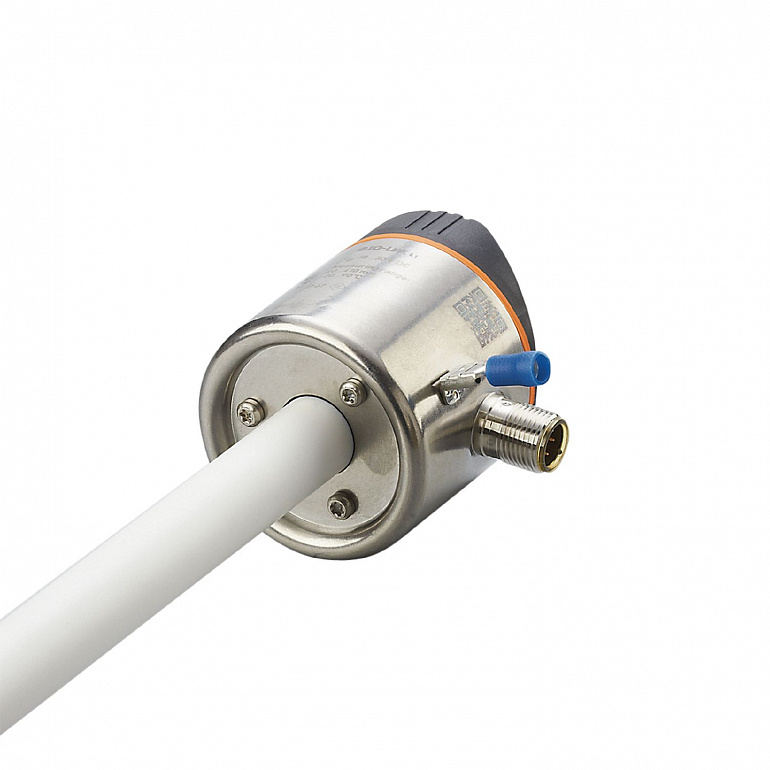

| Number of inputs and outputs |
Number of digital outputs: 4 |
| Factory setting |
2 switching outputs level (OUT1, OUT2); 2 switching outputs temperature (OUT3, OUT4); mineral oils |

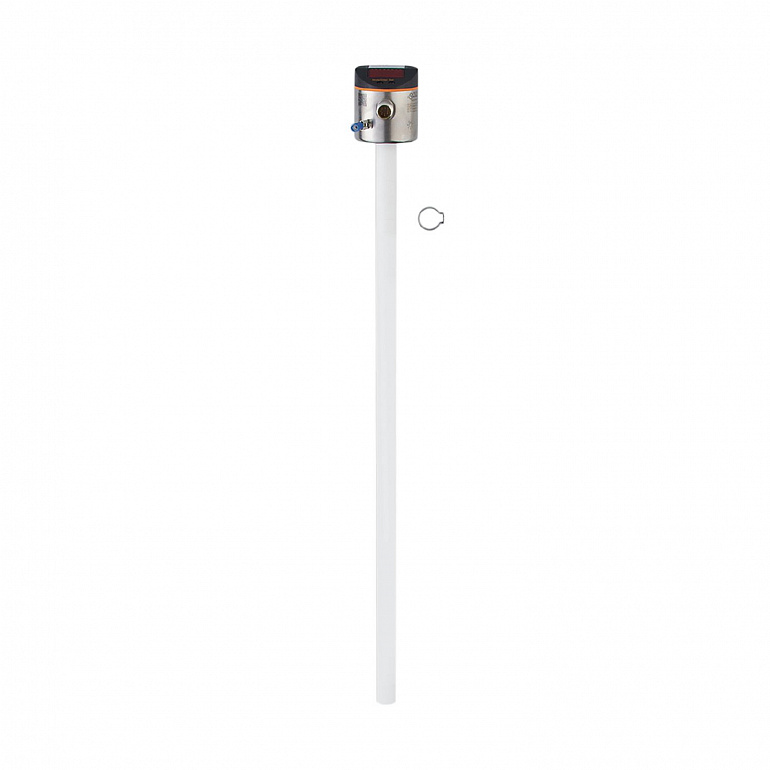

| Probe length L |
472 |
| Media |
hydrous coolants; oils; oil-based media; water; media similar to water |
| Dielectric constant of the medium |
> 2 |
| Cannot be used for |
extremely conductive media; adhering media; granulates; bulk material; acids; alkali |
| Tank pressure |
| 0.5; (when mounting with mounting accessories: E43001 - E43007, E43019) bar | 0.05; (when mounting with mounting accessories: E43001 - E43007, E43019) MPa |
|
| Medium temperature |
0...35; (with climate tube E43101 35...60 °C) |
| Medium temperature |
0...70 |
| Medium temperature short time |
0...90; (< 1 h) |
| Medium temperature |
0...35; (with climate tube E43101 35...60 °C) |
| Operating voltage |
18...30 DC |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 3 |
| Measuring principle |
capacitive |
| Number of inputs and outputs |
Number of digital outputs: 4 |
| Total number of outputs |
4 |
| Output signal |
switching signal; IO-Link |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
4 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
thermal, pulsed |
| Overload protection |
yes |
| Factory setting |
2 switching outputs level (OUT1, OUT2); 2 switching outputs temperature (OUT3, OUT4); mineral oils |
| Probe length L |
472 |
| Active range A |
390 |
| Inactive range I1 / I2 |
60 / 22 |
| Set point SP |
35...390 |
| Reset point rP |
30...385 |
| In steps of |
5 |
| Reference point OP |
139 - 163 - 188 - 212 - 236 - 261 - 285 - 310 - 334 - 358 - 383 - 407 - OFF |
| Hysteresis, OP |
3 |
| Switch point accuracy |
± 1,5 |
| Resolution |
0.5 |
| Dynamic response T09 |
90 |
| Measuring error |
± 5 |
| Repeatability |
± 2 |
| Resolution |
5 |
| Parameter setting options |
hysteresis / window; normally open / closed; SP/rP position; OP position; adjustment OP; medium selection; offset setting; Display unit; process value assignment |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
4 |
| Process data binary |
4 |
| Min. process cycle time |
4.5 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 19 |
|
| Ambient temperature |
0...60 |
| Storage temperature |
-25...80 |
| Protection |
IP 67 |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-4 | |
|
| Shock resistance |
| DIN EN 60068-2-27 | 15 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 5 g (10...2000 Hz) |
|
| MTTF |
195 |
| Weight |
372.95 |
| Dimensions |
Ø 16 |
| Material |
stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; NBR; PBT; PC; PP; PA; TPV |
| Materials (wetted parts) |
PP |
| Display |
| Display unit | 4 x LED, green (cm, inch, °C, °F) | | Switching status | 4 x LED, yellow (OUT4...OUT1) | | Measured values | alphanumeric display, 4-digit | | Parameter setting | alphanumeric display, 4-digit |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
