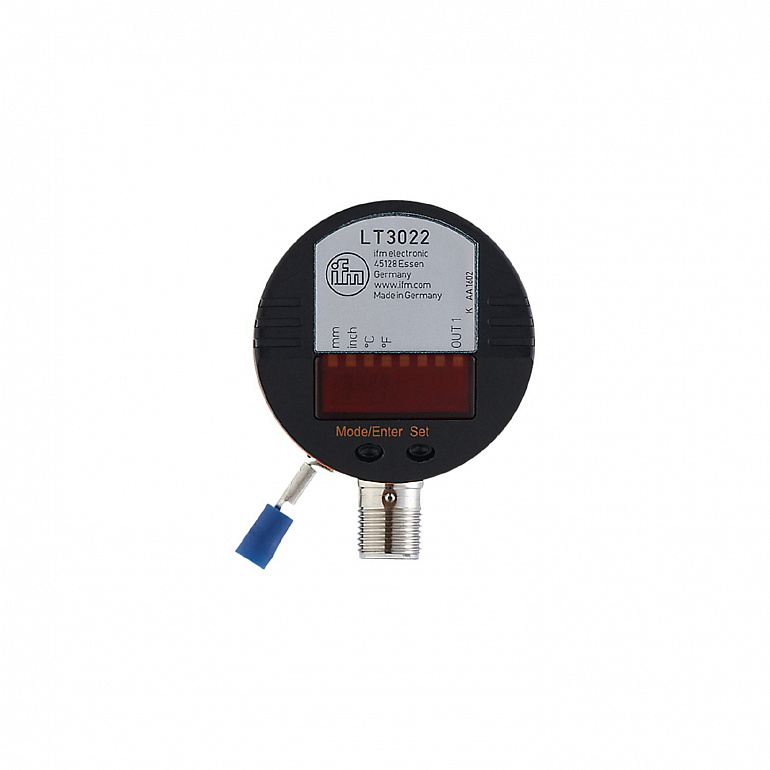

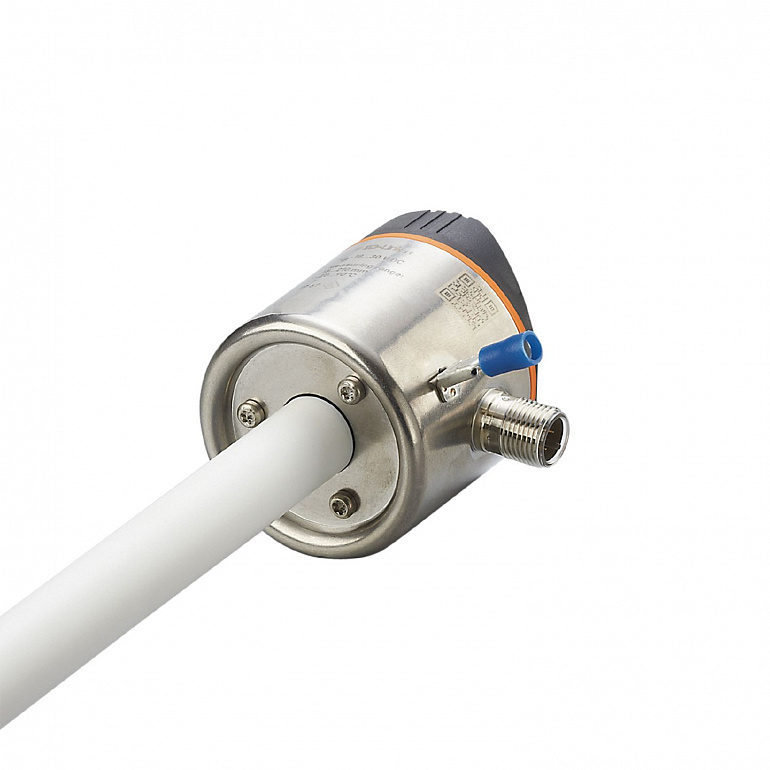

| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Factory setting |
mineral oils |

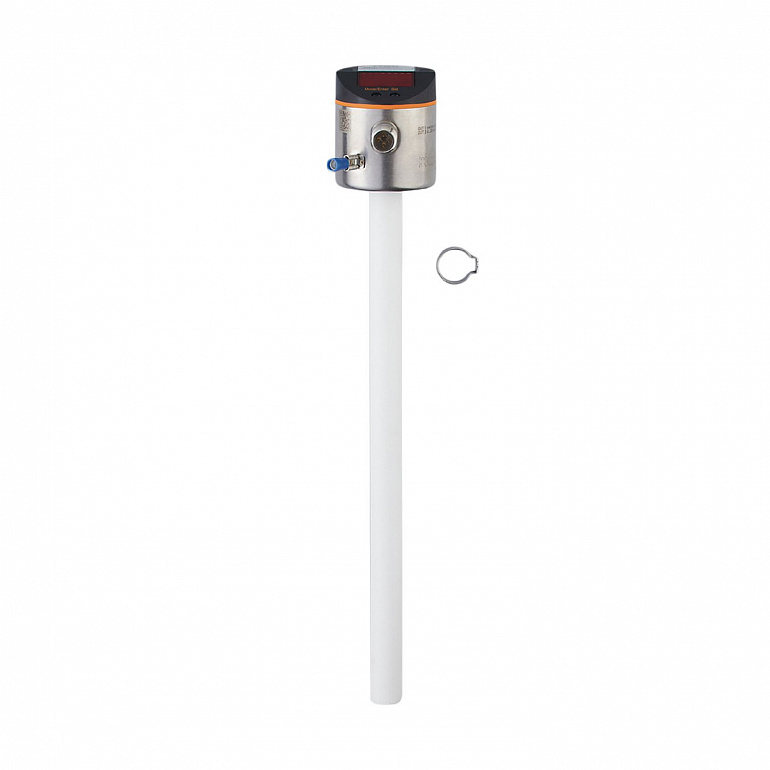

| Probe length L |
264 |
| Media |
hydrous coolants; oils; oil-based media; water; media similar to water |
| Dielectric constant of the medium |
> 2 |
| Cannot be used for |
extremely conductive media; adhering media; granulates; bulk material; acids; alkali |
| Tank pressure |
| 0.5; (when mounting with mounting accessories: E43001 - E43007, E43019) bar | 0.05; (when mounting with mounting accessories: E43001 - E43007, E43019) MPa |
|
| Medium temperature |
0...35; (with climate tube E43100 35...65 °C) |
| Medium temperature |
0...70 |
| Medium temperature short time |
0...90; (< 1 h) |
| Medium temperature |
0...35; (with climate tube E43100 35...65 °C) |
| Operating voltage |
18...30 DC |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 3 |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; IO-Link |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
1 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Number of analog outputs |
1 |
| Analog current output |
4...20, invertible |
| Max. load |
500 |
| Analog voltage output |
0...10, invertible |
| Min. load resistance |
2000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
thermal, pulsed |
| Overload protection |
yes |
| Factory setting |
mineral oils |
| Probe length L |
264 |
| Active range A |
195 |
| Inactive range I1 / I2 |
53 / 16 |
| Set point SP |
25...200 |
| Reset point rP |
20...195 |
| In steps of |
5 |
| Reference point OP |
69 - 82 - 94 - 106 - 118 - 130 - 143 - 155 - 167 - 179 - 191 - 204 - OFF |
| Hysteresis, OP |
2 |
| Switch point accuracy |
± 1,5 |
| Resolution |
0.5 |
| Dynamic response T09 |
90 |
| Measuring error |
± 5 |
| Repeatability |
± 2 |
| Resolution |
5 |
| Zero signal (voltage) |
0 |
| Zero signal (current) |
4.0 |
| Full signal (voltage) |
10 |
| Full signal (current) |
20 |
| Parameter setting options |
hysteresis / window; normally open / closed; switching logic; current/voltage output; SP/rP position; adjustment OP; medium selection; offset setting; switch-on/switch-off delay |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
4 |
| Process data binary |
1 |
| Min. process cycle time |
4.5 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 646 |
|
| Ambient temperature |
0...60 |
| Storage temperature |
-25...80 |
| Protection |
IP 67 |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-4 | |
|
| Shock resistance |
| DIN EN 60068-2-27 | 15 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 5 g (10...2000 Hz) |
|
| MTTF |
222 |
| UL approval |
|
| Weight |
290 |
| Dimensions |
Ø 16 |
| Material |
stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; NBR; PBT; PC; PA; PP; TPV |
| Materials (wetted parts) |
PP |

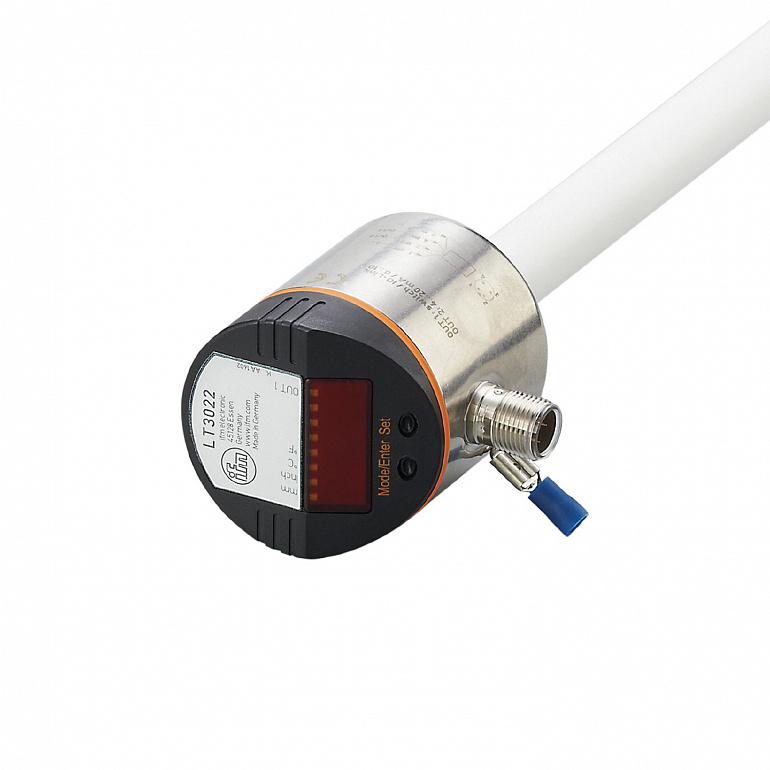

| Display |
| Display unit | 4 x LED, green (cm, inch, °C, °F) | | Switching status | 1 x LED, yellow | | Measured values | alphanumeric display, 4-digit | | Parameter setting | alphanumeric display, 4-digit |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
