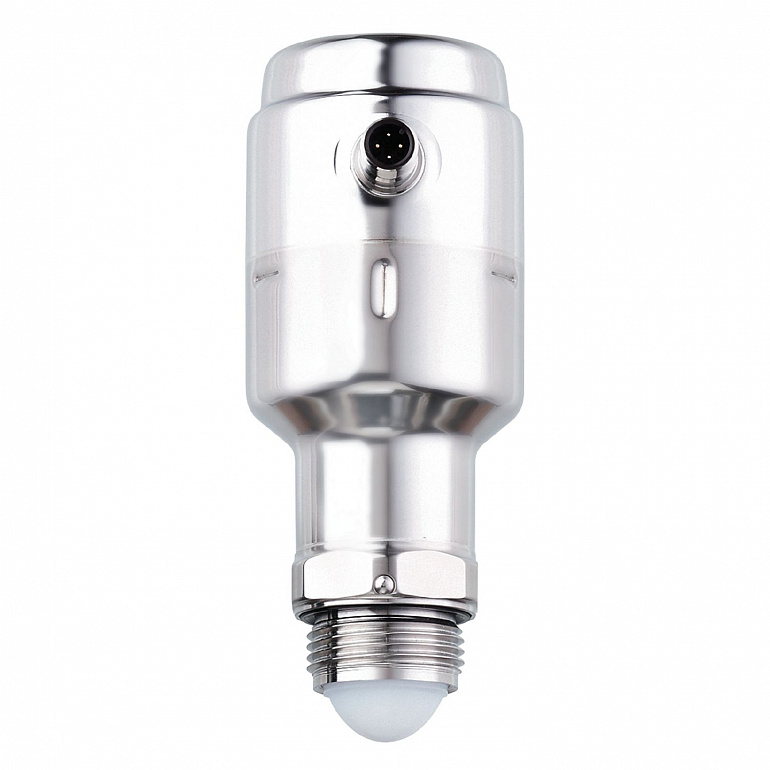

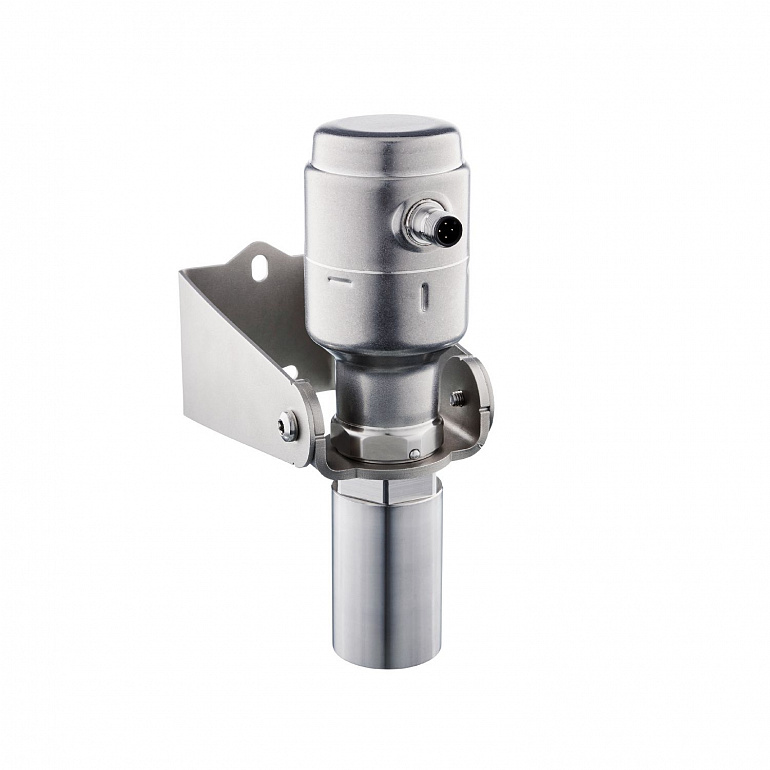

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Process connection |
G 1 Aseptoflex Vario |
| Application |
|
| System |
gold-plated contacts |
| Dielectric constant of the medium |
≥ 2 |
| Recommended media |
water; water-based media |
| Process temperature |
-40...150; (see diagram and note under remarks) |
| Maximum speed of the change of level |
200 |
| Pressure rating |
8 |
| Note on pressure rating |
<table><tr><td> 0 bar at medium temperature < - 20 C</td></tr></table> |
| Vacuum resistance |
-1000 |
| MAWP (for applications according to CRN) |
8 |
| Radio approval for |
EU/RED; Great Britain; South Korea; USA; Canada; Australia; New Zealand; Vietnam; Singapore; Argentina; Brazil; Japan; Taiwan; South Africa |
| Note on radio approval |
<table><tr><td>The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. </td></tr></table> |
| Electrical data |
|
| Operating voltage |
18...30 DC |
| Current consumption |
< 80 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 15 |
| Measuring principle |
FMCW (80 GHz technology); frequency range 77 - 81 Hz |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Outputs |
|
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; IO-Link |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
1; (2 configurable) |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
50 |
| Number of analog outputs |
1 |
| Analog current output |
4...20, invertible; (scalable) |
| Max. load |
43,5 * (Ub – 18) + 600 Ω |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring/setting range |
|
| Measuring range |
10; (see diagram:) |
| Sampling rate |
> 3 |
| Accuracy / deviations |
|
| Accuracy |
<table><tr><td> ± 2 mm</td></tr></table> |
| Resolution |
1 |
| Zero signal (current) |
3.8 |
| Full signal (current) |
20.5 |
| Temperature drift per 10 K |
± 1 mm |
| Reaction times |
|
| Response time |
330 |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 3.1</td><td>Measuring Sensor</td></tr><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr><tr><td>Function</td><td>Multiple switching signal</td></tr></table> |
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
1 |
| Process data binary |
2 |
| Min. process cycle time |
6 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1611</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-40...80 |
| Note on ambient temperature |
<table><tr><td> see diagram:</td></tr></table> |
| Storage temperature |
-40...90 |
| Protection |
IP 68; IP 69K |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61326-1</td><td>group 1: Class A (IO-Link active); B (IO-Link not active, with analog and switching outputs)</td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g (11 ms) / 20 g (6 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>IEC 61298-3</td><td>2 g (10...1000 Hz)</td></tr></table> |
| MTTF |
330 |
| Mechanical data |
|
| Weight |
723.8 |
| Material |
stainless steel (1.4404 / 316L); PA; FKM; FVMQ |
| Materials (wetted parts) |
PTFE; EPDM; FVMQ when used without Aseptoflex Vario adapter |

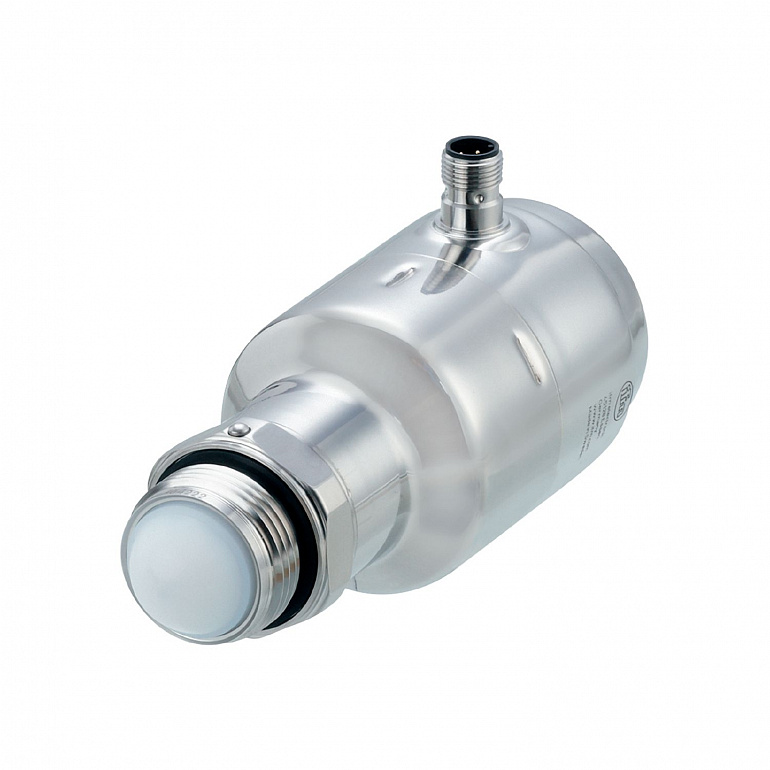

| Process connection |
G 1 Aseptoflex Vario |
| Surface characteristics Ra/Rz of the wetted parts |
Ra < 0.76 µm |
| Remarks |
|
| Notes |
An IO-Link master and a parameter setting software (e.g. moneo or LR DEVICE) are required for initial set-up.; For high process temperatures: The temperature at the process connection is decisive. The actual medium temperature may be higher.; use accordin |
| Pack quantity |
1 pcs. |
| Electrical connection |
|

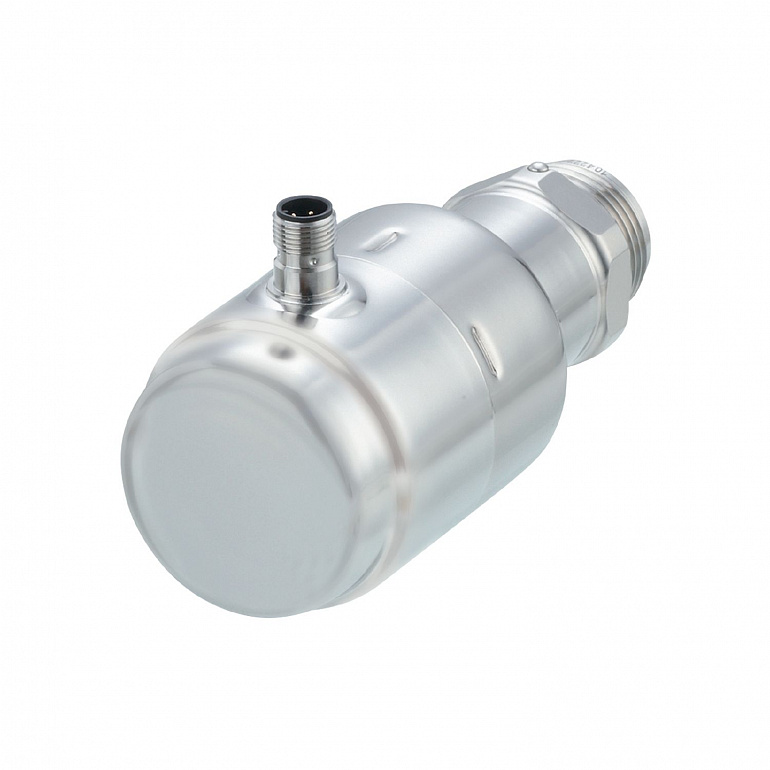

| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
