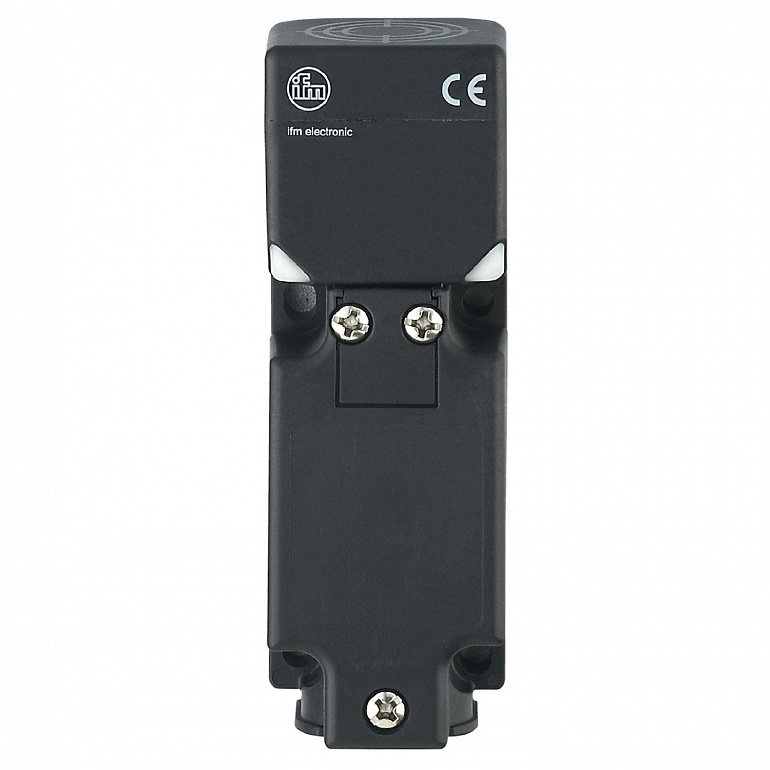

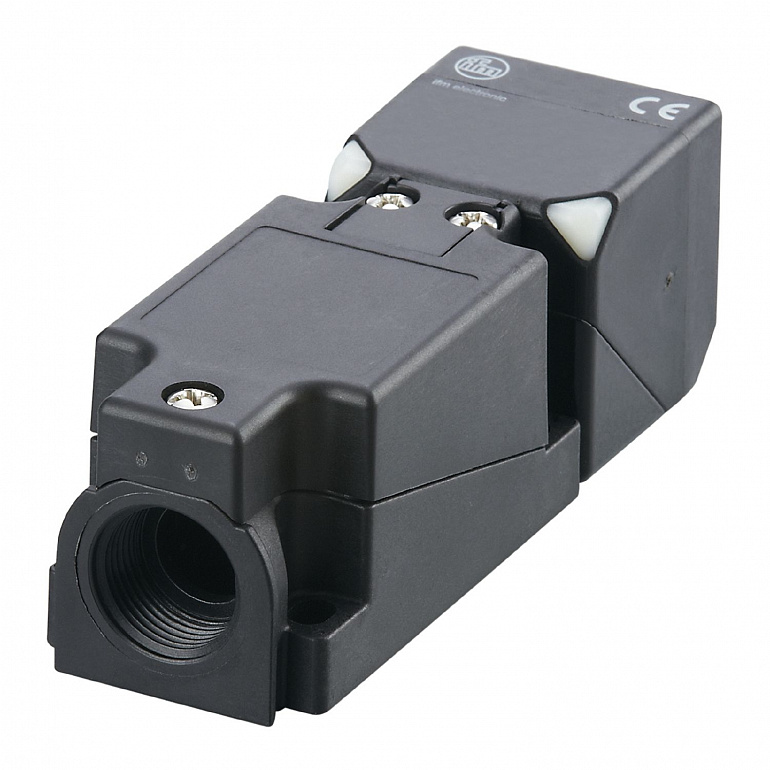

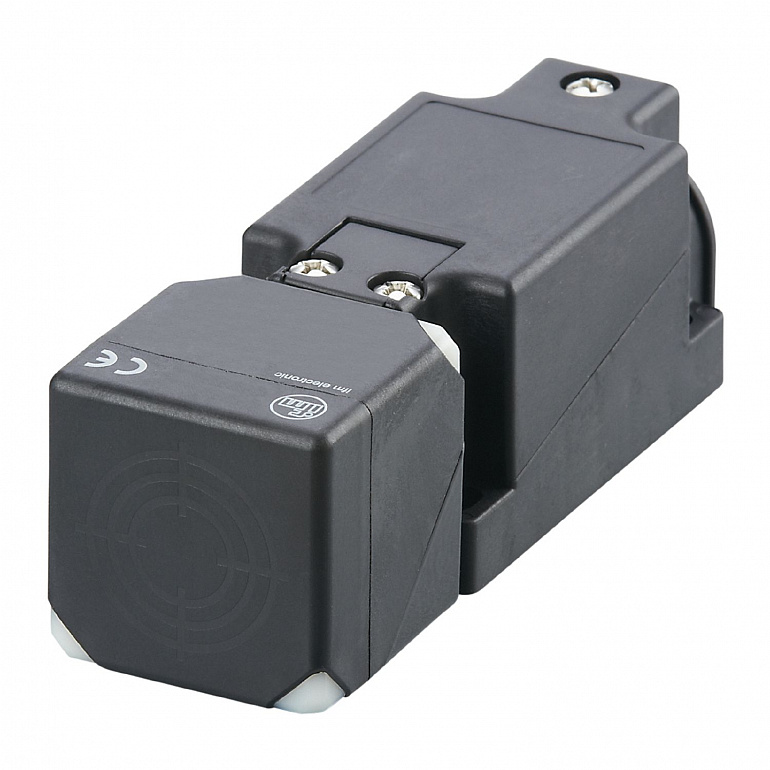

| Electrical design |
PNP |
| Output function |
complementary |
| Sensing range |
20 |
| Housing |
rectangular |
| Dimensions |
40 x 40 x 118 |
| Operating voltage |
10...30 DC |
| Current consumption |
20; (24 V) |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Electrical design |
PNP |
| Output function |
complementary |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
300 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Sensing range |
20 |
| Real sensing range Sr |
20 ± 10 % |
| Operating distance |
0...16.2 |
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.3 |
| Hysteresis |
1...10 |
| Switch-point drift |
-10...10 |
| Ambient temperature |
-25...100 |
| Protection |
IP 68; IP 69K |
| EMC |
| EN 61000-4-2 ESD | 8 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 15 V | | EN 55011 | class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 10 g (10...2000 Hz) / 10 cycles |
|
| Shock resistance |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Continuous shock resistance |
| EN 60068-2-27 | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|
| Fast temperature changes |
| EN 60068-2-14 Na | TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles |
|
| MTTF |
652.2 |
| UL approval |
| Ta | 0...40 °C | | Enclosure type | Type 1 | | File number UL | E174191 |
|
| Weight |
250 |
| Housing |
rectangular |
| Mounting |
flush mountable |
| Dimensions |
40 x 40 x 118 |
| Material |
PA 6.6; diecast zinc epoxy coated; sensing face: PA 6.6; LED window: PA; screws: stainless steel stainless steel (1.4305 / 303) |
| Display |
| Switching status | 1 x LED, yellow | | Power | 1 x LED, green |
|
| Remarks |
| 5 positions of the active zone possible | | cable gland (E11270) to be ordered separately |
|
| Pack quantity |
1 pcs. |
| Connection |
terminals: ...2.5 mm²; Cable gland: M20 X 1.5 |
