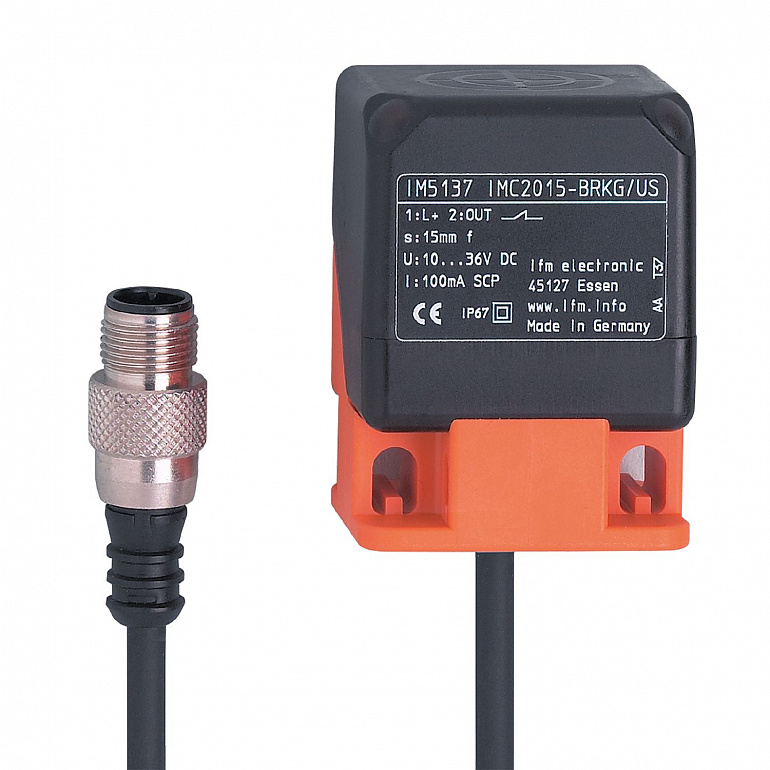

| Electrical design |
PNP/NPN |
| Output function |
normally closed |
| Sensing range |
15 |
| Housing |
rectangular |
| Dimensions |
40 x 40 x 54 |
| Operating voltage |
10...36 DC |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Electrical design |
PNP/NPN |
| Output function |
normally closed |
| Max. voltage drop switching output DC |
4.6 |
| Minimum load current |
2 |
| Max. leakage current |
0.8 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
200 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Sensing range |
15 |
| Real sensing range Sr |
15 ± 10 % |
| Operating distance |
0...12.1 |
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis |
1...15 |
| Switch-point drift |
-10...10 |
| Ambient temperature |
-25...70 |
| Protection |
IP 67 |
| EMC |
| EN 61000-4-2 ESD | 8 kV CD / 6 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B |
|
| MTTF |
1714 |
| Weight |
161.5 |
| Housing |
rectangular |
| Sensing face |
5 positions selectable |
| Mounting |
flush mountable |
| Dimensions |
40 x 40 x 54 |
| Material |
PA |
| Display |
| Switching status | 1 x LED, yellow |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: A; Locking: Knurled nut, rotatable |
