| Electrical design |
PNP |
| Output function |
normally open / closed; (selectable) |
| Sensing range |
15 |

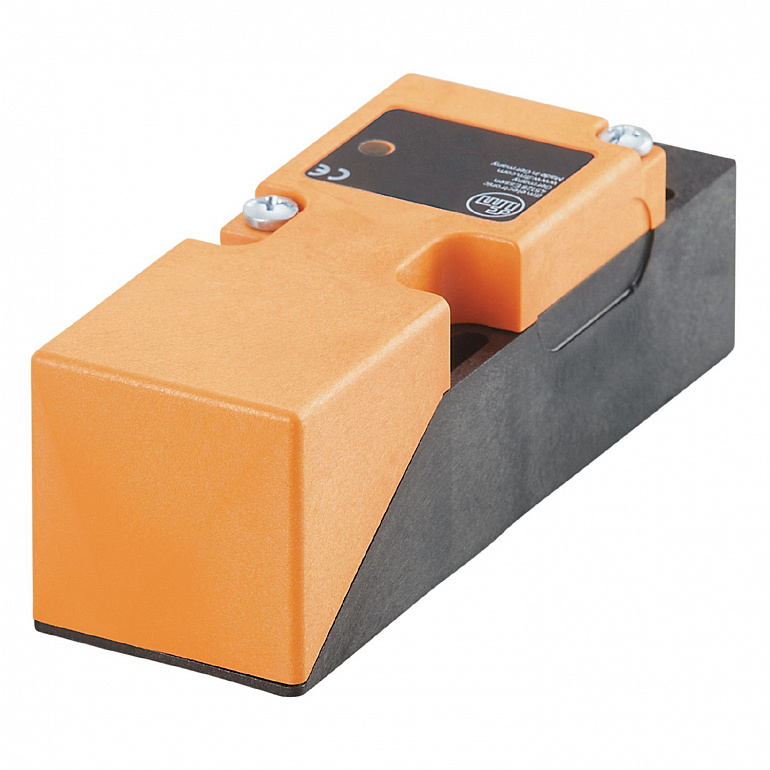

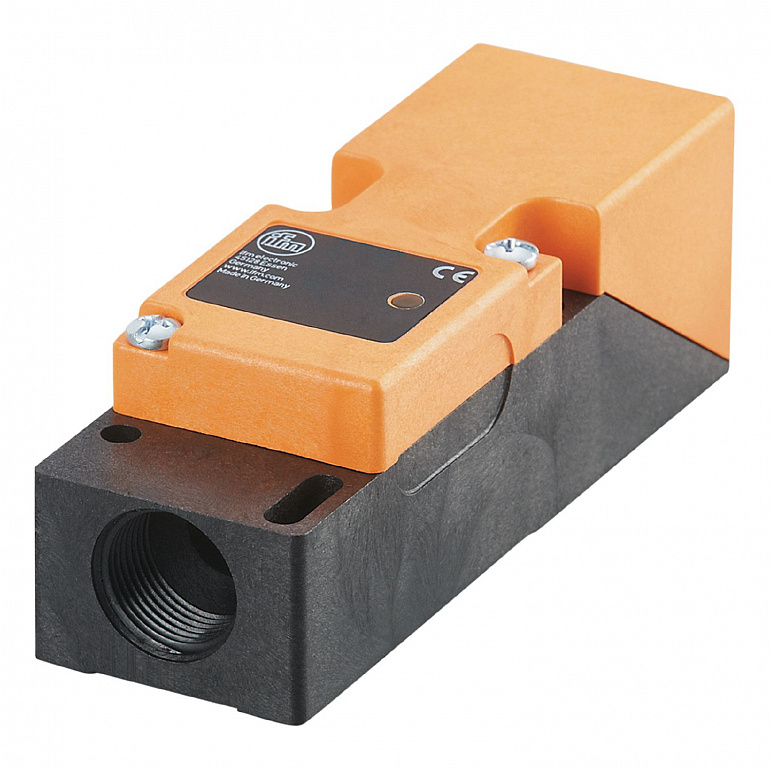

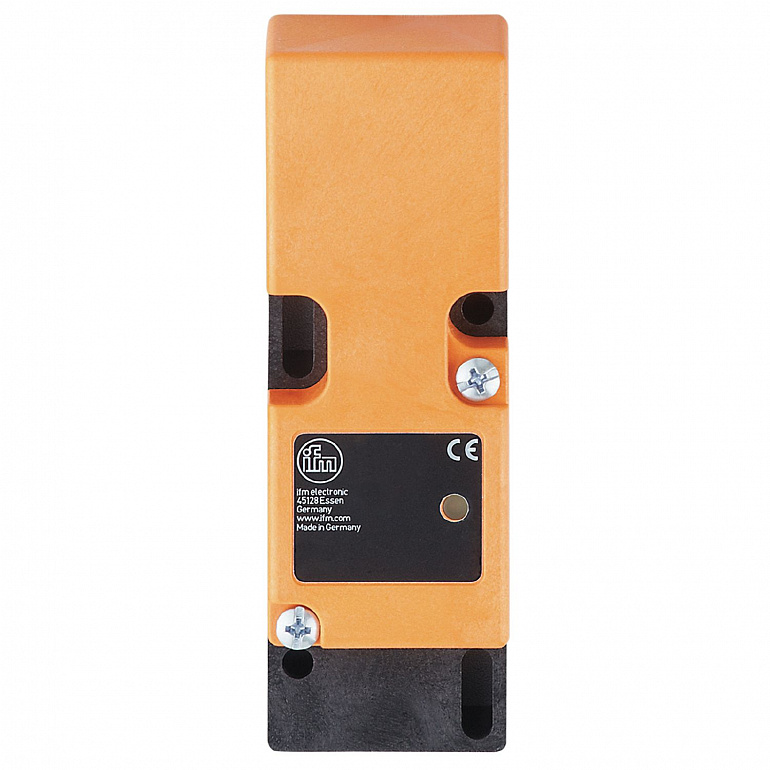

| Housing |
rectangular |
| Dimensions |
40 x 40 x 120 |
| Operating voltage |
10...36 DC |
| Current consumption |
15; (24 V) |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Electrical design |
PNP |
| Output function |
normally open / closed; (selectable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
250 |
| Switching frequency DC |
250 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Sensing range |
15 |
| Real sensing range Sr |
15 ± 10 % |
| Operating distance |
0...12.1 |
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Hysteresis |
1...15 |
| Switch-point drift |
-10...10 |
| Ambient temperature |
-25...80 |
| Protection |
IP 65 |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD | | EN 61000-4-3 HF radiated | 3 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 3 V | | EN 55011 | class B |
|
| MTTF |
2234 |
| Weight |
168 |
| Housing |
rectangular |
| Mounting |
flush mountable |
| Dimensions |
40 x 40 x 120 |
| Material |
PPE |
| Display |
| Switching status | 1 x LED, yellow |
|
| Remarks |
| 5 positions of the active zone possible | | cable gland (E11270) to be ordered separately |
|
| Pack quantity |
1 pcs. |
| Connection |
terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5 |
