| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range |
40 |
| Housing |
rectangular |
| Dimensions |
90 x 60 x 40 |
| Operating voltage |
10...36 DC |
| Current consumption |
15; (24 V) |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
250 |
| Switching frequency DC |
6 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Sensing range |
40 |
| Sensing range adjustable |
yes |
| Factory setting sensing range |
40 |
| Real sensing range Sr |
40 ± 10 % |
| Operating distance |
0...32.4 |
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis |
3...15 |
| Switch-point drift |
-10...10 |
| Ambient temperature |
-25...80 |
| Protection |
IP 65 |
| EMC |
| EN 60947-5-2 | | | EN 55011 | class B |
|
| MTTF |
1261 |
| Weight |
279.5 |
| Housing |
rectangular |
| Mounting |
non-flush mountable |
| Dimensions |
90 x 60 x 40 |
| Material |
PPE modified |
| Display |
| Switching status | 1 x LED, yellow |
|

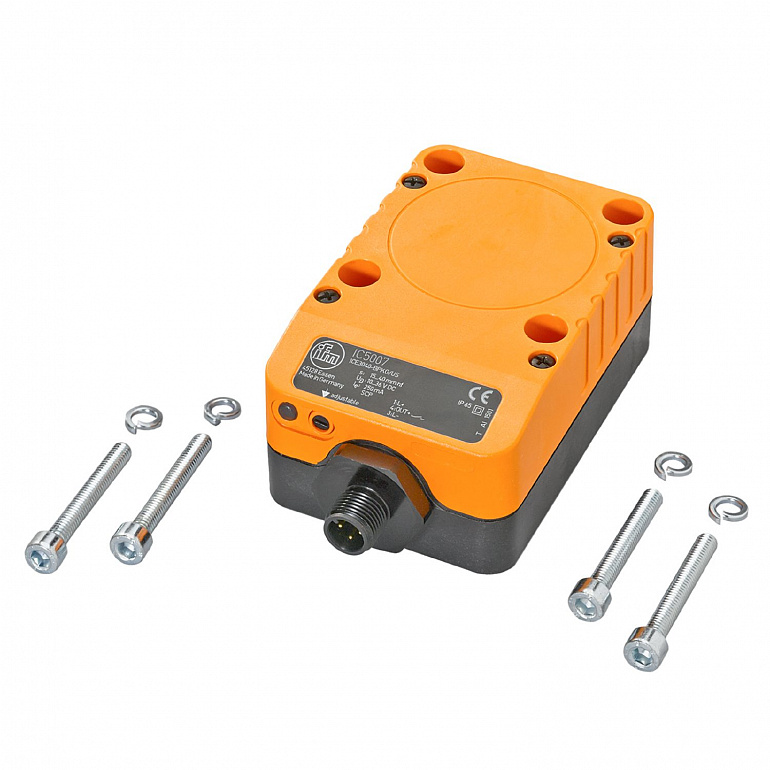

| Items supplied |
| screwdriver: 1 | | spring washers: 4 | | cylinder screws: 4 x (M5 x 35 mm) |
|
| Pack quantity |
1 pcs. |

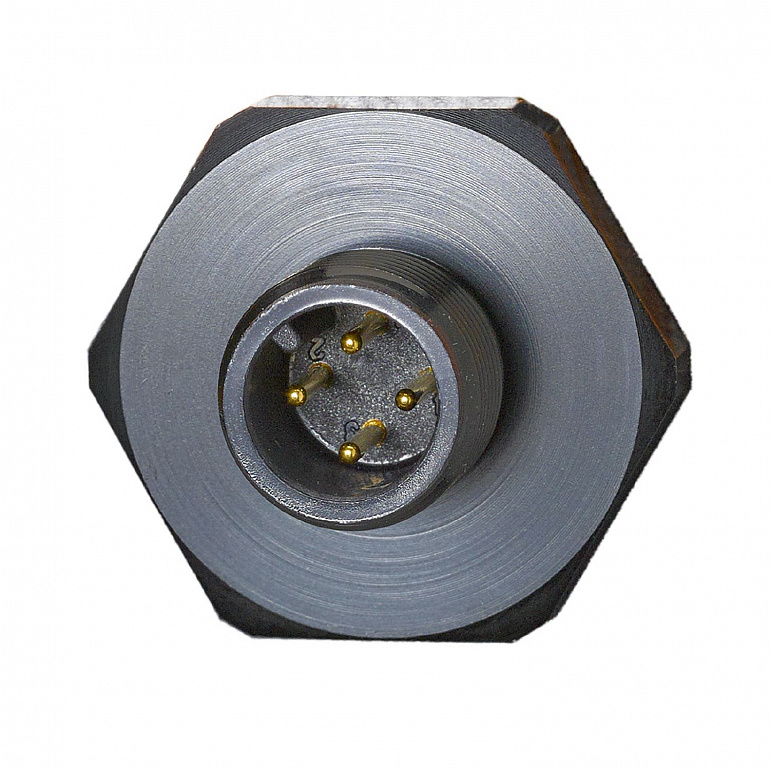

| Connection |
Connector: 1 x M12; coding: A |
