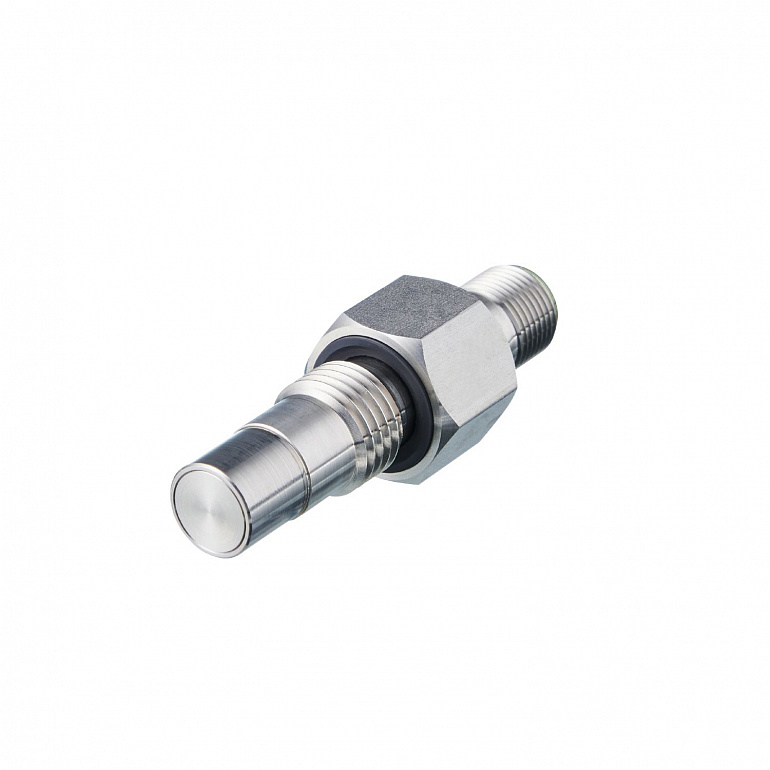

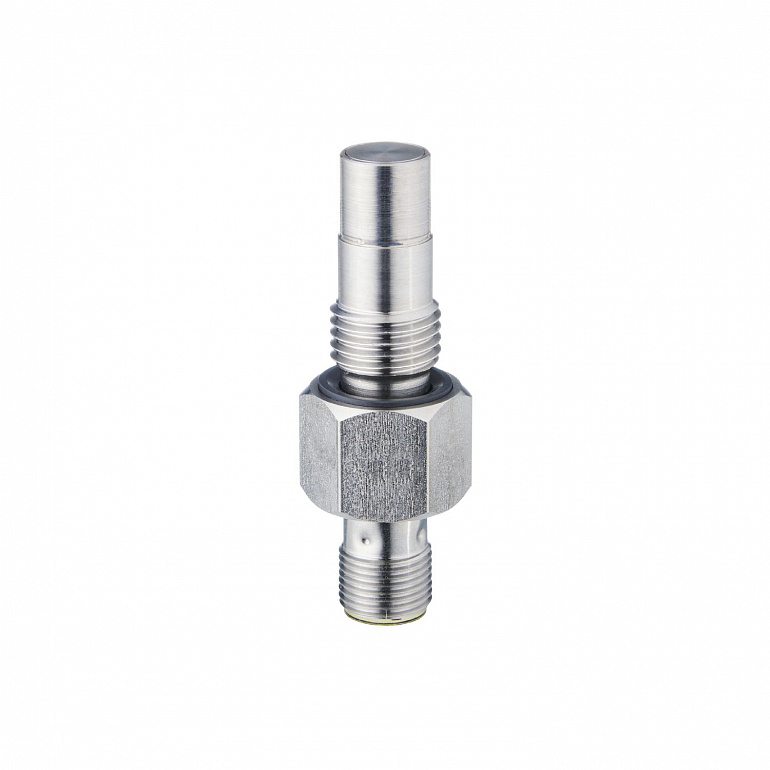

| Product characteristics |
|
| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range |
2 |
| Housing |
Threaded type |
| Dimensions |
M14 x 1.5 / L = 60 |
| Application |
|
| System |
gold-plated contacts; Full-metal housing |
| Application |
Hydraulic cylinder |
| Media |
Detects ferrous metals |
| Min. bursting pressure |
<table><tr><td>2000 bar</td><td>200 MPa</td></tr></table> |
| Pressure rating |
50 |
| Electrical data |
|
| Operating voltage |
10...36 DC |
| Rated insulation voltage |
60 |
| Current consumption |
< 23 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 300 |
| Outputs |
|
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
1.6 |
| Max. leakage current |
0.1 |
| Permanent current rating of switching output DC |
200 |
| Short-time current rating of switching output |
200 |
| Switching frequency DC |
1000 |
| Type of short-circuit protection |
yes (non-latching) |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Monitoring range |
|
| Sensing range |
2 |
| Real sensing range Sr |
2 ± 10 % |
| Operating distance |
0...1.62 |
| Accuracy / deviations |
|
| Hysteresis |
< 15 |
| Switch-point drift |
-10...10 |
| Repeatability |
< 10 |
| Operating conditions |
|
| Ambient temperature |
120 |
| Protection |
IP 65; IP 68; IP 69K |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-4-2 ESD</td><td>4 kV CD / 8 kV AD</td></tr><tr><td>EN 61000-4-3 HF radiated</td><td>10 V/m</td></tr><tr><td>EN 61000-4-4 Burst</td><td>2 kV</td></tr><tr><td>EN 61000-4-6 HF conducted</td><td>10 V</td></tr><tr><td>EN 55011</td><td>c |
| Vibration resistance |
<table><tr><td>EN 60068-2-6 Fc</td><td>20 g 50 sweep cycles per frequency; 1 octave per minute in 3 axes / 10...3000 Hz -20...50 °C</td></tr></table> |
| Shock resistance |
<table><tr><td>EN 60068-2-27 Ea</td><td>100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40...85 °C</td></tr></table> |
| Fast temperature changes |
<table><tr><td>EN 60068-2-14 Na</td><td>TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles</td></tr></table> |
| MTTF |
1701 |
| Mechanical data |
|
| Weight |
54.8 |
| Housing |
Threaded type |
| Mounting |
flush mountable |
| Dimensions |
M14 x 1.5 / L = 60 |
| Thread designation |
M14 x 1.5 |
| Material |
housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); O-ring: FPM 90 |
| Tightening torque |
< 25 |
| Full-metal housing |
yes |
| Remarks |
|
| Pack quantity |
1 pcs. |

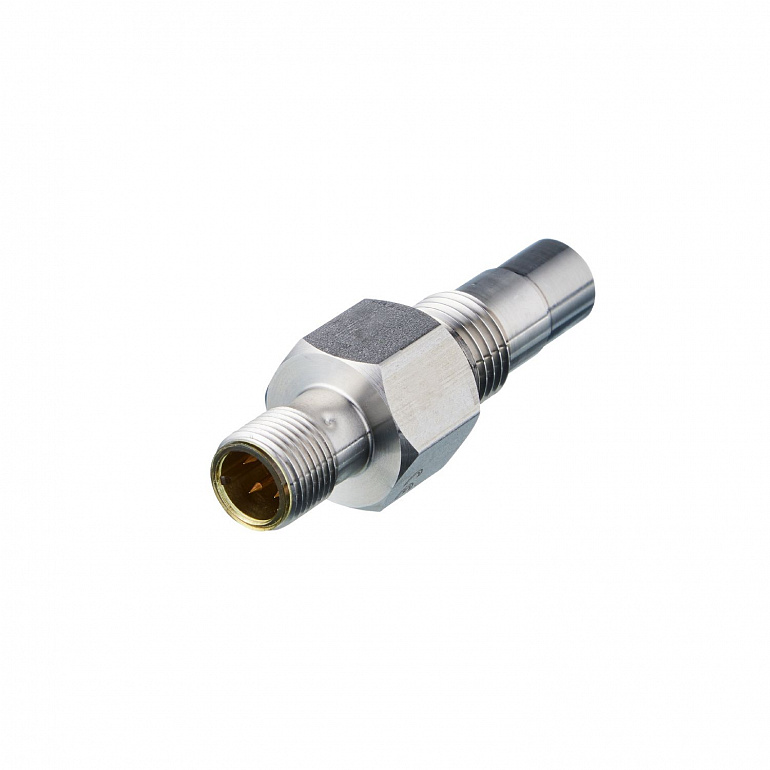

| Electrical connection - plug |
|
| Connection |
Connector: 1 x M12; coding: A; Moulded body: PEI; Contacts: gold-plated |
