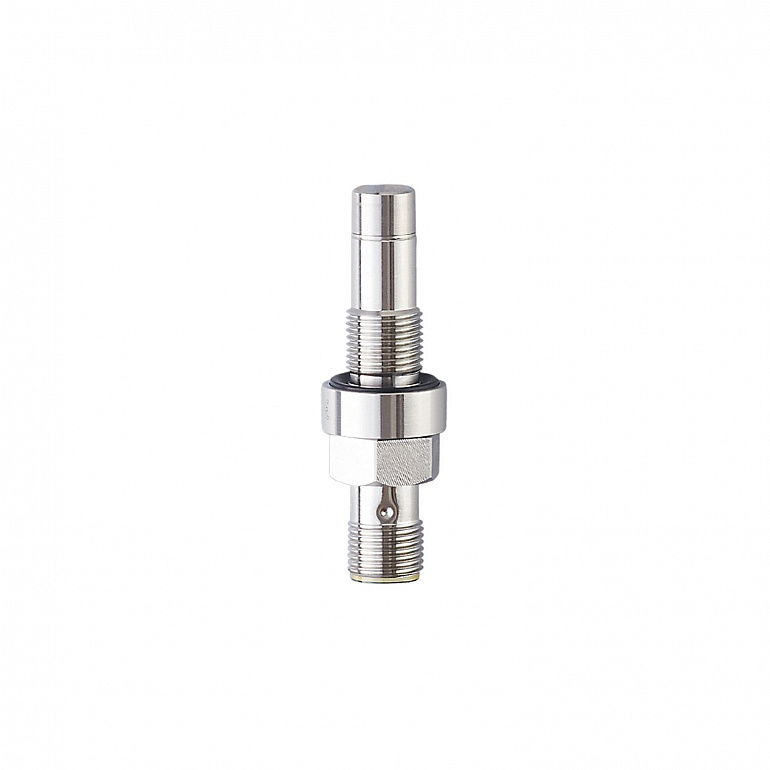

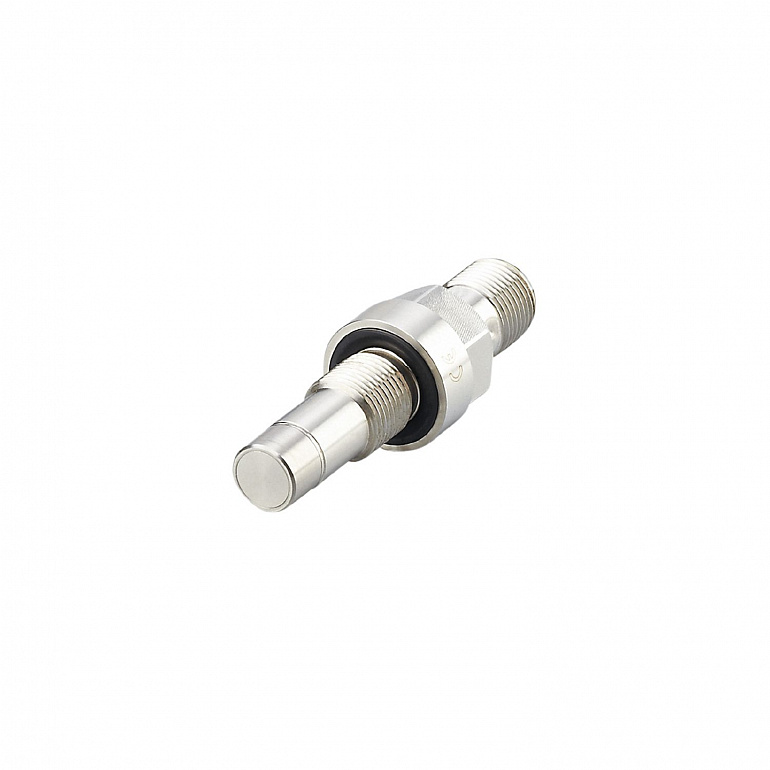

| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range |
1.8 |
| Housing |
Threaded type |
| Application |
Hydraulic cylinder |
| Media |
Detects ferrous metals |
| Min. bursting pressure |
|
| Pressure rating |
|
| Operating voltage |
10...36 DC |
| Current consumption |
< 23 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
1.6 |
| Max. leakage current |
0.1 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
1000 |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Sensing range |
1.8 |
| Real sensing range Sr |
1.8 ± 10 % |
| Operating distance |
0...1.46 |
| Hysteresis |
< 15 |
| Switch-point drift |
10 |
| Repeatability |
10 |
| Pressure peak |
|
| Ambient temperature |
-25...85 |
| Protection |
IP 65; IP 68; IP 69K |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B | | DIN ISO 11452-5 | 100 V/m |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 20 g 50 sweep cycles per frequency; 1 octave per minute in 3 axes / 10...3000 Hz -20...50 °C |
|
| Shock resistance |
| EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40...85 °C |
|
| Continuous shock resistance |
| EN 60068-2-27 Ea | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20...50 °C |
|
| MTTF |
1701 |
| Weight |
43 |
| Housing |
Threaded type |
| Mounting |
flush mountable |
| Tightening torque |
< 25 |
| Full-metal housing |
yes |
| Pack quantity |
1 pcs. |

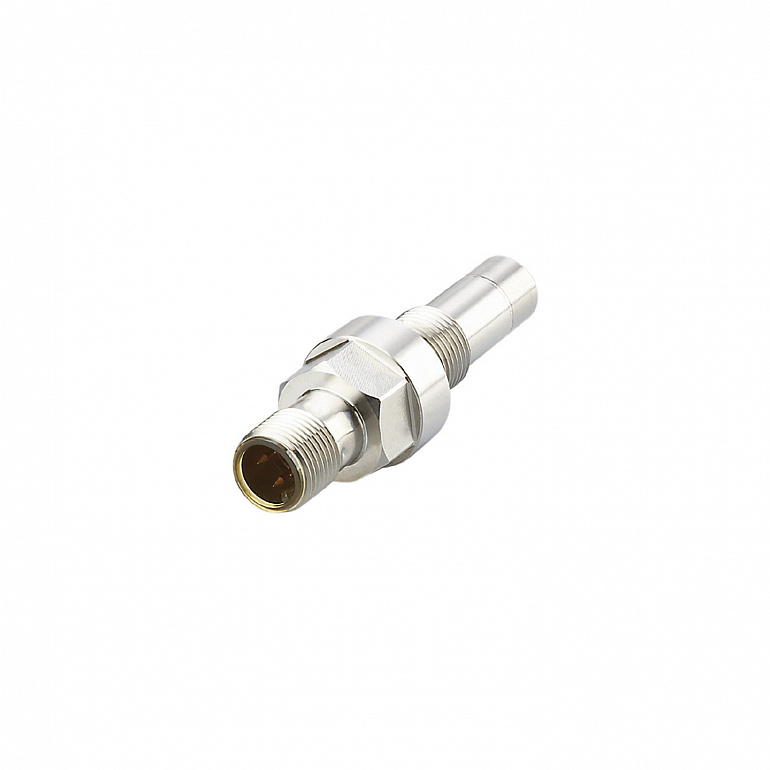

| Connection |
Connector: 1 x M12; coding: A |
