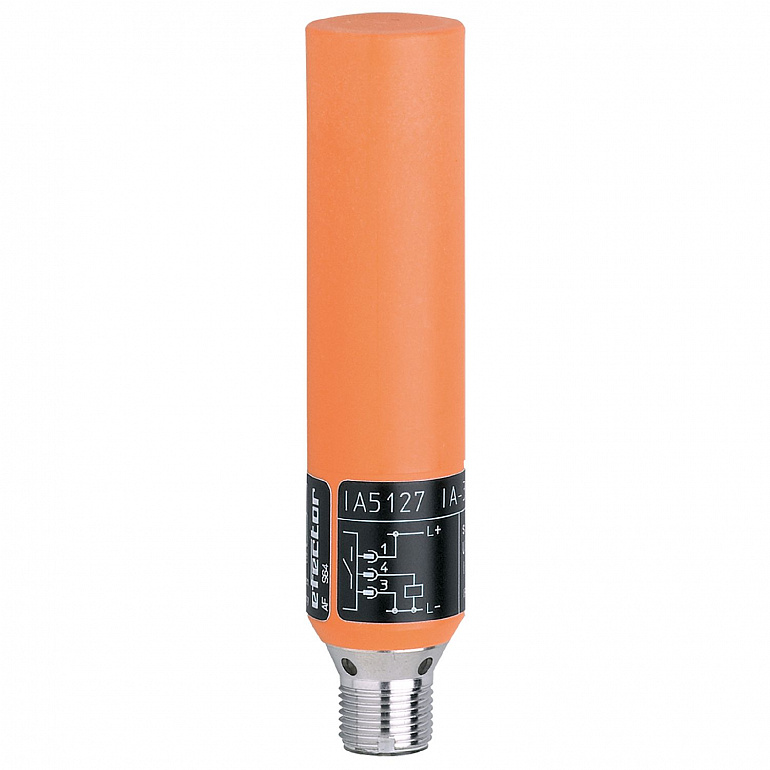

| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range |
10 |
| Housing |
tubular |
| Dimensions |
Ø 20 / L = 93 |
| Operating voltage |
10...36 DC |
| Current consumption |
15; (24 V) |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
250 |
| Switching frequency DC |
300 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Sensing range |
10 |
| Real sensing range Sr |
10 ± 10 % |
| Operating distance |
0...8.1 |
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Hysteresis |
1...15 |
| Switch-point drift |
-10...10 |
| Ambient temperature |
-25...80 |
| Protection |
IP 67 |
| EMC |
| EN 61000-4-2 ESD | 8 kV AD | | EN 61000-4-3 HF radiated | 3 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm | | EN 61000-4-6 HF conducted | 3 V |
|
| MTTF |
1801 |
| UL approval |
| Ta | 0...40 °C | | Enclosure type | Type 1 | | File number UL | E174191 |
|
| Weight |
75.5 |
| Housing |
tubular |
| Mounting |
non-flush mountable |
| Dimensions |
Ø 20 / L = 93 |
| Material |
PBT |
| Display |
| Switching status | 4 x 90° LED, yellow |
|
| Items supplied |
| Mounting clamp: 1 | | Mounting clamp:, E10016 |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
