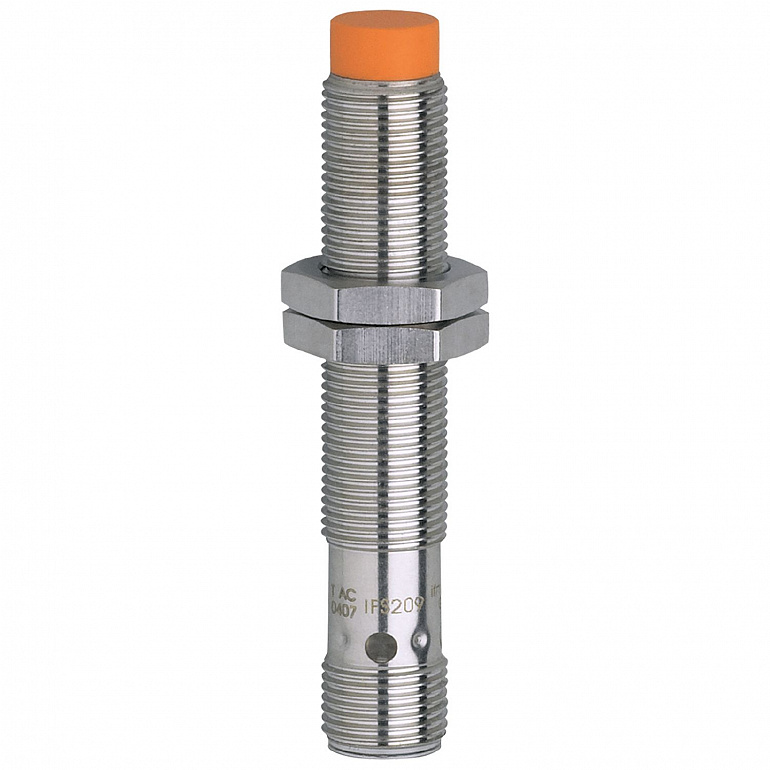

| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Communication interface |
IO-Link |
| Housing |
Threaded type |
| Dimensions |
M12 x 1 / L = 70 |
| Operating voltage |
15...30 DC |
| Current consumption |
< 30 |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
200 |
| Analog voltage output |
0...10; (linear; gradient: 2,778 V/mm; for frontal approach and for target made of mild steel: 12 x 12 x 1 mm) |
| Min. load resistance |
2000 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Measuring range |
0.4...4 |
| Switch point IO-Link |
0.75...3.74 |
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis |
3...15 |
| Note on hysteresis |
|
| Linearity error of analog output |
± 1; (of the final value of the measuring range) |
| Repeatability analog output |
± 1; (of the final value of the measuring range) |
| Temperature coefficient |
±0,15 |
| Temperature drift |
± 5 %; (of the final value of the measuring range) |
| Response time |
< 10 |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Common - I&D | Identification and Diagnosis | | Function | Multiple switching signal | | Function | Teach channel |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
3.2 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| process value | 16 | | device status | 4 | | binary switching information | 2 |
|
| IO-Link functions (acyclical) |
switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1206 |
|
| Note |
| For further information please see the IODD PDF file at "Downloads" |
|
| Ambient temperature |
-25...80 |
| Protection |
IP 65; IP 66; IP 67; IP 68; IP 69K |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Continuous shock resistance |
| EN 60068-2-27 | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|
| Fast temperature changes |
| EN 60068-2-14 Na | TA = -25°C; TB = 80°C; t1 = 30 min; t2 = < 10 s 50 cycles |
|
| MTTF |
220 |
| Embedded software included |
yes |
| UL approval |
| Ta | -25...60 °C | | Enclosure type | Type 1 | | voltage supply | Limited Voltage/Current | | UL approval number | A024 | | File number UL | E174191 |
|
| Weight |
44.5 |
| Housing |
Threaded type |
| Mounting |
non-flush mountable |
| Dimensions |
M12 x 1 / L = 70 |
| Thread designation |
M12 x 1 |
| Material |
housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Tightening torque |
7 |
| Display |
| target in measuring range | 4 x LED, yellow lights | | target outside measuring range | 4 x LED, yellow flashing |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
