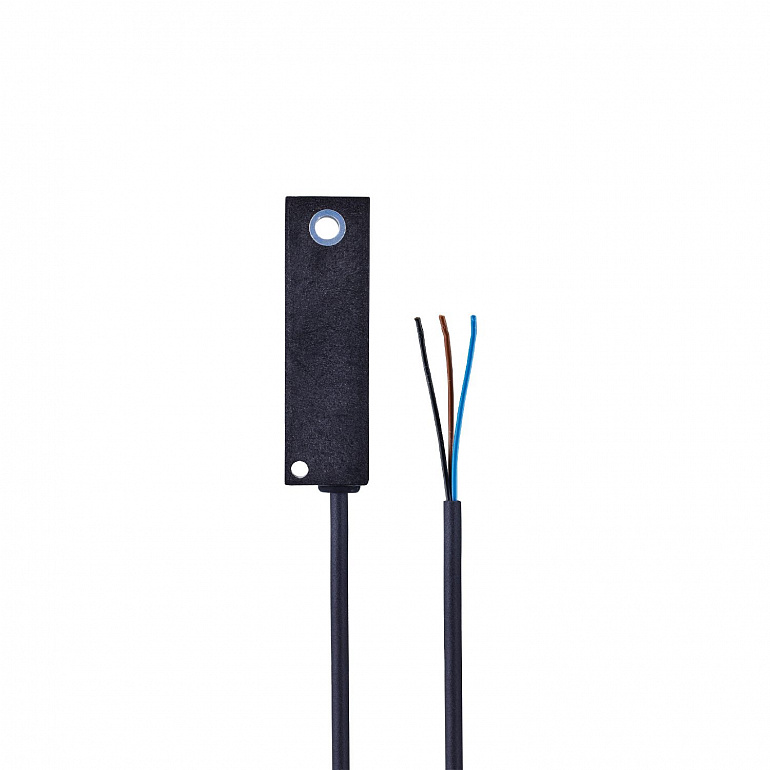

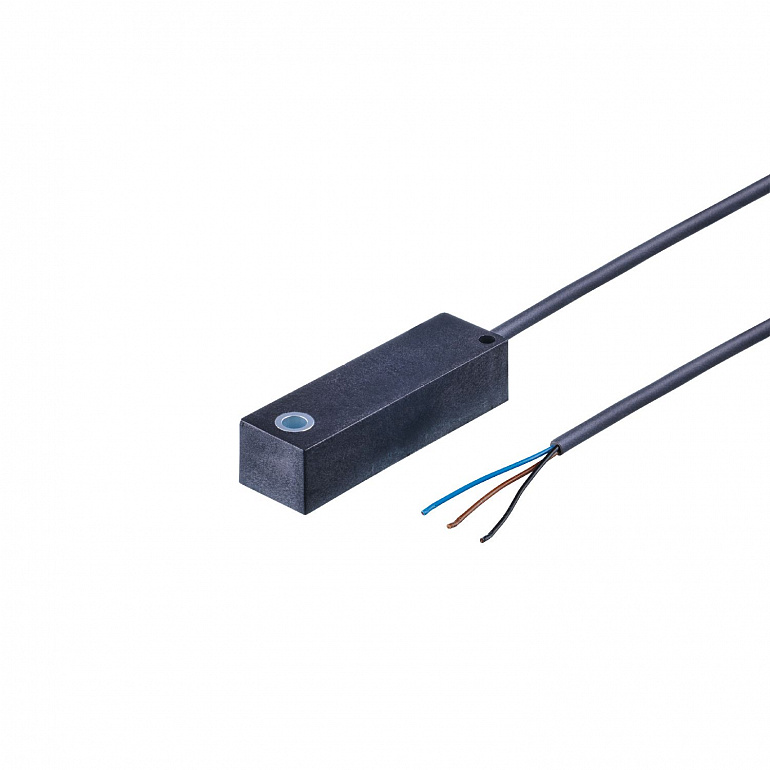

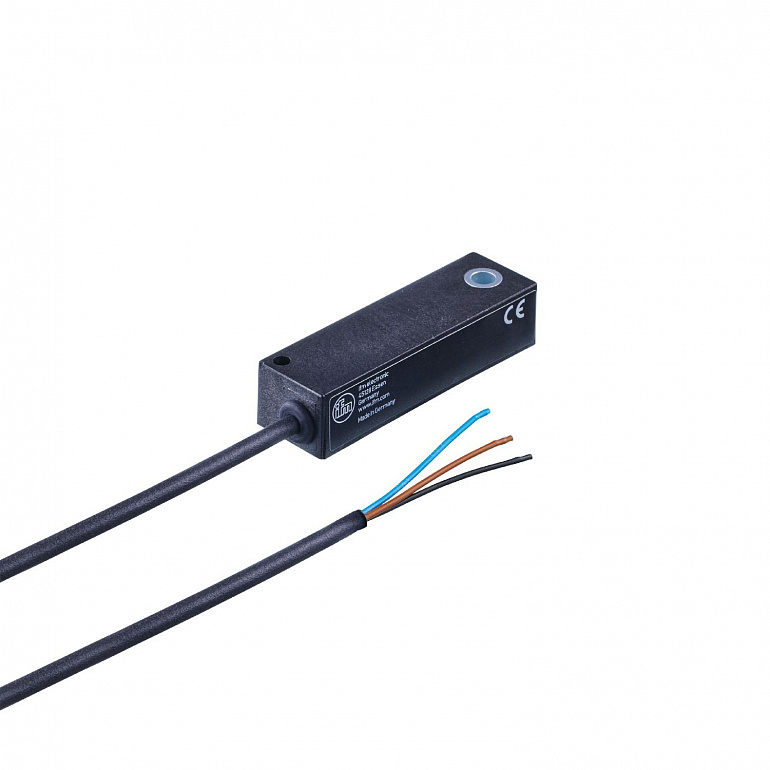

| Number of measurement axes |
1; (Z) |
| Angular range |
1…-6 |
| Housing |
rectangular |
| Function principle |
static |
| Principle of operation |
noble metal with liquid |
| Application |
Industrial applications; Mobile applications |
| Operating voltage |
8...30 DC |
| Max. current consumption |
700 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Number of inputs and outputs |
Number of digital outputs: 1 |
| Output signal |
switching signal; (see characteristics) |
| Number of digital outputs |
1 |
| Output function |
normally open |
| Note on setpoint SP |
| Set point (ON): 0° = horizontal (absolute) installation position | | Reset point (OFF): -2...-5° (counterclockwise movement of the cable outlet) | | hysteresis SP and RP: +/- 1° |
|
| Number of measurement axes |
1; (Z) |
| Angular range |
1…-6 |
| Accuracy |
0,2 |
| Repeatability |
<0,2 |
| Ambient temperature |
-30...80 |
| Storage temperature |
-30...80 |
| Protection |
IP 67 |
| EMC |
| EN 61000-4-2 ESD | 4 kV | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | EN 61000-6-3 noise emission | class B |
|
| Shock resistance |
| EN 60068-2-29 | 30 g 6 ms / 24000 shocks |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 10 g (10...500 Hz) / 10 frequency cycles in 3 axes | | DIN EN 60068-2-64 | (10...2000 Hz) / 32 hours in 3 axes |
|
| MTTF |
571 |
| Weight |
226.9 |
| Housing |
rectangular |
| Type of mounting |
Metallbuchse Ø 6,3 mm zur Befestigung des Neigungsschalters Loch Ø 4,5 mm zur Fixierung des Neigungsschalters |
| Dimensions |
75 x 22 x 18 |
| Mounting orientation |
Horizontal |
| Pack quantity |
1 pcs. |
| Connection |
Cable: 3.1 m, PVC |
