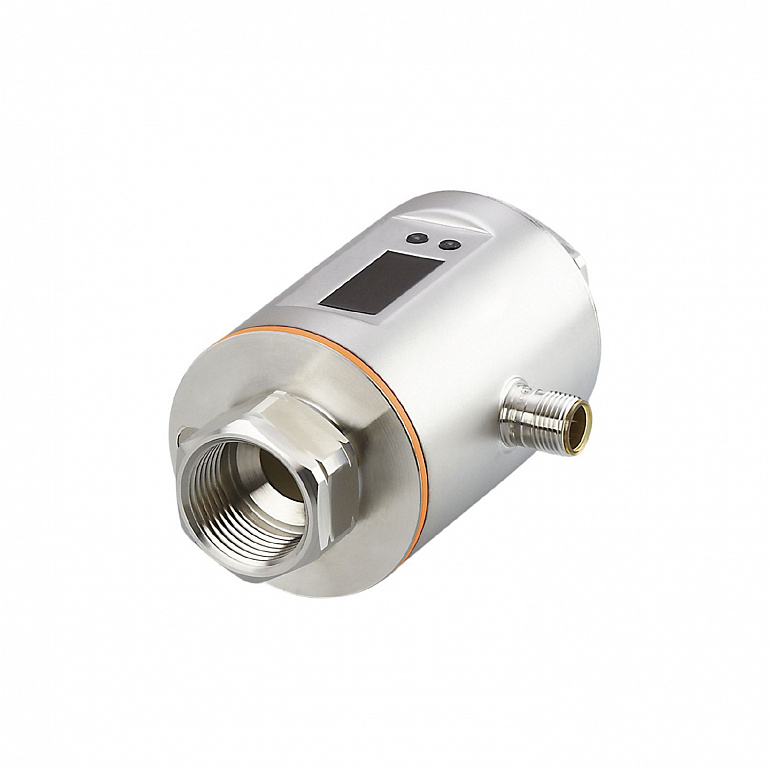

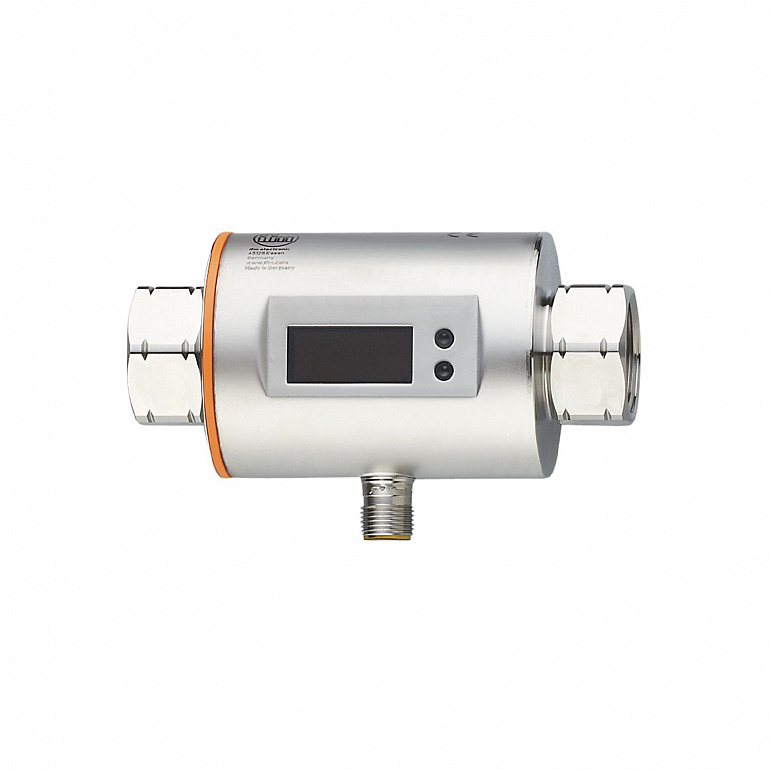

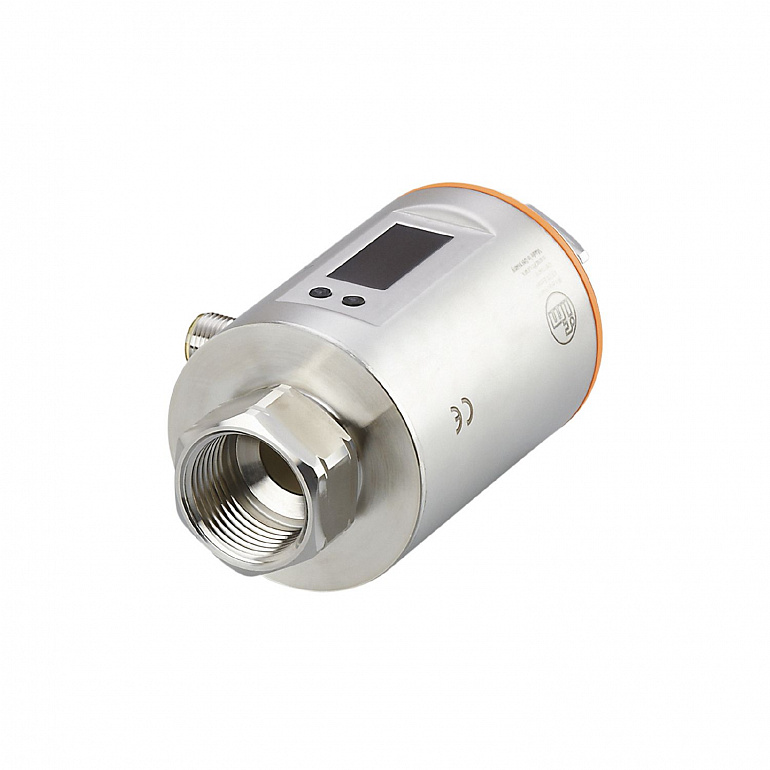

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Measuring range |
<table><tr><td>0.2...50 l/min</td><td>0.01...3 m³/h</td></tr></table> |
| Process connection |
threaded connection Rc 3/4 Internal thread DN20 |
| Application |
|
| System |
gold-plated contacts |
| Application |
Totalizer function; for industrial applications |
| Media |
Conductive liquids; water; water-based media |
| Note on media |
<table><tr><td>conductivity: ≥ 20 µS/cm</td></tr><tr><td>viscosity: < 70 mm²/s (40 °C)</td></tr></table> |
| Medium temperature |
-10...70 |
| Pressure rating |
<table><tr><td>16 bar</td><td>1.6 MPa</td></tr></table> |
| MAWP (for applications according to CRN) |
<table><tr><td>10.4 bar</td><td>1.04 MPa</td></tr></table> |
| Electrical data |
|
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
95; (24 V) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
5 |
| Measuring principle |
magnetic-inductive |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Inputs |
|
| Inputs |
counter reset |
| Outputs |
|
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; pulse signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
200 |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable) |
| Max. load |
500 |
| Analog voltage output |
0...10; (scalable) |
| Min. load resistance |
2000 |
| Pulse output |
flow rate meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring/setting range |
|
| Measuring range |
<table><tr><td>0.2...50 l/min</td><td>0.01...3 m³/h</td></tr></table> |
| Display range |
<table><tr><td>-60...60 l/min</td><td>-3.6...3.6 m³/h</td></tr></table> |
| Resolution |
<table><tr><td>0.1 l/min</td><td>0.001 m³/h</td></tr></table> |
| Set point SP |
<table><tr><td>0.5...50 l/min</td><td>0.027...3 m³/h</td></tr></table> |
| Reset point rP |
<table><tr><td>0.2...49.8 l/min</td><td>0.012...2.985 m³/h</td></tr></table> |
| Analog start point ASP |
<table><tr><td>0...40 l/min</td><td>0...2.4 m³/h</td></tr></table> |
| Analog end point AEP |
<table><tr><td>10...50 l/min</td><td>0.6...3 m³/h</td></tr></table> |
| In steps of |
<table><tr><td>0.1 l/min</td><td>0.001 m³/h</td></tr></table> |
| Volumetric flow quantity monitoring |
|
| Pulse value |
0.00001...50 000 m³ |
| Pulse length |
0,005...2 |
| Temperature monitoring |
|
| Dynamic response T05 / T09 |
T09 = 20 (Q > 5 l/min) |
| Accuracy / deviations |
|
| Flow monitoring |
|
| Response time |
0.15; (dAP = 0, T19) |
| Delay time programmable dS, dr |
0...50 |
| Damping process value dAP |
0...5 |
| Reaction times |
|
| Software / programming |
|
| Parameter setting options |
Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / closed; switching logic; current/voltage/pulse output; Start-up delay; display can be deactivated; Display unit |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr></table> |
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
3 |
| Process data binary |
2 |
| Min. process cycle time |
5 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>572</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-10...60 |
| Storage temperature |
-25...80 |
| Protection |
IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 60947-5-9</td><td></td></tr></table> |
| CPA approval |
<table><tr><td>model number</td><td>001MI</td></tr><tr><td>accuracy class</td><td>-</td></tr><tr><td>maximum allowable error</td><td>± 1,5 % FS</td></tr><tr><td>Q (min)</td><td>0,01 m³/h</td></tr><tr><td>Q (t)</td><td>-</td></tr><tr><td>Q (max)</td><td>3 |
| Shock resistance |
<table><tr><td>DIN IEC 68-2-27</td><td>20 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN IEC 68-2-6</td><td>5 g (10...2000 Hz)</td></tr></table> |
| MTTF |
145 |
| UL approval |
<table><tr><td>UL approval number</td><td>I010 </td></tr></table> |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
|
| Weight |
581 |
| Housing |
tubular |
| Dimensions |
Ø 54 / L = 110 |
| Material |
stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); PEEK; FKM |
| Process connection |
threaded connection Rc 3/4 Internal thread DN20 |
| Displays / operating elements |
|
| Display |
<table><tr><td>Display unit</td><td>6 x LED, green (l/min, m³/h, l, m³, 10³, °C)</td></tr><tr><td>Switching status</td><td>2 x LED, yellow</td></tr><tr><td>Measured values</td><td>alphanumeric display, 4-digit</td></tr><tr><td>Programming</td><td>alphanum |
| Remarks |
|
| Remarks |
<table><tr><td>MW = Measured value</td></tr><tr><td>MEW = Final value of the measuring range</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
