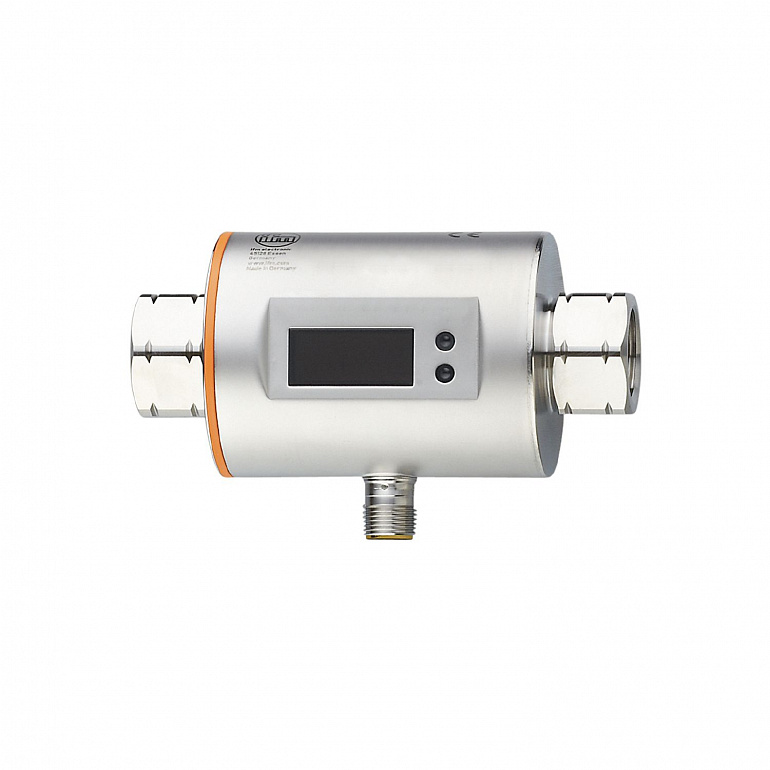

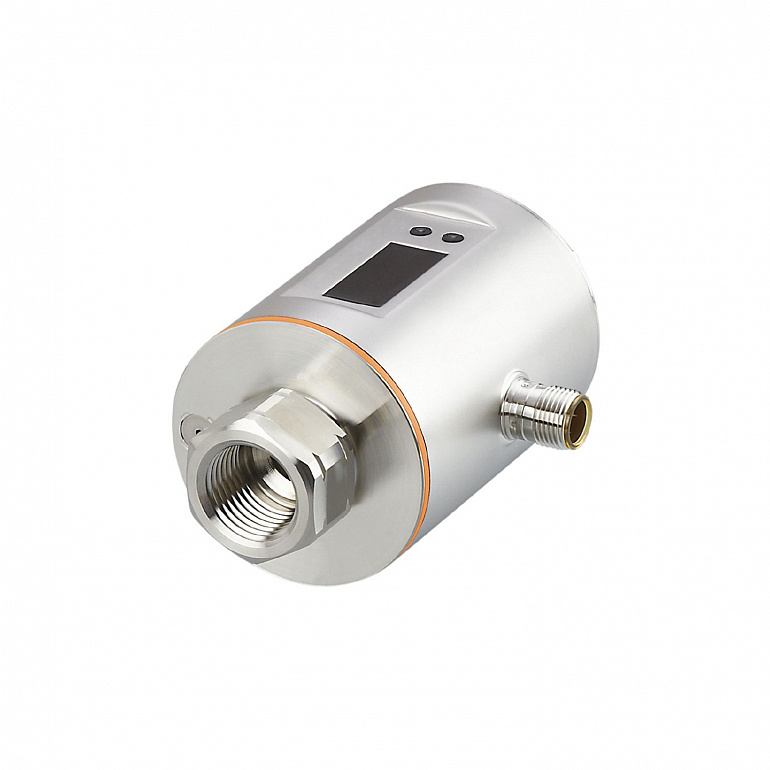

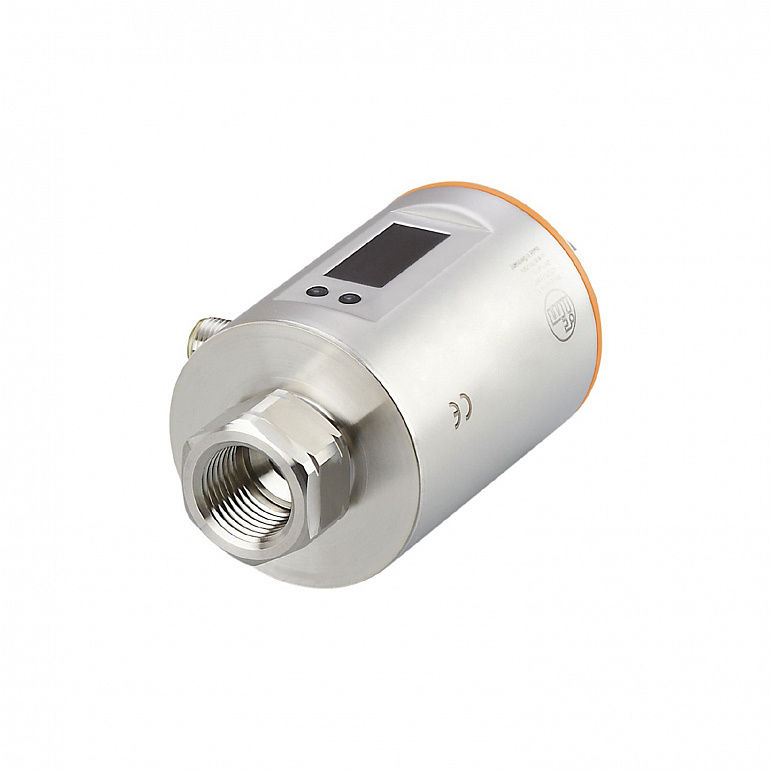

| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Measuring range |
| 0.1...25 l/min | 0.005...1.5 m³/h |
|
| Process connection |
threaded connection Rc 1/2 Internal thread DN15 |
| System |
gold-plated contacts |
| Application |
Totalizer function; for industrial applications |
| Media |
Conductive liquids; water; water-based media |
| Note on media |
| conductivity: ≥ 20 µS/cm | | viscosity: < 70 mm²/s (40 °C) |
|
| Medium temperature |
-10...70 |
| Pressure rating |
|
| MAWP (for applications according to CRN) |
|
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
95; (24 V) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
5 |
| Measuring principle |
magnetic-inductive |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Inputs |
counter reset |
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; pulse signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
200 |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable) |
| Max. load |
500 |
| Analog voltage output |
0...10; (scalable) |
| Min. load resistance |
2000 |
| Pulse output |
flow rate meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring range |
| 0.1...25 l/min | 0.005...1.5 m³/h |
|
| Display range |
| -30...30 l/min | -1.8...1.8 m³/h |
|
| Resolution |
|
| Set point SP |
| 0.25...25 l/min | 0.015...1.5 m³/h |
|
| Reset point rP |
| 0.1...24.9 l/min | 0.005...1.495 m³/h |
|
| Analog start point ASP |
|
| Analog end point AEP |
| 5...25 l/min | 0.3...1.5 m³/h |
|
| In steps of |
|
| Pulse value |
0.00001...30 000 m³ |
| Pulse length |
0,01...2 |
| Dynamic response T05 / T09 |
T09 = 20 (Q > 1 l/min) |
| Response time |
0.15; (dAP = 0, T19) |
| Delay time programmable dS, dr |
0...50 |
| Damping process value dAP |
0...5 |
| Parameter setting options |
Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / closed; switching logic; current/voltage/pulse output; Start-up delay; display can be deactivated; Display unit |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
3 |
| Process data binary |
2 |
| Min. process cycle time |
5 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 569 |
|
| Ambient temperature |
-10...60 |
| Storage temperature |
-25...80 |
| Protection |
IP 67 |
| EMC |
|
| CPA approval |
| model number | 001MI | | accuracy class | - | | maximum allowable error | ± 1,5 % FS | | Q (min) | 0,005 m³/h | | Q (t) | - | | Q (max) | 1,5 m³/h |
|
| Shock resistance |
| DIN IEC 68-2-27 | 20 g (11 ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 5 g (10...2000 Hz) |
|
| MTTF |
145 |
| UL approval |
|
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
580.5 |
| Housing |
tubular |
| Dimensions |
Ø 54 / L = 110 |
| Material |
stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); PEEK; EPDM |
| Process connection |
threaded connection Rc 1/2 Internal thread DN15 |
| Display |
| Display unit | 6 x LED, green (l/min, m³/h, l, m³, 10³, °C) | | Switching status | 2 x LED, yellow | | Measured values | alphanumeric display, 4-digit | | Programming | alphanumeric display, 4-digit |
|
| Remarks |
| MW = Measured value | | MEW = Final value of the measuring range |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
