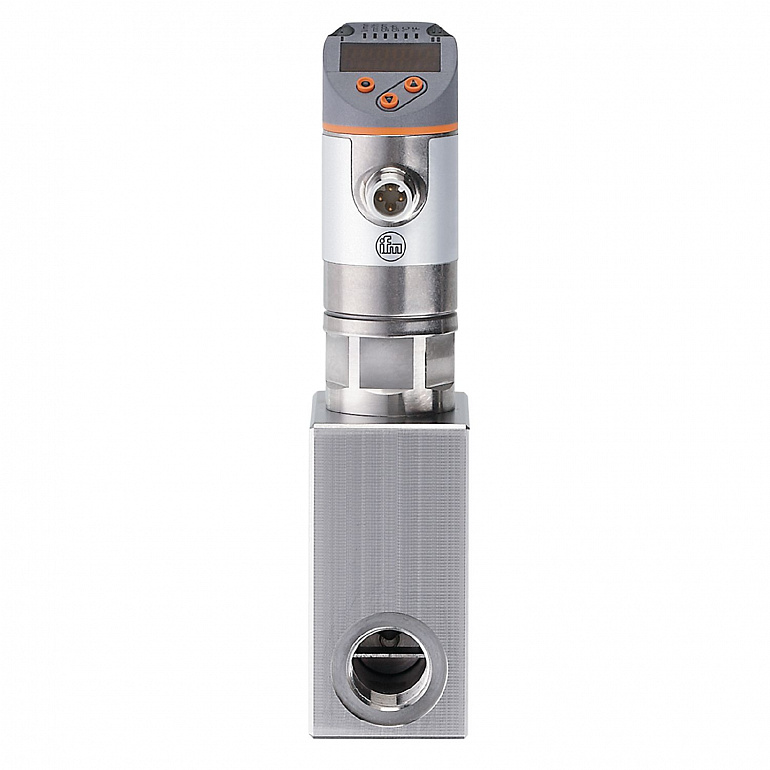

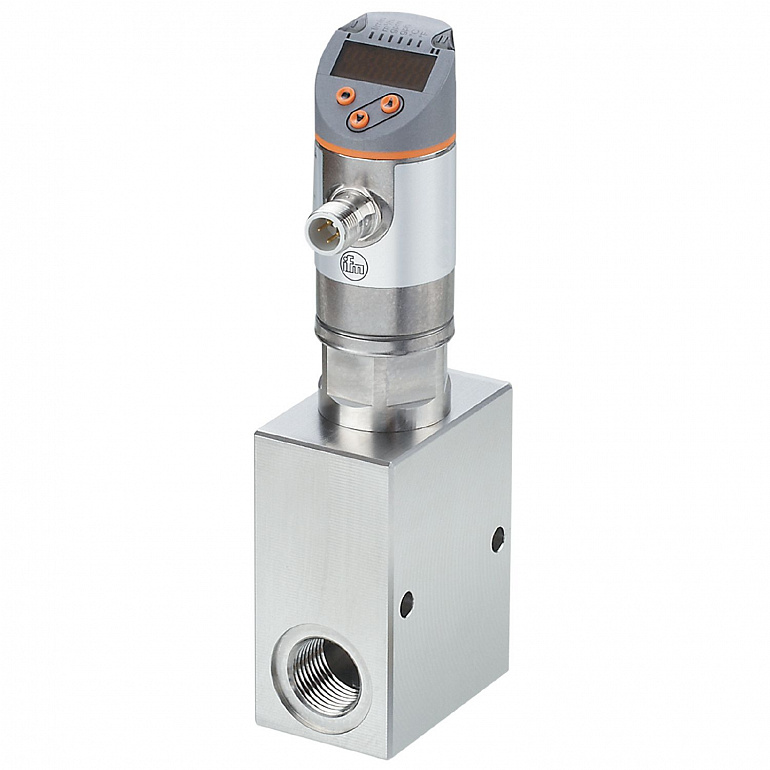

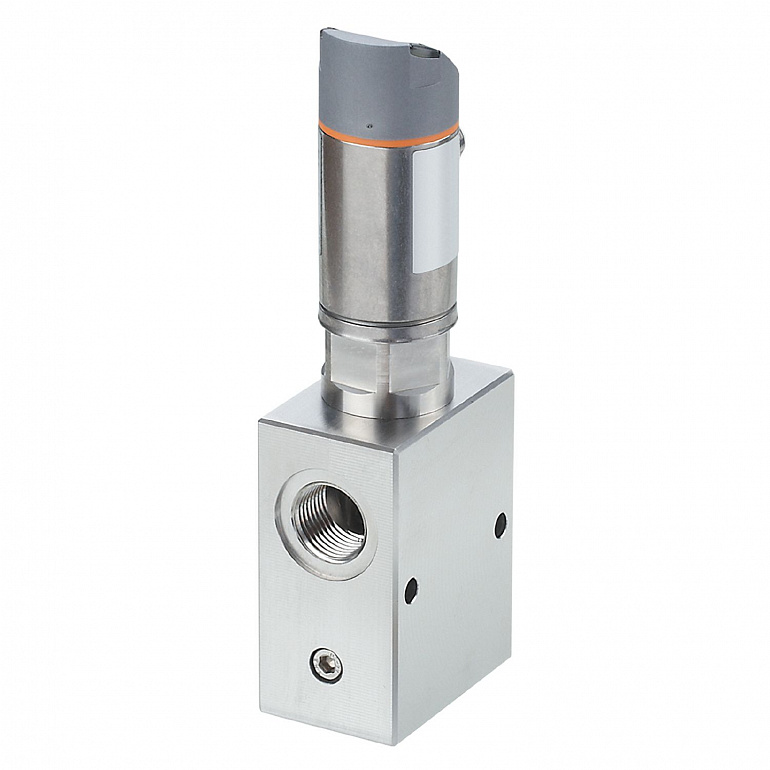

| Measuring range |
| 1...50 l/min | 0.06...3 m³/h | 16...793 gph | 0.26...13.2 gpm |
|
| Process connection |
threaded connection G 1/2 Internal thread |
| System |
gold-plated contacts |
| Media |
Liquids; water; glycol solutions; Coolants |
| Medium temperature |
-10...100 |
| Pressure rating |
|
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 3 |
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; frequency signal; IO-Link |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Max. current load per output |
150; (200: ...60 °C; Ambient temperature; 250: ...40 °C; Ambient temperature) |
| Analog current output |
4...20 |
| Max. load |
500 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Frequency of the output |
0...10000 |
| Measuring range |
| 1...50 l/min | 0.06...3 m³/h | 16...793 gph | 0.26...13.2 gpm |
|
| Display range |
| 0...60 l/min | 0...3.6 m³/h | 0...951 gph | 0...15.86 gpm |
|
| Resolution |
| 0.01 l/min | 0.001 m³/h | 1 gph | 0.01 gpm |
|
| Set point SP |
| 0.35...50 l/min | 0.02...3 m³/h | 5...793 gph | 0.08...13.2 gpm |
|
| Reset point rP |
| 0...49.65 l/min | 0...2.98 m³/h | 0...787 gph | 0...13.12 gpm |
|
| Frequency end point, FEP |
| 3.35...50 l/min | 0.2...3 m³/h | 53...793 gph | 0.88...13.2 gpm |
|
| In steps of |
10 |
| Frequency at the end point FRP |
10...10000 |
| Measuring dynamics |
1:50 |
| Dynamic response T05 / T09 |
T09 = 120 (Q > 1 l/min) |
| Response time |
0.01 |
| Damping process value dAP |
0...5 |
| In steps of |
0.1 |
| Damping for the analog output dAA |
0...5 |
| Parameter setting options |
hysteresis / window; normally open / closed; switching logic; current/frequency output; damping for the switching output / analog output; display can be rotated and switched off; standard unit of measurement; process value color; calibration factor |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
2 |
| Process data binary |
2 |
| Min. process cycle time |
3.2 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1447 |
|
| Ambient temperature |
0...60 |
| Note on ambient temperature |
| medium temperature < 80 °C | | medium temperature < 100 °C: 0...40 °C |
|
| Storage temperature |
-15...80 |
| Protection |
IP 65; IP 67 |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-3 | |
|
| Shock resistance |
| DIN EN 60068-2-27 | 20 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 5 g (10...2000 Hz) |
|
| MTTF |
170 |
| Pressure equipment directive |
sound engineering practice |
| Weight |
1734.3 |
| Housing |
rectangular |
| Dimensions |
175.5 x 59 x 39 |
| Material |
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC |
| Materials (wetted parts) |
stainless steel (1.4401 / 316); stainless steel (1.4404 / 316L); O-ring: FKM |
| Process connection |
threaded connection G 1/2 Internal thread |
| Switching cycles mechanical |
10 million |
| Display |
| Display unit | 6 x LED, green | | Switching status | 2 x LED, yellow | | Measured values | alphanumeric display, red/green alternating indication 4-digit | | Programming | alphanumeric display, 4-digit |
|
| Remarks |
| Use of 200 micron filtration is recommended. | | All data refer to water (20 °C). | | Mounting orientation upright | | MW = Measured value | | MEW = Final value of the measuring range |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
