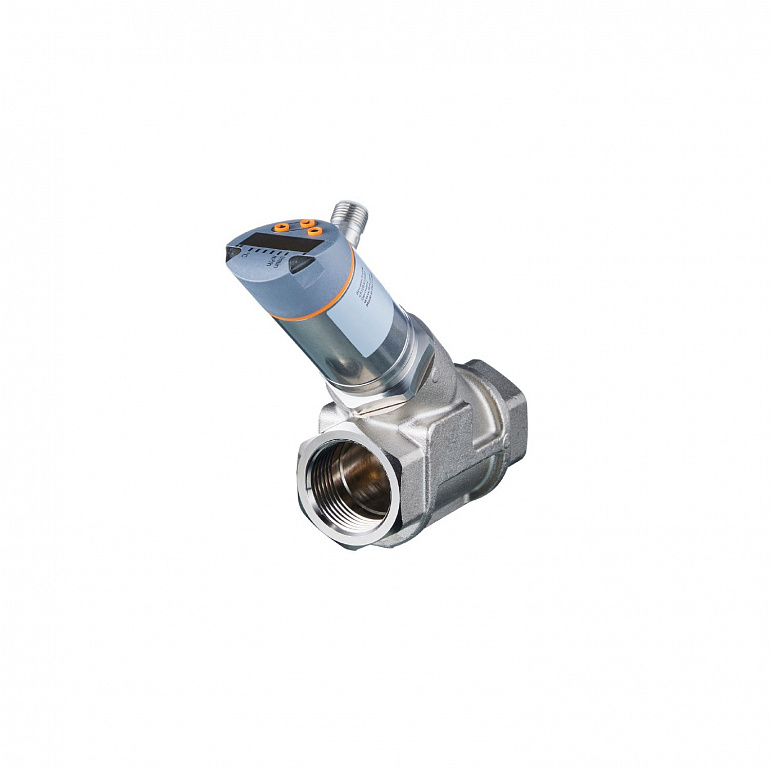

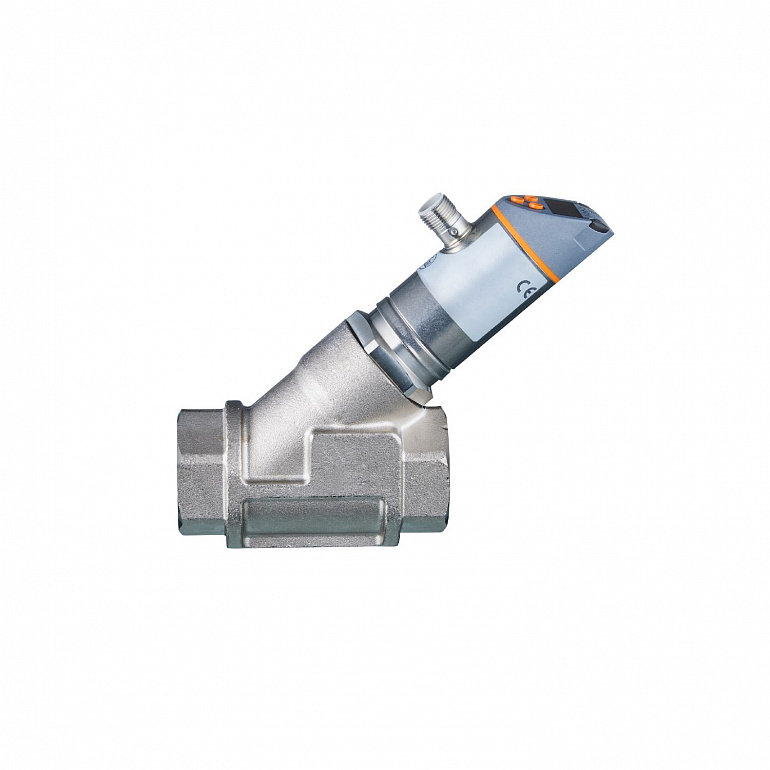

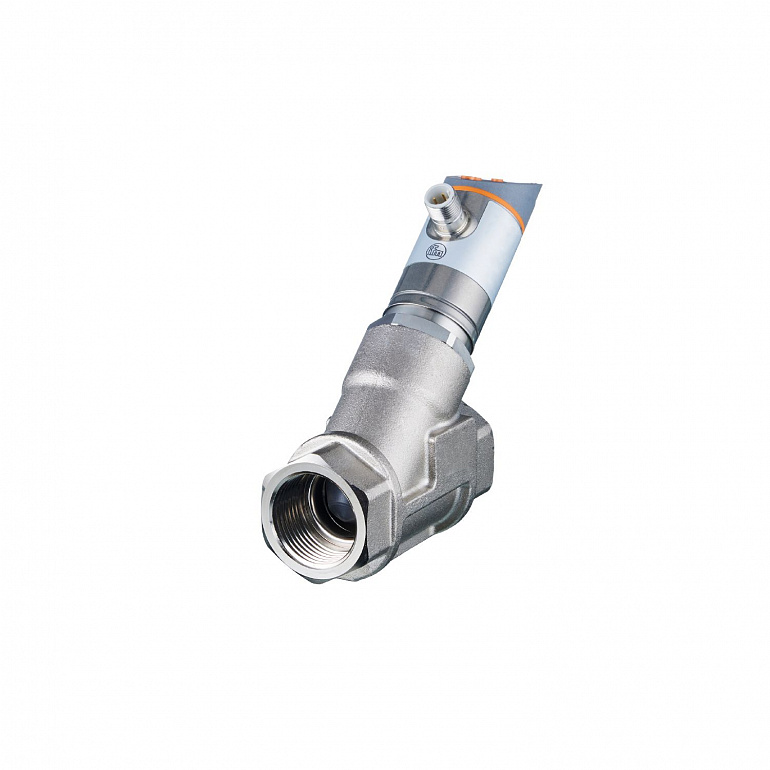

| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Measuring range |
| 2...100 l/min | 0.12...6 m³/h |
|
| Process connection |
threaded connection Rp 1 Internal thread |
| System |
gold-plated contacts |
| Application |
for industrial applications |
| Media |
Liquids; water; glycol solutions; Coolants |
| Note on media |
| oil 1 with viscosity: 10 mm²/s (40 °C) | | oil 2 with viscosity: 46 mm²/s (40 °C) |
|
| Medium temperature |
-10...100 |
| Pressure rating |
|
| MAWP (for applications according to CRN) |
25 |
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 3 |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; frequency signal; IO-Link; (configurable) |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
150; (per output 2 x 200 (...60 °C); 2 x 250 (...40 °C)) |
| Switching cycles (mechanical) |
10 million |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
500 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Frequency of the output |
0...10000 |
| Measuring range |
| 2...100 l/min | 0.12...6 m³/h |
|
| Display range |
| 0...120 l/min | 0...7.2 m³/h |
|
| Resolution |
|
| Set point SP |
| 1...100 l/min | 0.05...6 m³/h |
|
| Reset point rP |
| 0...99 l/min | 0...5.95 m³/h |
|
| Frequency end point, FEP |
| 6.5...100 l/min | 0.4...6 m³/h |
|
| In steps of |
|
| Frequency at the end point FRP |
10...10000 |
| Measuring dynamics |
1:50 |
| Dynamic response T05 / T09 |
T09 = 120 (Q > 1 l/min) |
| Response time |
0.01 |
| Damping process value dAP |
0...5 |
| Damping for the analog output dAA |
0...5 |
| Parameter setting options |
hysteresis / window; normally open / closed; switching logic; current/frequency output; medium selection; damping for the switching output / analog output; display can be rotated and switched off; standard unit of measurement; process value color |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
2 |
| Process data binary |
2 |
| Min. process cycle time |
3.2 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 563 |
|
| Ambient temperature |
0...60 |
| Note on ambient temperature |
| medium temperature < 80 °C | | medium temperature < 100 °C: 0...40 °C |
|
| Storage temperature |
-15...80 |
| Protection |
IP 65; IP 67 |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-3 | |
|
| Shock resistance |
| DIN EN 60068-2-27 | 20 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 5 g (10...2000 Hz) |
|
| MTTF |
145 |
| UL approval |
| UL approval number | I006 | | File number UL | E174189 |
|
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
1286 |
| Material |
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC; brass chemically nickel-plated |
| Materials (wetted parts) |
stainless steel (1.4401 / 316); stainless steel (1.4404 / 316L); brass (2.0371); brass chemically nickel-plated; PPS; O-ring: FKM |
| Process connection |
threaded connection Rp 1 Internal thread |
| Display |
| Display unit | 3 x LED, green | | Switching status | 2 x LED, yellow | | Measured values | alphanumeric display, red/green 4-digit | | Programming | alphanumeric display, 4-digit |
|
| Remarks |
| Use of 200 micron filtration is recommended. | | All data refer to water (20 °C). | | MW = Measured value | | MEW = Final value of the measuring range |
|
| Notes |
Please note the changed housing design! |
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
