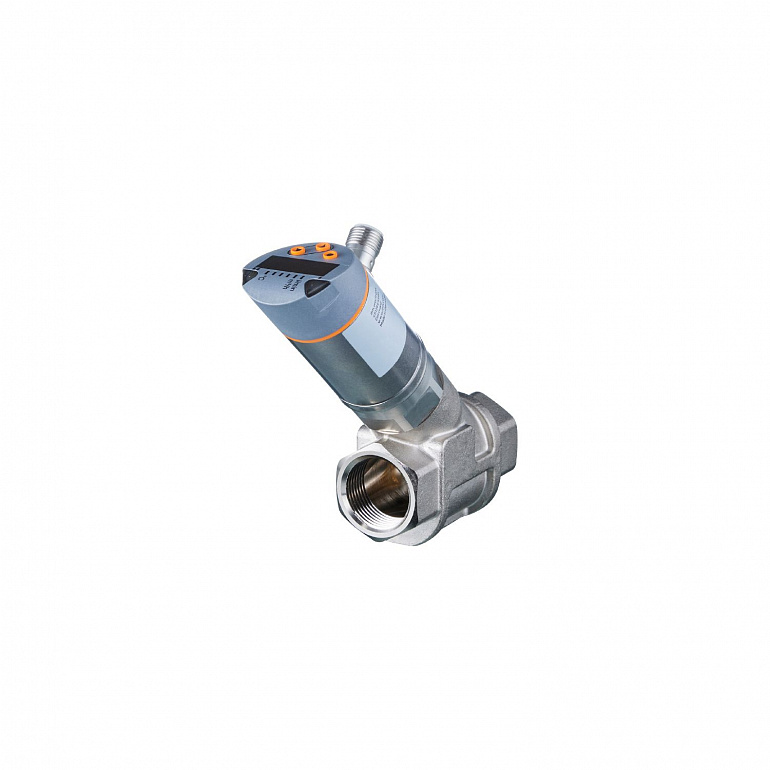

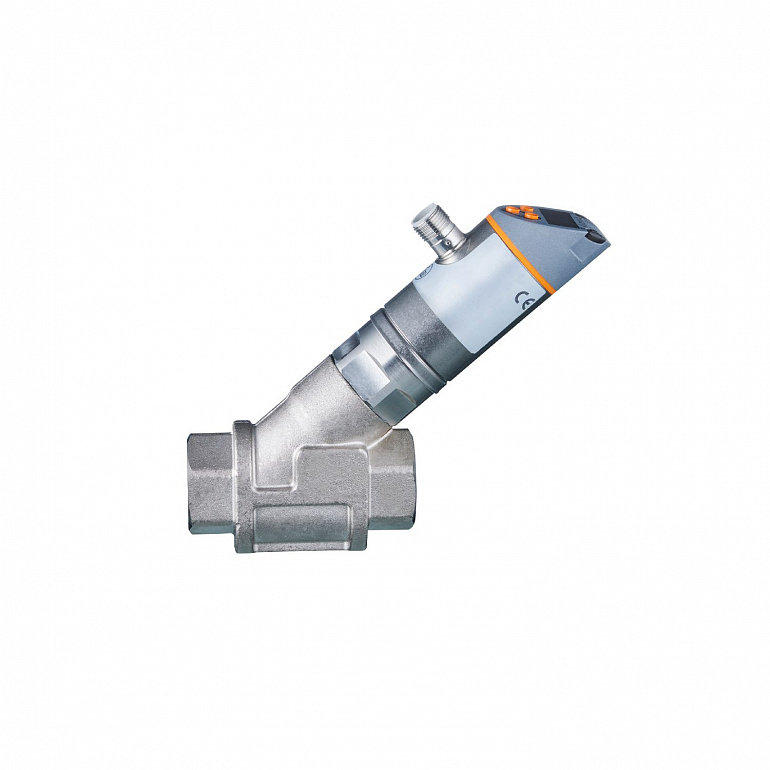

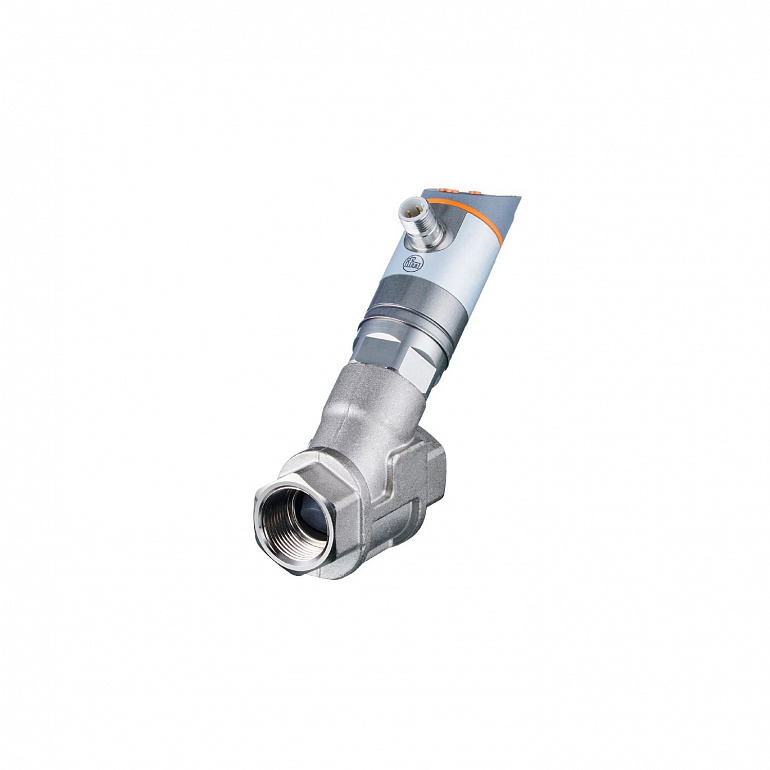

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Measuring range |
<table><tr><td>1...50 l/min</td><td>0.06...3 m³/h</td></tr></table> |
| Process connection |
threaded connection Rp 3/4 Internal thread |
| Application |
|
| System |
gold-plated contacts |
| Application |
for industrial applications |
| Media |
Liquids; water; glycol solutions; Coolants |
| Note on media |
<table><tr><td>oil 1 with viscosity: 10 mm²/s (40 °C)</td></tr><tr><td>oil 2 with viscosity: 46 mm²/s (40 °C)</td></tr></table> |
| Medium temperature |
-10...100 |
| Pressure rating |
<table><tr><td>40 bar</td><td>4 MPa</td></tr></table> |
| MAWP (for applications according to CRN) |
40 |
| Electrical data |
|
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 3 |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Outputs |
|
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; frequency signal; IO-Link; (configurable) |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
150; (per output 2 x 200 (...60 °C); 2 x 250 (...40 °C)) |
| Switching cycles (mechanical) |
10 million |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
500 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Frequency of the output |
0...10000 |
| Measuring/setting range |
|
| Measuring range |
<table><tr><td>1...50 l/min</td><td>0.06...3 m³/h</td></tr></table> |
| Display range |
<table><tr><td>0...60 l/min</td><td>0...3.6 m³/h</td></tr></table> |
| Resolution |
<table><tr><td>0.5 l/min</td><td>0.01 m³/h</td></tr></table> |
| Set point SP |
<table><tr><td>0.5...50 l/min</td><td>0.02...3 m³/h</td></tr></table> |
| Reset point rP |
<table><tr><td>0...49.5 l/min</td><td>0...2.98 m³/h</td></tr></table> |
| Frequency end point, FEP |
<table><tr><td>3.5...50 l/min</td><td>0.2...3 m³/h</td></tr></table> |
| In steps of |
<table><tr><td>0.5 l/min</td><td>0.01 m³/h</td></tr></table> |
| Frequency at the end point FRP |
10...10000 |
| Measuring dynamics |
1:50 |
| Temperature monitoring |
|
| Dynamic response T05 / T09 |
T09 = 120 (Q > 1 l/min) |
| Accuracy / deviations |
|
| Flow monitoring |
|
| Response time |
0.01 |
| Damping process value dAP |
0...5 |
| Damping for the analog output dAA |
0...5 |
| Reaction times |
|
| Software / programming |
|
| Parameter setting options |
hysteresis / window; normally open / closed; switching logic; current/frequency output; medium selection; damping for the switching output / analog output; display can be rotated and switched off; standard unit of measurement; process value color |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr></table> |
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
2 |
| Process data binary |
2 |
| Min. process cycle time |
3.2 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>562</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
0...60 |
| Note on ambient temperature |
<table><tr><td>medium temperature < 80 °C </td></tr><tr><td>medium temperature < 100 °C: 0...40 °C</td></tr></table> |
| Storage temperature |
-15...80 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-6-2</td><td></td></tr><tr><td>DIN EN 61000-6-3</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>20 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>5 g (10...2000 Hz)</td></tr></table> |
| MTTF |
145 |
| UL approval |
<table><tr><td>UL approval number</td><td>I005 </td></tr><tr><td>File number UL</td><td>E174189 </td></tr></table> |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
|
| Weight |
734.4 |
| Material |
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC; brass chemically nickel-plated |
| Materials (wetted parts) |
stainless steel (1.4401 / 316); stainless steel (1.4404 / 316L); brass (2.0371); brass chemically nickel-plated; PPS; O-ring: FKM |
| Process connection |
threaded connection Rp 3/4 Internal thread |
| Displays / operating elements |
|
| Display |
<table><tr><td>Display unit</td><td>3 x LED, green</td></tr><tr><td>Switching status</td><td>2 x LED, yellow</td></tr><tr><td>Measured values</td><td>alphanumeric display, red/green 4-digit</td></tr><tr><td>Programming</td><td>alphanumeric display, 4-digi |
| Remarks |
|
| Remarks |
<table><tr><td> Use of 200 micron filtration is recommended.</td></tr><tr><td> All data refer to water (20 °C).</td></tr><tr><td>MW = Measured value</td></tr><tr><td>MEW = Final value of the measuring range</td></tr></table> |
| Notes |
Please note the changed housing design! |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
