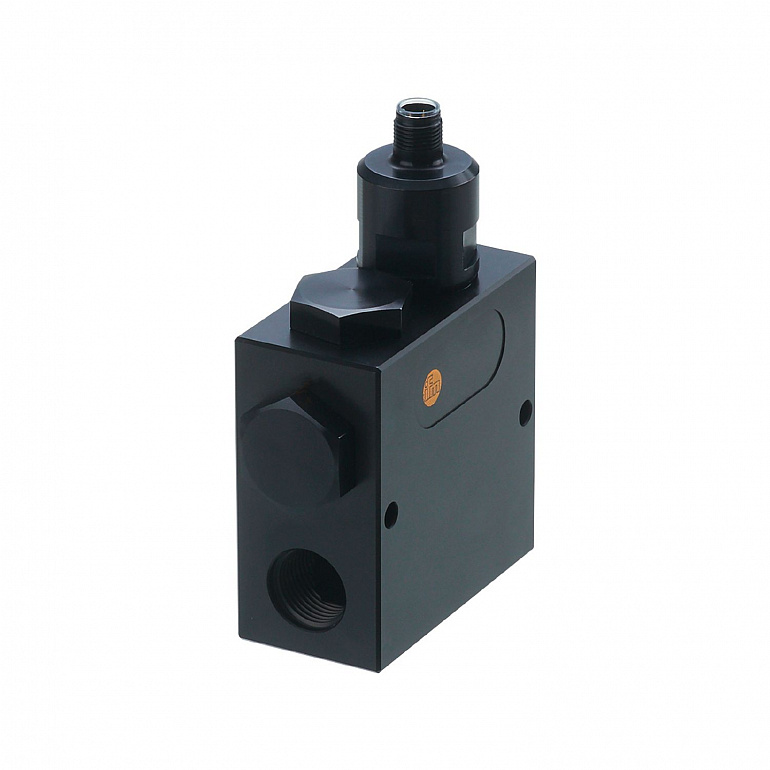

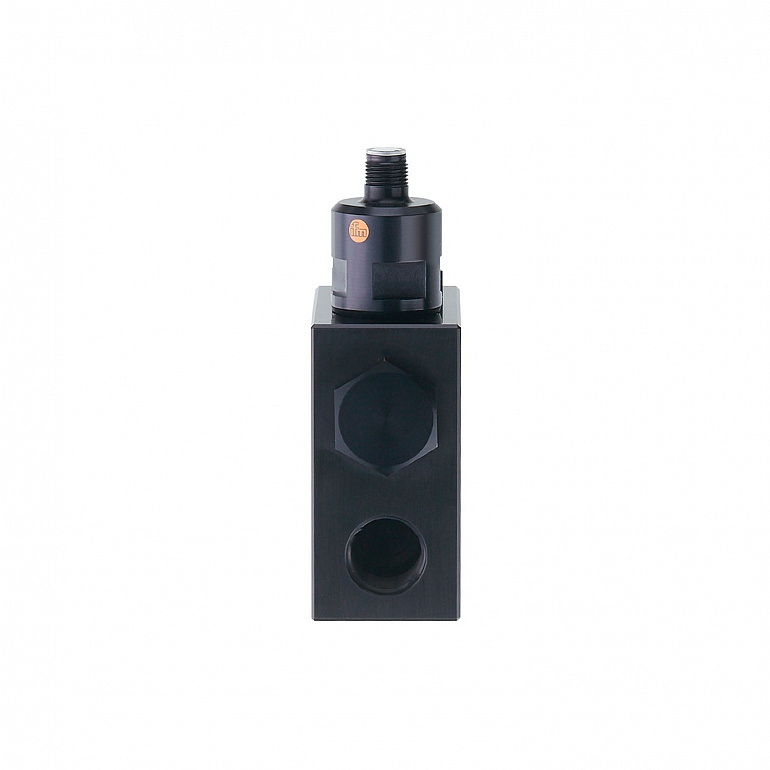

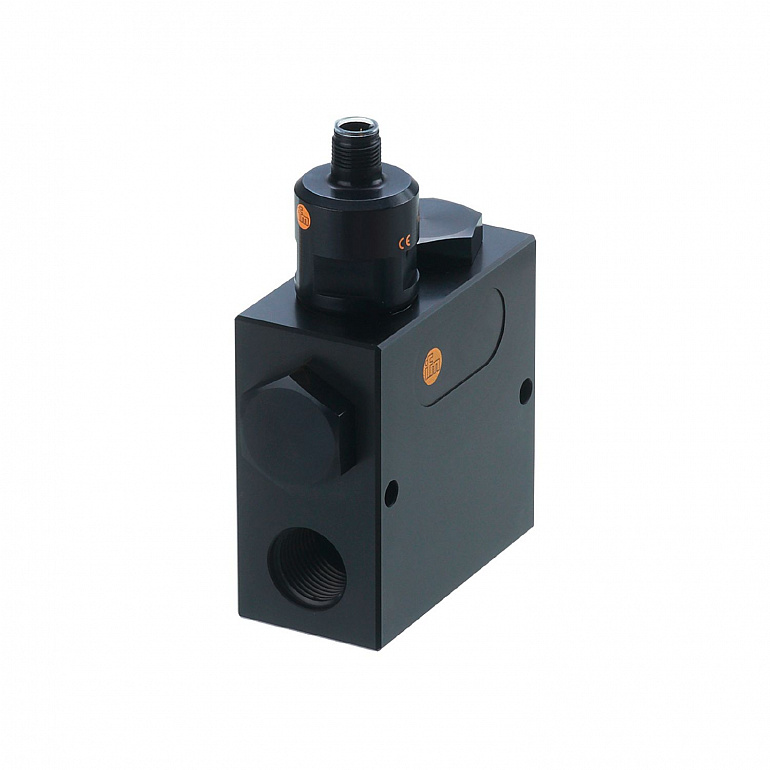

| Product characteristics |
|
| Measuring range |
0.3...25 |
| Process connection |
threaded connection G 1/2 Internal thread |
| Application |
|
| Application |
Machine tools; Internal cooling of drill |
| Media |
Liquids; water; glycol solutions; Coolants |
| Medium temperature |
0...60 |
| Pressure rating |
<table><tr><td>200 bar</td><td>20 MPa</td></tr></table> |
| Electrical data |
|
| Operating voltage tolerance |
-15...10 |
| Operating voltage |
24 DC; (to SELV/PELV) |
| Current consumption |
10 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Outputs |
|
| Output signal |
analog signal |
| Analog voltage output |
0.5...10 |
| Min. load resistance |
10000 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Measuring/setting range |
|
| Measuring range |
0.3...25 |
| Flow range |
75 |
| Accuracy / deviations |
|
| Repeatability |
1 |
| Measuring error |
± 5 |
| Reaction times |
|
| Response time |
< 0.01 |
| Operating conditions |
|
| Ambient temperature |
0...60 |
| Storage temperature |
-15...80 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-6-2</td><td></td></tr><tr><td>DIN EN 61000-6-3</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>20 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>5 g (10...2000 Hz)</td></tr></table> |
| MTTF |
3004 |
| Mechanical data |
|
| Weight |
740.5 |
| Housing |
rectangular |
| Dimensions |
124.5 x 80 x 40 |
| Material |
aluminum anodized; PA |
| Materials (wetted parts) |
stainless steel (1.4401 / 316); brass; aluminum anodized; PU; O-ring: FKM |
| Process connection |
threaded connection G 1/2 Internal thread |
| Switching cycles mechanical |
10 million |
| Accessories |
|
| Items supplied |
<table><tr><td>sealing plug</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> Temperature changes affect the specified standard settings for coolants.</td></tr><tr><td> For oils, the settings are influenced by temperature and viscosity.</td></tr><tr><td>Recommendation Use 200 micron filtration </td></tr><tr><td> All |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A |
