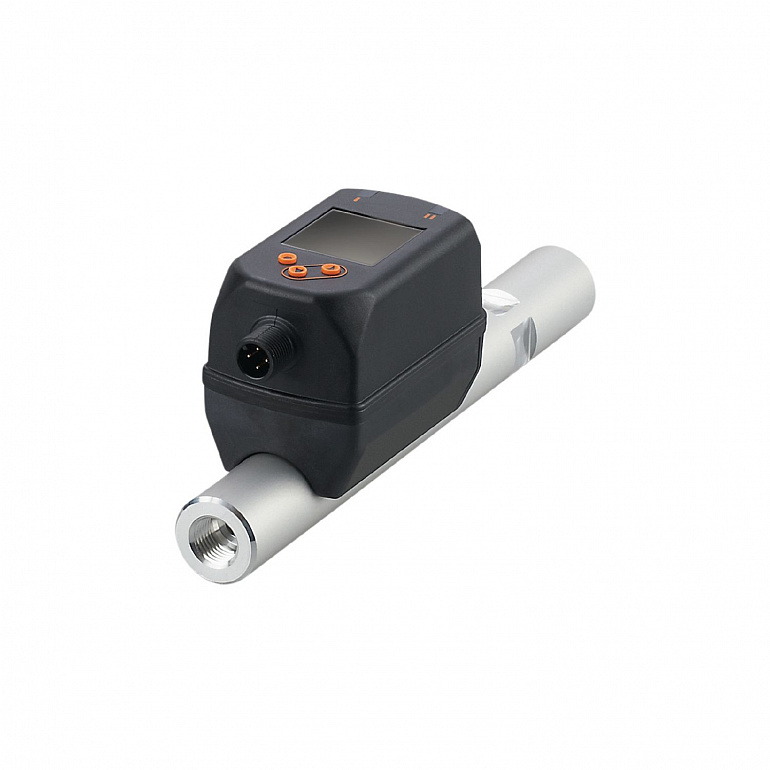

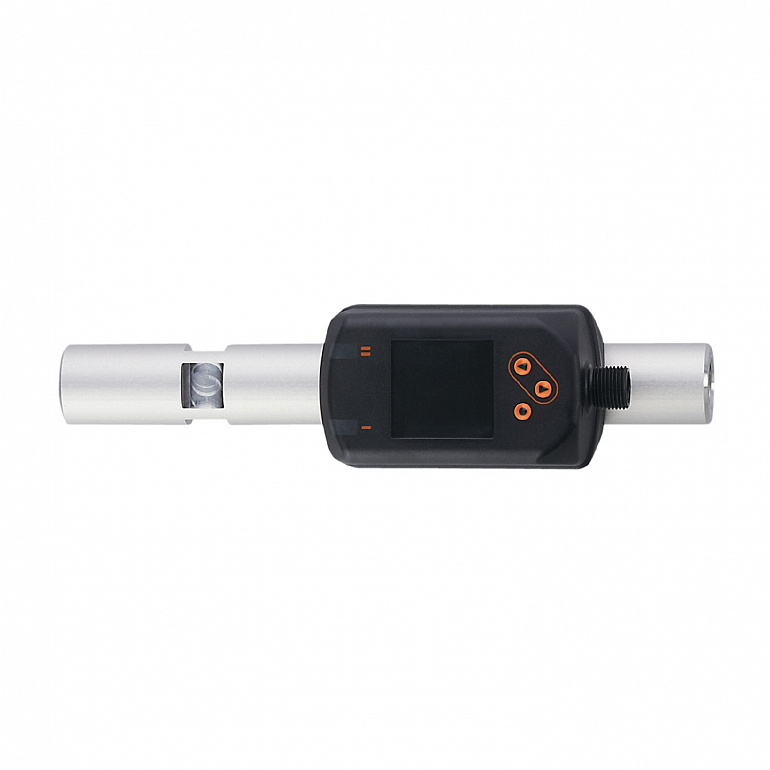

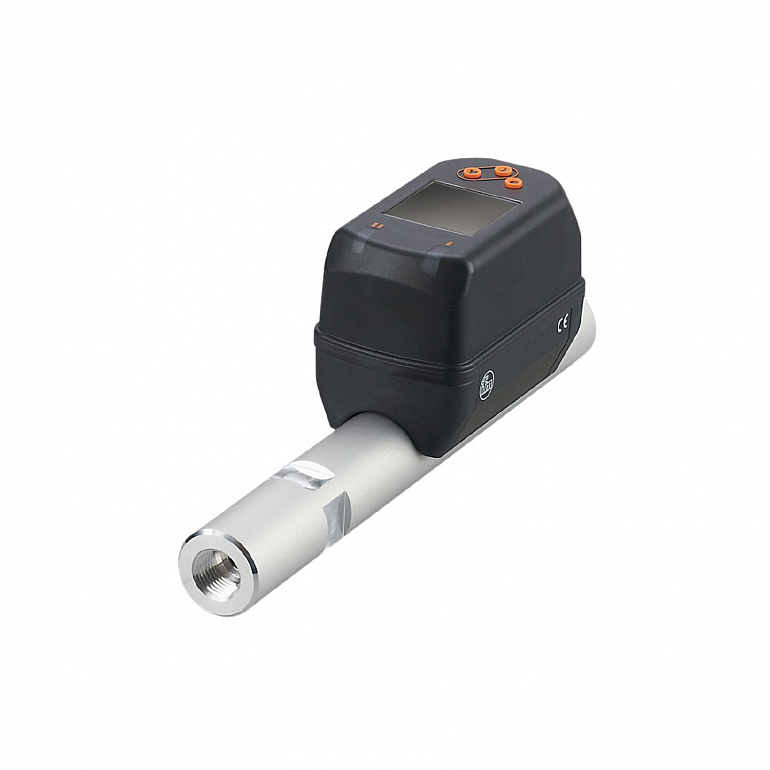

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Measuring range |
<table><tr><td>0.8...250 l/min</td><td>0.3...82.9 m/s</td><td>0.05...15 m³/h</td></tr></table> |
| Process connection |
threaded connection G 1/4 Internal thread DN8 |
| Application |
|
| Application |
for industrial applications |
| Media |
compressed air |
| Medium temperature |
-10...60 |
| Min. bursting pressure |
<table><tr><td>64 bar</td><td>6.4 MPa</td></tr></table> |
| Pressure rating |
<table><tr><td>16 bar</td><td>1.6 MPa</td></tr></table> |
| MAWP (for applications according to CRN) |
9.5 |
| Electrical data |
|
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
< 80 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
1 |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Inputs |
|
| Inputs |
counter reset |
| Outputs |
|
| Output signal |
switching signal; analog signal; pulse signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
150; (per output) |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable) |
| Max. load |
500 |
| Pulse output |
consumed quantity meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring/setting range |
|
| Measuring range |
<table><tr><td>0.8...250 l/min</td><td>0.3...82.9 m/s</td><td>0.05...15 m³/h</td></tr></table> |
| Display range |
<table><tr><td>0...300 l/min</td><td>0...99.5 m/s</td><td>0...18 m³/h</td></tr></table> |
| Resolution |
<table><tr><td>0.2 l/min</td><td>0.1 m/s</td><td>0.01 m³/h</td></tr></table> |
| Set point SP |
<table><tr><td>2.2...249.9 l/min</td><td>0.7...82.9 m/s</td><td>0.13...14.99 m³/h</td></tr></table> |
| Reset point rP |
<table><tr><td>0.9...248.7 l/min</td><td>0.3...82.5 m/s</td><td>0.06...14.92 m³/h</td></tr></table> |
| Analog start point ASP |
<table><tr><td>0...200 l/min</td><td>0...66.3 m/s</td><td>0...12 m³/h</td></tr></table> |
| Analog end point AEP |
<table><tr><td>50...250 l/min</td><td>16.6...82.9 m/s</td><td>3...15 m³/h</td></tr></table> |
| Low flow cut-off LFC |
<table><tr><td>0.3...2.7 l/min</td><td>0.1...0.9 m/s</td><td>0.02...0.16 m³/h</td></tr></table> |
| In steps of |
<table><tr><td>0.1 l/min</td><td>0.1 m/s</td><td>0.01 m³/h</td></tr></table> |
| Pressure monitoring |
|
| Response time |
0.05 |
| Volumetric flow quantity monitoring |
|
| Measuring range |
<table><tr><td>0...100000000 m³</td><td>0...353146667.2 scf</td></tr></table> |
| Display range |
<table><tr><td>0...100000000 m³</td><td>0...353146667.2 scf</td></tr></table> |
| Set point SP |
<table><tr><td>0.001...10000000 m³</td><td>0.05...353146667.2 scf</td></tr></table> |
| Pulse value |
<table><tr><td>0.001...10000000 m³</td><td>0.05...353146667.2 scf</td></tr></table> |
| In steps of |
<table><tr><td>0.0001 m³</td><td>0.005 scf</td></tr></table> |
| Pulse length |
0.01...2 |
| Temperature monitoring |
|
| Dynamic response T05 / T09 |
T09 = 0,5 |
| Accuracy / deviations |
|
| Temperature coefficient |
± 0,07 % MW |
| Accuracy (in the measuring range) |
class 141: ± (2 % MW + 0,5 % MEW); class 344: ± (6 % MW + 0,6 % MEW) ; air quality to ISO 8573-1:2010; at medium temperature 23 °C |
| Repeatability |
± (0,4 % MW + 0,1 % MEW) |
| Reaction times |
|
| Response time |
0.1; (dAP = 0) |
| Damping process value dAP |
0...5 |
| Software / programming |
|
| Parameter setting options |
hysteresis / window; normally open / closed; current/pulse output; display can be rotated and switched off; Display unit; totalizer |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
<table><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr><tr><td>Function</td><td>Measurement data, standard resolution</td></tr></table> |
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
8 |
| Process data binary |
2 |
| Min. process cycle time |
7.2 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>860</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
0...60 |
| Storage temperature |
-20...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 60947-5-9</td><td></td></tr></table> |
| CPA approval |
<table><tr><td>model number</td><td>001TG</td></tr><tr><td>accuracy class</td><td>-</td></tr><tr><td>maximum allowable error</td><td>± 2,5 % FS</td></tr><tr><td>Q (min)</td><td>0,05 m³/h</td></tr><tr><td>Q (t)</td><td>-</td></tr><tr><td>Q (max)</td><td>15 |
| Vibration resistance |
<table><tr><td>DIN EN 68000-2-6</td><td>5 g (10...2000 Hz)</td></tr></table> |
| MTTF |
183 |
| UL approval |
<table><tr><td>UL approval number</td><td>I012 </td></tr><tr><td>File number UL</td><td>E174189 </td></tr></table> |
| Pressure equipment directive |
sound engineering practice; can be used for stable gases fluid group 2 |
| Mechanical data |
|
| Weight |
556 |
| Housing |
rectangular |
| Dimensions |
182 x 45.4 x 67.8 |
| Material |
PBT+PC-GF30; PPS GF40; stainless steel (1.4301 / 304); stainless steel (1.4305 / 303); steel (1.5523) galvanized; 2.0401 (brass / CW614N); FKM |
| Materials (wetted parts) |
EN AW-6082 (aluminium); stainless steel (1.4305 / 303); FKM; ceramics glass passivated; PPS GF40; Al2O3 (ceramics); acrylate |
| Process connection |
threaded connection G 1/4 Internal thread DN8 |
| Displays / operating elements |
|
| Display |
<table><tr><td></td><td>Color display 1,44", 128 x 128 pixels</td></tr><tr><td></td><td>2 x LED, yellow</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td>MW = Measured value</td></tr><tr><td>MEW = Final value of the measuring range</td></tr><tr><td> Measuring, display and setting ranges refer to standard volume flow according to DIN ISO 2533.</td></tr><tr><td> For information about installat |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A |
