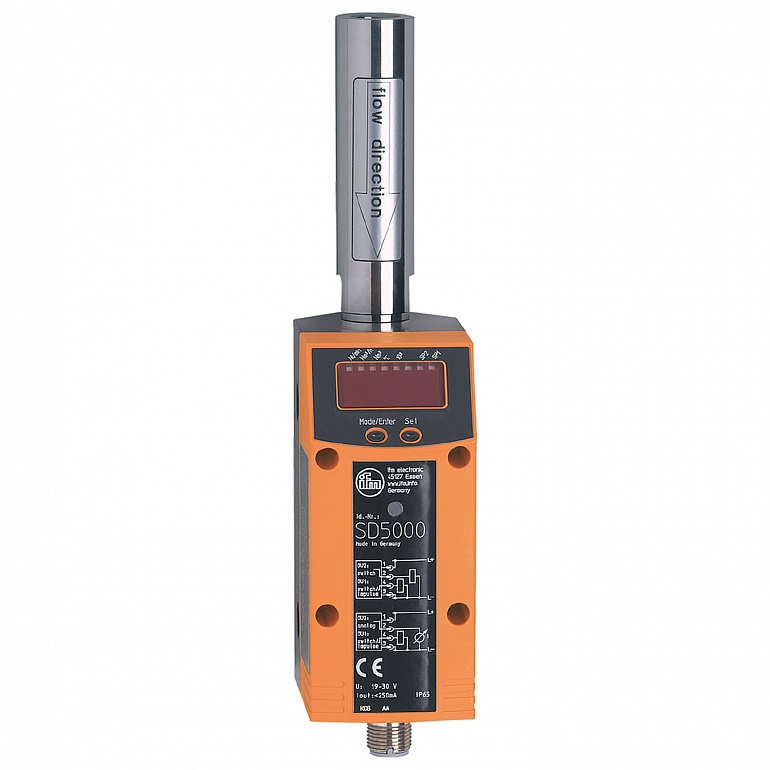

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Process connection |
threaded connection G 1/4 Internal thread DN8 |
| Ar |
|
| Measuring range |
0.08...24.04 |
| Display range |
0...28.84 |
| Resolution |
0.02 |
| Set point SP |
0.22...24.04 |
| Reset point rP |
0.12...23.94 |
| Analog start point ASP |
0...19.24 |
| Analog end point AEP |
4.8...24.04 |
| In steps of |
0.02 |
| CO2 |
|
| Measuring range |
0.04...14.36 |
| Display range |
0...17.24 |
| Resolution |
0.02 |
| Set point SP |
0.14...14.36 |
| Reset point rP |
0.08...14.3 |
| Analog start point ASP |
0...11.48 |
| Analog end point AEP |
2.88...14.36 |
| In steps of |
0.02 |
| N2 |
|
| Measuring range |
0.04...15 |
| Display range |
0...18 |
| Resolution |
0.02 |
| Set point SP |
0.14...15 |
| Reset point rP |
0.08...14.94 |
| Analog start point ASP |
0...12 |
| Analog end point AEP |
3...15 |
| In steps of |
0.02 |
| Application |
|
| Application |
for industrial applications |
| Media |
Argon (Ar); carbon dioxide (CO2); nitrogen (N2) |
| Medium temperature |
0...60 |
| Pressure rating |
<table><tr><td>16 bar</td><td>1.6 MPa</td></tr></table> |
| Electrical data |
|
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
< 100 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
1 |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Outputs |
|
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; pulse signal; IO-Link; (configurable) |
| Electrical design |
PNP |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
250; (per output) |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable) |
| Max. load |
500 |
| Pulse output |
consumed quantity meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring/setting range |
|
| Low flow cut-off LFC |
< 0.26 |
| Measuring dynamics |
1:300 |
| Volumetric flow quantity monitoring |
|
| Pulse value |
0.001...1 000 000 m³ |
| In steps of |
0.001...1000 m³ |
| Pulse length |
0,062...2 |
| Temperature monitoring |
|
| Accuracy |
± 2; (medium flow in the limit area of the flow measurement range) |
| Accuracy / deviations |
|
| Flow monitoring |
|
| Response time |
0.1; (dAP = 0) |
| Damping process value dAP in steps |
0 - 0,2 - 0,4 - 0,6 - 0,8 - 1 |
| Reaction times |
|
| Software / programming |
|
| Parameter setting options |
Flow monitoring; quantity meter; Preset counter; hysteresis / window; normally open / closed; current/pulse output; display can be rotated and switched off; Display unit; medium selection |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr></table> |
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
3 |
| Process data binary |
2 |
| Min. process cycle time |
4.1 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>263</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
0...60 |
| Storage temperature |
-20...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-4-2 ESD</td><td>4 kV CD / 8 kV AD</td></tr><tr><td>EN 61000-4-3 HF radiated</td><td>10 V/m</td></tr><tr><td>EN 61000-4-4 Burst</td><td>2 kV</td></tr><tr><td>EN 61000-4-6 HF conducted</td><td>10 V</td></tr></table> |
| CPA approval |
<table><tr><td>model number</td><td>003TG</td></tr><tr><td>accuracy class</td><td>-</td></tr><tr><td>maximum allowable error</td><td>± 7 % FS</td></tr><tr><td>Q (min)</td><td>0,04 m³/h (N2)</td></tr><tr><td></td><td>0,04 m³/h (CO2)</td></tr><tr><td></td>< |
| Vibration resistance |
<table><tr><td>DIN IEC 68-2-6</td><td>5 g (55...2000 Hz)</td></tr></table> |
| MTTF |
227 |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
|
| Weight |
981 |
| Housing |
rectangular |
| Dimensions |
182.3 x 45 x 74.5 |
| Material |
PBT-GF20; PC; PC; stainless steel (1.4301 / 304); FKM |
| Materials (wetted parts) |
stainless steel (1.4301 / 304); ceramics glass passivated; PEEK; polyester; FKM; aluminum anodized |
| Process connection |
threaded connection G 1/4 Internal thread DN8 |
| Displays / operating elements |
|
| Display |
<table><tr><td>Display unit</td><td>4 x LED, green (Nl/min, Nm³/h, Nm³, °C)</td></tr><tr><td>Function display</td><td>1 x LED, yellow</td></tr><tr><td>Switching status</td><td>2 x LED, yellow</td></tr><tr><td>Measured values</td><td>alphanumeric display, |
| Display unit |
Nl/min; Nm³/h; Nm³; °C |
| Remarks |
|
| Remarks |
<table><tr><td>MW = Measured value</td></tr><tr><td>MEW = Final value of the measuring range</td></tr><tr><td> Measuring, display and setting ranges refer to standard volume flow according to DIN ISO 2533.</td></tr><tr><td> For information about installat |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A |
