| Product characteristics |
|
| Process connection for welding gun |
|
| Process connection |
threaded connection M22 x 1,5 external thread |
| Process connection for water supply |
|
| Process connection |
threaded connection M22 x 1,5 external thread |
| Flow monitoring |
|
| Measuring range |
0...50 |
| Application |
|
| System |
gold-plated contacts |
| Application |
Industrial applications; Cooling water control |
| Installation |
connection to pipe by means of an adapter; tube connection |
| Measuring parameters |
flow; temperature; pressure; totalizer |
| Control |
manual |
| Media |
water; glycol solutions |
| Medium temperature |
-10...80 |
| Pressure rating |
10 |

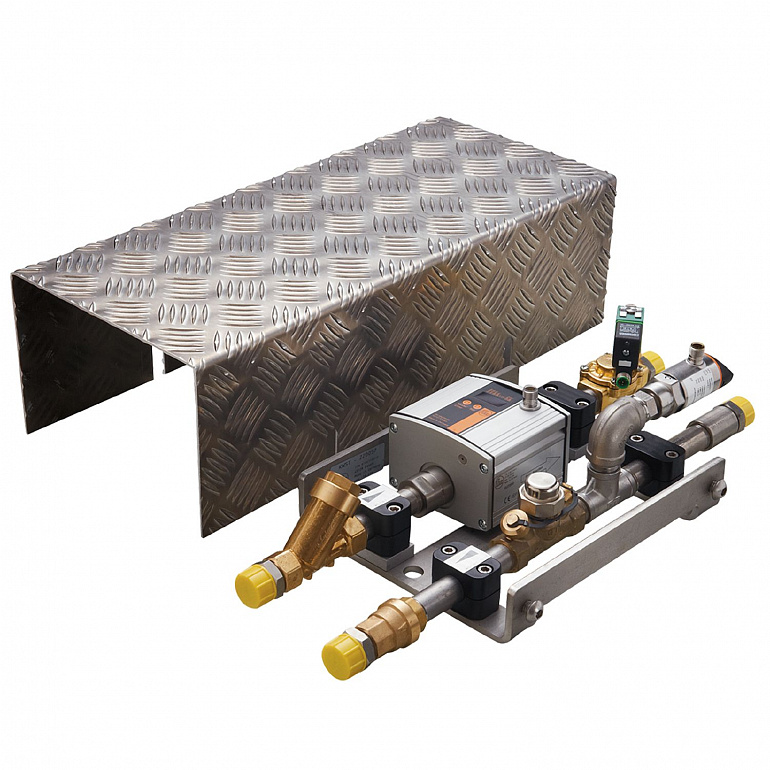

| Components |
<table><tr><td>SU ultrasonic flowmeters for water and oil based media, SU7200</td></tr><tr><td>Electronic pressure monitor, PN7594</td></tr><tr><td>filter</td></tr><tr><td>water stop valve</td></tr><tr><td>regulating valve</td></tr><tr><td>backstop</td></ |
| Outputs |
|
| Output signal |
switching signal |
| Output function |
normally open / closed; (configurable) |
| Measuring/setting range |
|
| Pressure monitoring |
|
| Measuring range |
0...10 |
| Temperature monitoring |
|
| Measuring range |
-10...80 |
| Operating conditions |
|
| Ambient temperature |
-10...50 |
| Storage temperature |
-25...80 |
| Protection |
IP 65; (sensors) |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-6-2</td><td></td></tr><tr><td>DIN EN 61000-6-3</td><td></td></tr></table> |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
|
| Weight |
7781.2 |
| Type of mounting |
mounting bracket with protective cover |
| Dimensions |
500 x 218 x 150 |
| Material |
stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; PBT+PC-GF30; bronze (2.1096.01); AlMgSi0,5 anodized; PA |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); FKM; PES; NBR; PVDF; Centellen 200; ceramics |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
