| Number of inputs and outputs |
Number of relay outputs: 1 |
| Process connection |
Clamp fitting Ø 23 mm |
| Medium temperature |
-10...50 |
| Pressure rating |
|
| Operating voltage |
18...30 DC |
| Current consumption |
50 |
| Min. insulation resistance |
100; (500 V DC) |
| Number of inputs and outputs |
Number of relay outputs: 1 |
| Output signal |
switching signal |
| Number of relay outputs |
1 |
| Contact rating |
3 A (30 V DC / 250 V AC // cULus: 30 V DC / AC) |
| Switching function flow monitoring |
relay energized when flow is present |
| Response time |
3...60 |
| Max. temperature gradient of medium |
5 |
| Response time |
3...60 |
| Adjustment of the switch point |
potentiometer |
| Ambient temperature |
-10...50 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65 |
| MTTF |
1294 |
| UL approval |
| UL approval number | I029 | | File number UL | E174189 |
|
| Weight |
192.5 |
| Housing |
tubular |
| Dimensions |
Ø 23 / L = 142 |
| Material |
housing: PBT; sensor surface: titanium |
| Materials (wetted parts) |
PBT; titanium |
| Process connection |
Clamp fitting Ø 23 mm |
| Display |
| Function | 1 x LED, red | | Function | 1 x LED, green |
|

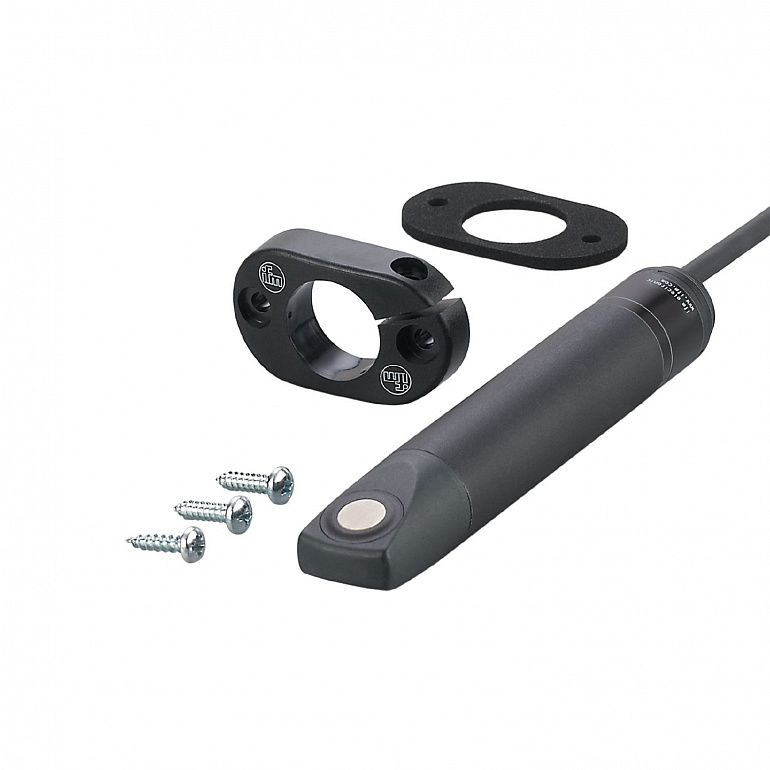

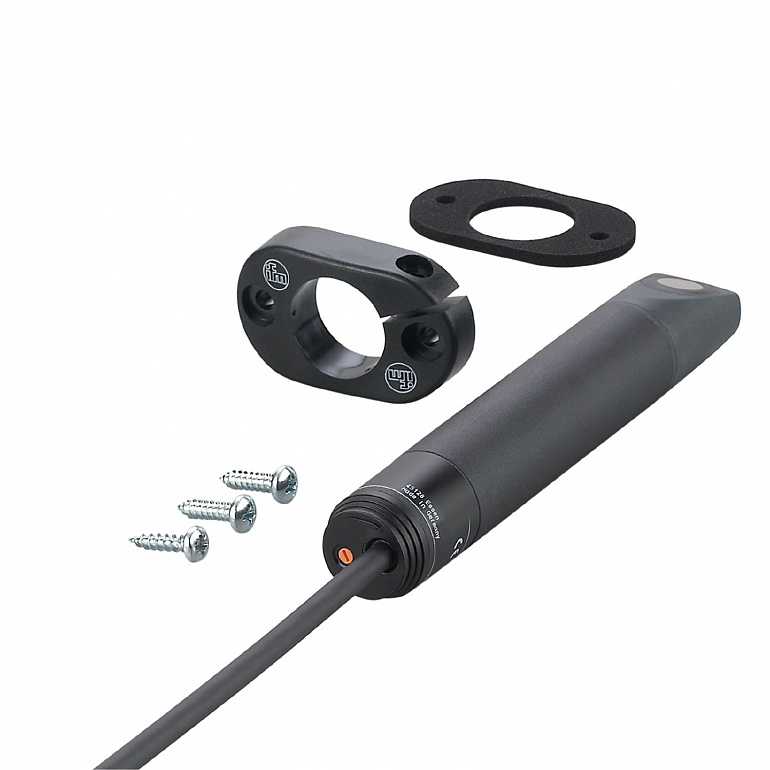

| Items supplied |
| Mounting clamp: 1, E40048 |
|
| Pack quantity |
1 pcs. |
| Connection |
Cable: 2 m, PUR; 4 x 0.5 mm², PVC |
