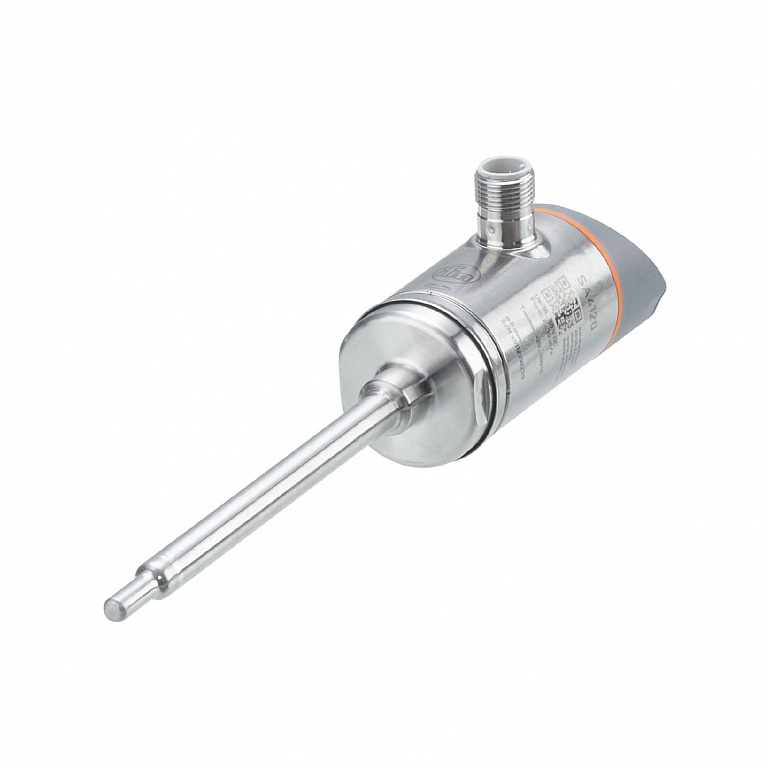

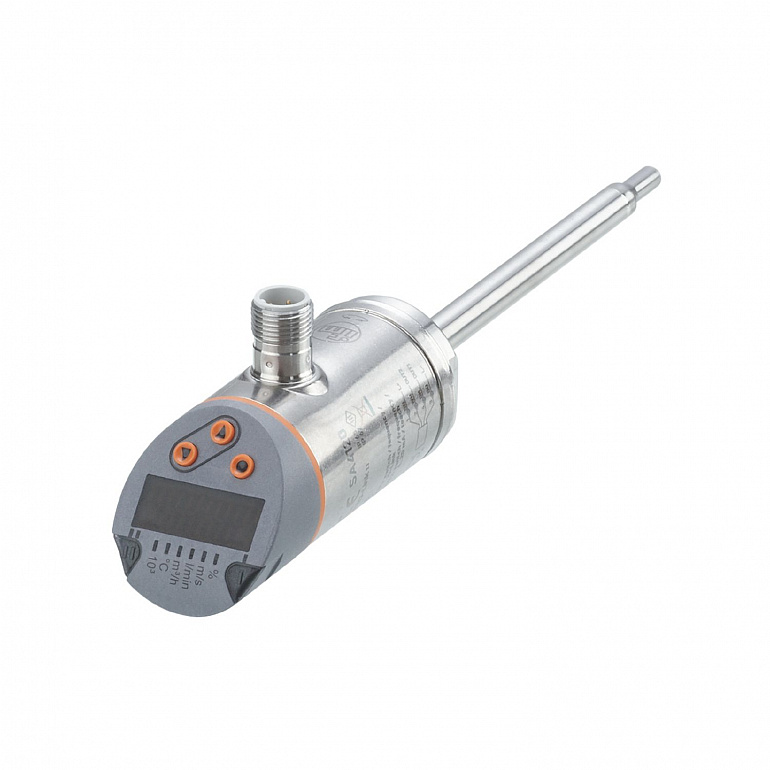

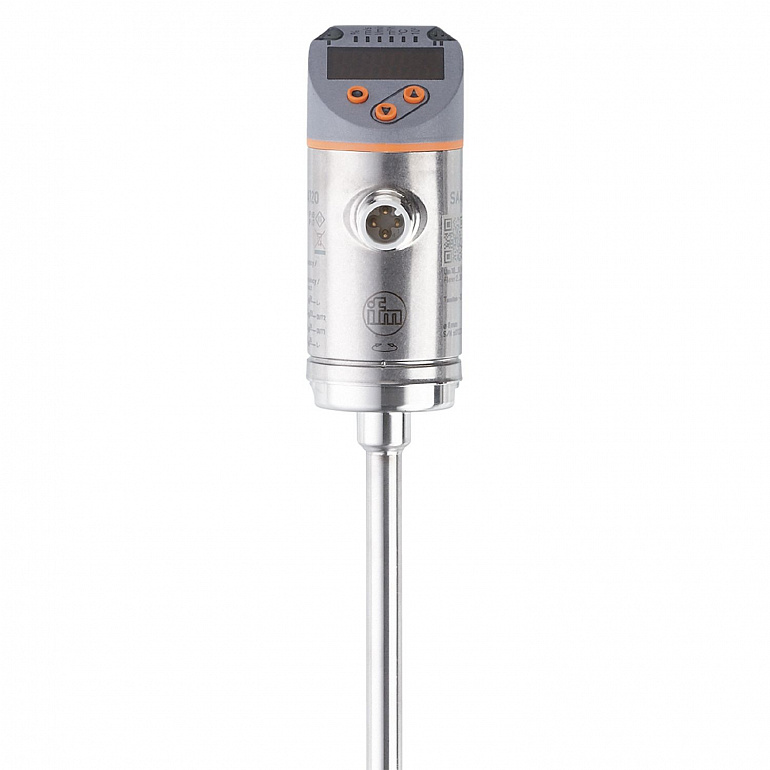

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Process connection |
Clamp fitting Ø 8 mm |
| Application |
|
| System |
gold-plated contacts |
| Installation |
Recommended for pipe diameters; ( 15...400 mm) |
| Media |
air |
| Medium temperature |
-20...100 |
| Pressure rating |
<table><tr><td>50 bar</td><td>5 MPa</td></tr></table> |
| MAWP (for applications according to CRN) |
<table><tr><td>50 bar</td><td>5 MPa</td></tr></table> |
| Electrical data |
|
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
< 100 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
10 |
| Measuring principle |
calorimetric |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Outputs |
|
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; frequency signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
250 |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable) |
| Max. load |
350 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Frequency of the output |
0...1000 |
| Measuring/setting range |
|
| Probe length L |
100 |
| Operating mode |
relative; absolutely gaseous; (absolute: reference measurement recommended; Factory setting: relative) |
| Display range |
0...36 |
| Resolution |
0.2 |
| Set point SP |
2...30 |
| Reset point rP |
0.6...28.6 |
| Analog start point ASP |
0...24 |
| Analog end point AEP |
6...30 |
| Frequency end point, FEP |
6.6...30 |
| Frequency at the end point FRP |
100...1000 |
| Gases - operating mode "absolute" |
|
| Repeatability |
± (3 % MW + 0,6 % MEW) |
| Gases - operating mode "relative" |
|
| Accuracy |
± (10 % MW + 2 % MEW); (reference conditions: DN50; Inside diameter 51 mm; within the range of maximum sensitivity: 20 °C / < 6 bar; Insertion depth: 15 mm; inlet pipe length: 2.5 m; standard velocity to DIN ISO 2533 at the sensor tip) |
| Repeatability |
± (3 % MW + 0,6 % MEW) |
| Temperature monitoring |
|
| Dynamic response T05 / T09 |
30 (T09); (Flow velocity: ≥ 10 m/s) |
| Accuracy / deviations |
|
| Reaction times |
|
| Response time |
7 |
| Software / programming |
|
| Parameter setting options |
hysteresis / window; normally open / closed; switching logic; current/frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value color |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr></table> |
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
2 |
| Process data binary |
2 |
| Min. process cycle time |
3 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>Factory setting / ModE = (REL)</td><td>1237</td></tr><tr><td>ModE = (ABS)</td><td>1238</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-40...80 |
| Storage temperature |
-40...100 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 60947-5-9</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>5 g (10...2000 Hz)</td></tr></table> |
| MTTF |
131 |
| UL approval |
<table><tr><td>UL approval number</td><td>I017 </td></tr><tr><td>File number UL</td><td>E174189 </td></tr></table> |
| Mechanical data |
|
| Weight |
243.9 |
| Housing |
tubular |
| Dimensions |
Ø 8 / L = 192 |
| Material |
stainless steel (1.4404 / 316L); PBT-GF20; PBT-GF30 |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L) |
| Process connection |
Clamp fitting Ø 8 mm |

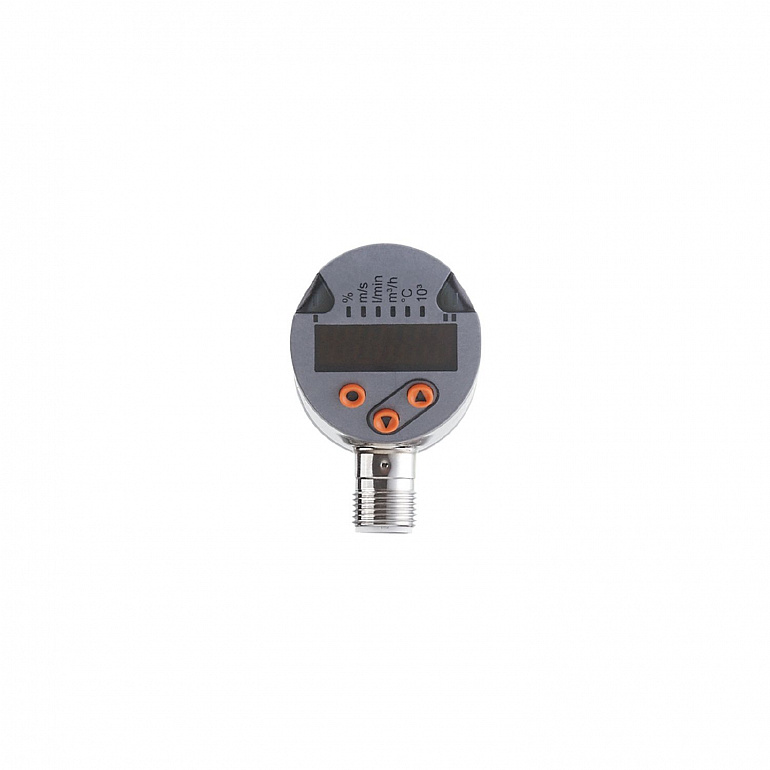

| Displays / operating elements |
|
| Display |
<table><tr><td>Display unit</td><td>6 x LED, green (%, m/s, l/min, m³/h, °C, 10³)</td></tr><tr><td>Switching status</td><td>2 x LED, yellow</td></tr><tr><td>Measured values</td><td>alphanumeric display, red/green 4-digit</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td>MW = Measured value</td></tr><tr><td>MEW = Final value of the measuring range</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
