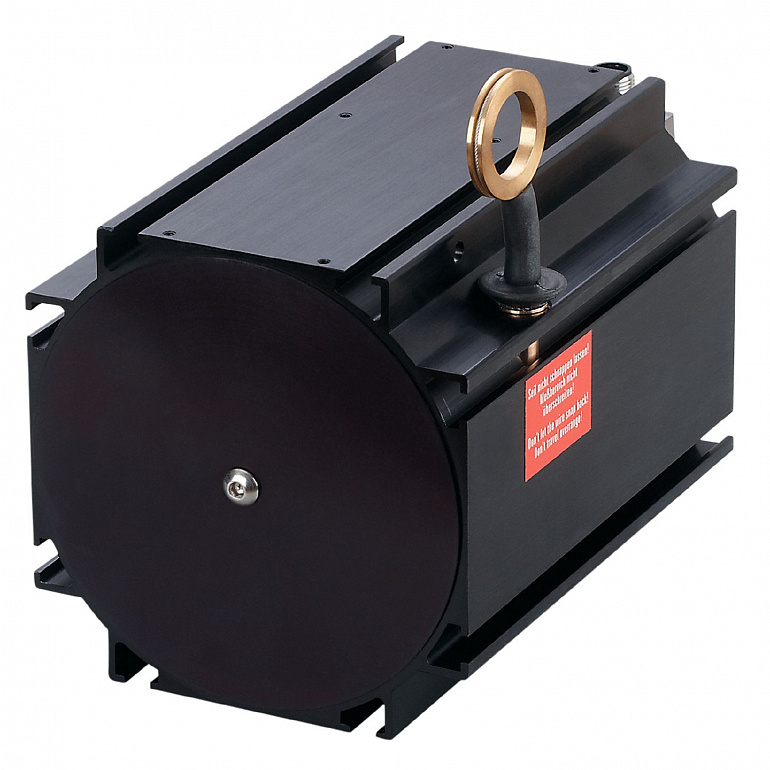

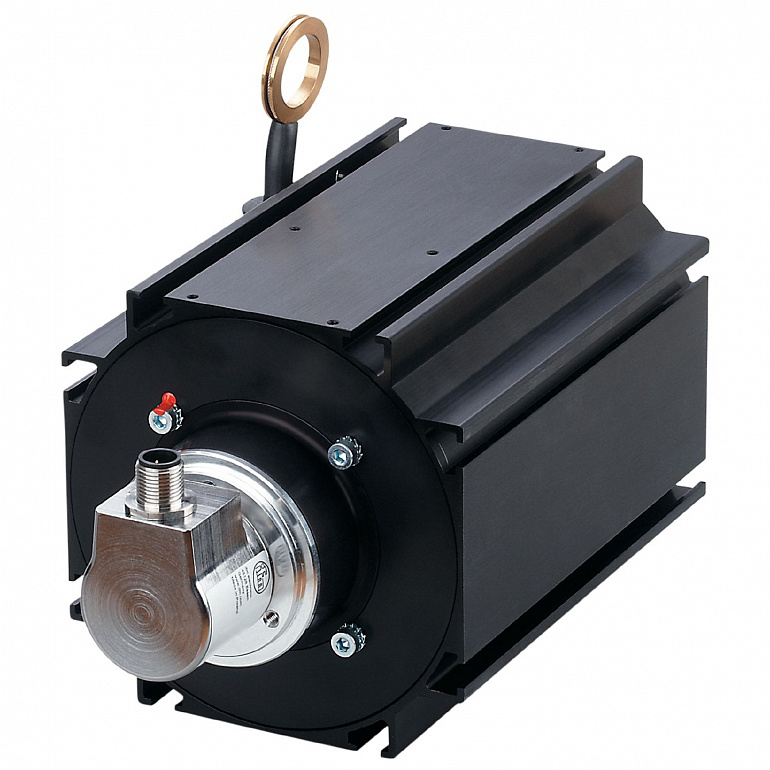

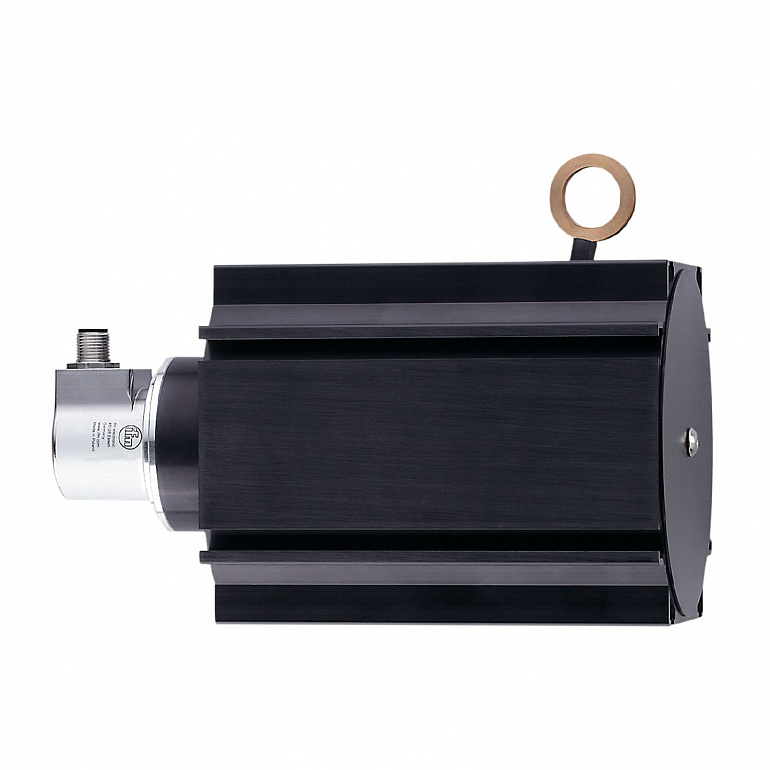

| Resolution |
4096 steps; 4096 revolutions; 24 bit |
| Communication interface |
CAN |
| Function principle |
absolute |
| Detection system |
magnetic |
| Application |
encoder |
| Operating voltage |
9...30 DC |
| Current consumption |
50...100 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
500 |
| Settling time |
32 |
| Short-circuit proof |
yes |
| Code |
binary |
| Resolution |
4096 steps; 4096 revolutions; 24 bit |
| Repeatability |
± 0,001 % FSO |
| Parameter setting options |
CAN parameter; scaling; preset; Baud rate; Direction of rotation; node ID |
| Communication interface |
CAN |
| Protocol |
CANopen |
| Factory settings |
| Baud rate: 125 kBit/s | | node ID: 32 |
|
| Version |
DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0 |
| Ambient temperature |
-20...80 |
| Storage temperature |
-20...80 |
| Max. relative air humidity |
95; (Condensation not permissible) |
| Protection |
IP 64; (on the housing: IP 65) |
| MTTF |
240 |
| Weight |
3684.5 |
| Material |
housing: steel; wire drum: aluminum; plastics; wire: stainless steel polyamide coated |
| Max. measuring length |
10000 |
| Wire drum circumference |
315 |
| Wire diameter |
1 |
| Wire connection |
Ø 20,2 mm; (eyelet) |
| Wire properties |
| max. speed of wire displacement | [m /s] | 2 | | max. wire acceleration | [g] | 6 | | max. extension force | [N] | 21 | | max. retraction force | [N] | 8 |
|
| Display |
| readiness for operation | LED, green | | Operating mode | LED, green flashing | | fault | LED, red flashing |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12, can be used radially; coding: A |
