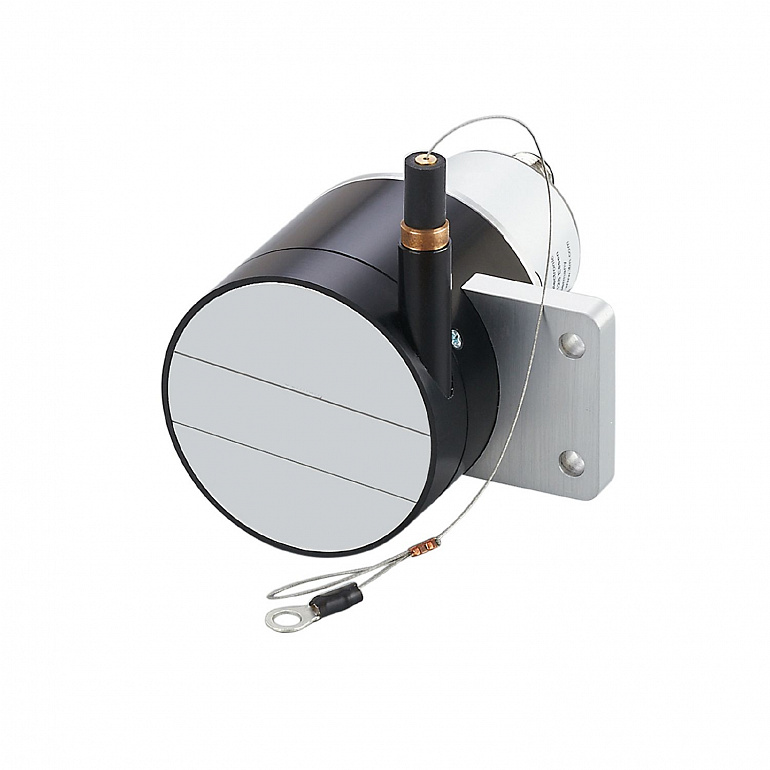

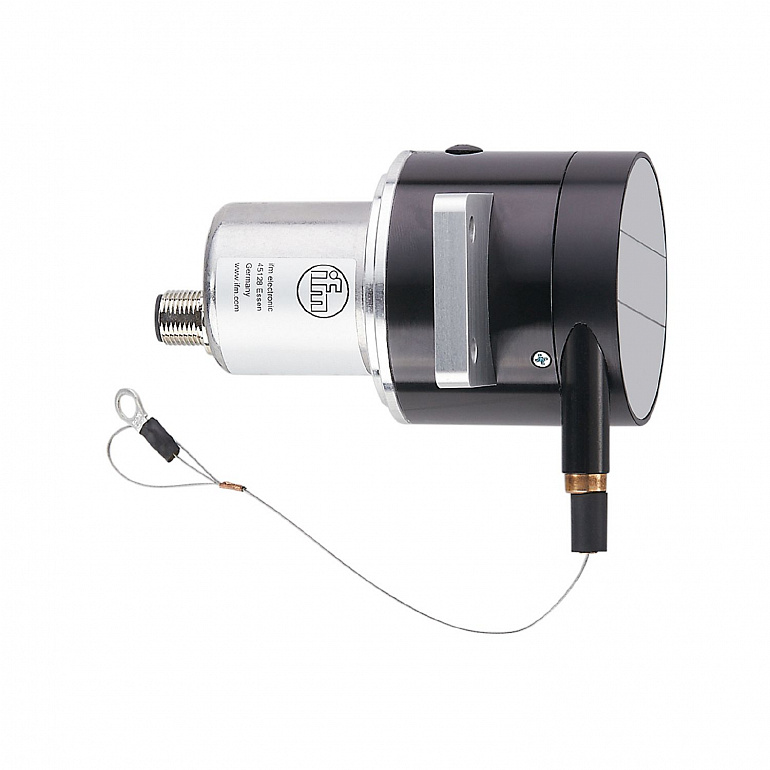

| Product characteristics |
|
| Resolution |
8192 steps; 16 revolutions; 17 bit |
| Application |
|
| Function principle |
absolute |
| Detection system |
magnetic |
| Application |
encoder |
| Electrical data |
|
| Operating voltage |
8...32 DC |
| Current consumption |
< 20 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
500 |
| Settling time |
32 |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Outputs |
|
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
500 |
| Precision analog output |
0,1 |
| Short-circuit protection |
yes |
| Measuring/setting range |
|
| Resolution |
8192 steps; 16 revolutions; 17 bit |
| Accuracy / deviations |
|
| Accuracy |
± 0.02 % FSO |
| Repeatability |
± 0,006 % FSO |
| Software / programming |
|
| Parameter setting options |
start position; end position; central position |
| Operating conditions |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
95; (Condensation not permissible) |
| Protection |
IP 64; (on the housing: IP 65) |
| Tests / approvals |
|
| MTTF |
241 |
| Mechanical data |
|
| Weight |
561 |
| Housing |
tubular |
| Dimensions |
Ø 58 / L = 90.5 |
| Material |
housing: steel; wire drum: aluminum; wire: stainless steel polyamide coated |
| Max. measuring length |
1900 |
| Wire drum circumference |
150 |
| Wire diameter |
0.45 |
| Wire connection |
Ø 5 mm; (eyelet) |
| Wire properties |
<table><tr><td>max. speed of wire displacement</td><td>[m /s]</td><td>2</td></tr><tr><td>max. wire acceleration</td><td>[g]</td><td>12</td></tr><tr><td>max. extension force</td><td>[N]</td><td>5</td></tr><tr><td>max. retraction force</td><td>[N]</td><td>3 |
| Remarks |
|
| Pack quantity |
1 pcs. |

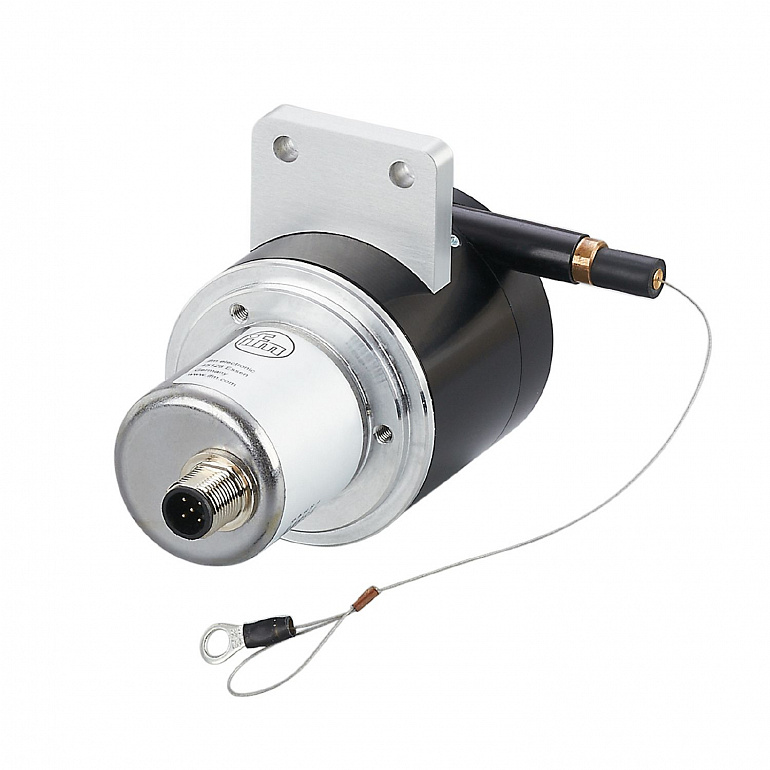

| Electrical connection |
|
