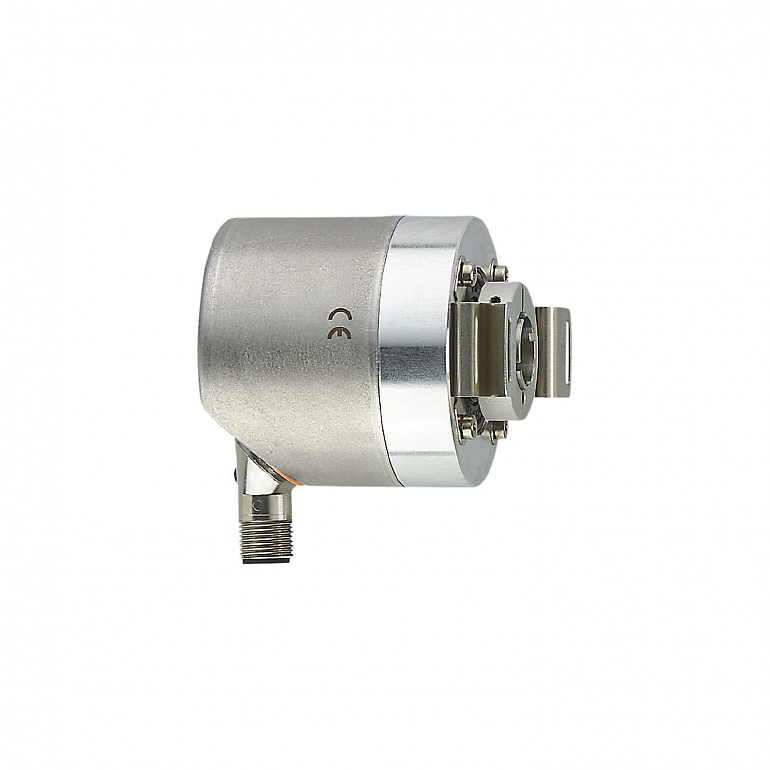

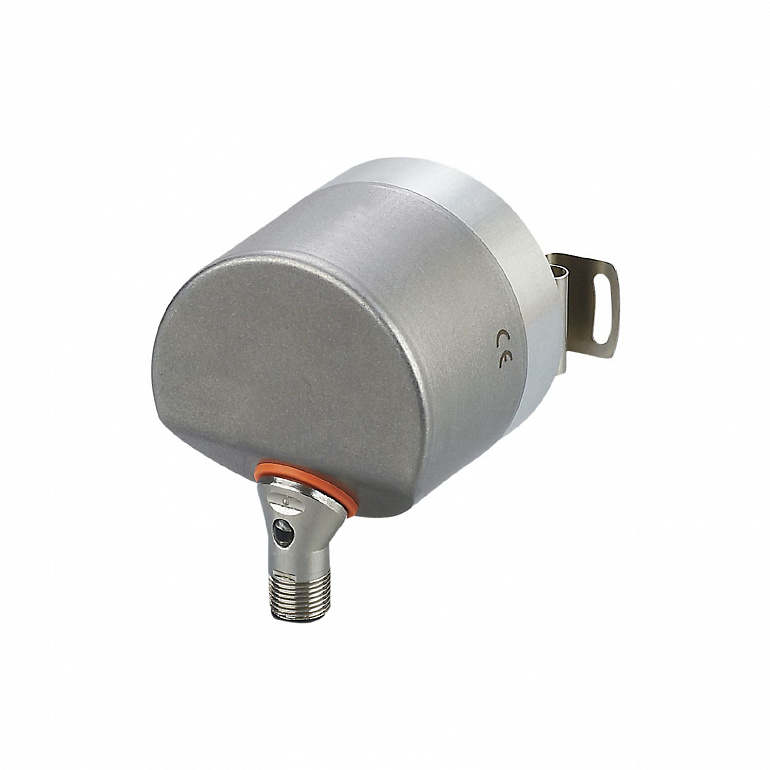

| Product characteristics |
|
| Resolution |
65536 steps; 32768 revolutions; 31 bit |
| Communication interface |
IO-Link |
| Shaft design |
hollow shaft open to one side |
| Shaft diameter |
15 |
| Application |
|
| Function principle |
absolute |
| Revolution type |
multiturn |
| Electrical data |
|
| Operating voltage |
18...30 DC; (; to PELV) |
| Rated insulation voltage |
30 |
| Current consumption |
< 75 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
1000 |
| Max. revolution electrical |
12000 |
| Outputs |
|
| Short-circuit protection |
yes |
| Measuring/setting range |
|
| Resolution |
65536 steps; 32768 revolutions; 31 bit |
| Accuracy / deviations |
|
| Accuracy |
0.1 |
| Software / programming |
|
| Parameter setting options |
preset; Zero point; Direction of rotation; rotational speed |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
<table><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr><tr><td>Function</td><td>Multiple switching signal</td></tr><tr><td>Function</td><td>Measurement data, high resolution</td></tr></table> |
| SIO mode |
no |
| Required master port class |
A |
| Min. process cycle time |
2.3 |
| IO-Link process data (cyclical) |
<table><tr><th>Function</th><th>bit length</th></tr><tr><td>process value</td><td>96</td></tr><tr><td>device status</td><td>4</td></tr><tr><td>binary switching information</td><td>5</td></tr></table> |
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; internal temperature; switching cycles counter |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1064</td></tr></table> |
| Note |
<table><tr><td> For further information please see the IODD PDF file at "Downloads"</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
98; (Condensation not permissible) |
| Protection |
IP 65; (on the housing: IP 67; on the shaft: IP 64) |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-4-2 ESD</td><td>4 kV CD</td></tr><tr><td>DIN EN 61000-4-3 HF radiated</td><td>10 V/m</td></tr><tr><td>DIN EN 61000-4-4 Burst</td><td>2 kV</td></tr><tr><td>DIN EN 61000-4-6 HF conducted</td><td>10 V</td></tr></table> |
| Vibration resistance |
<table><tr><td></td><td>30 g (10...1000 Hz)</td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>100 g 6 ms</td></tr></table> |
| Continuous shock resistance |
<table><tr><td>DIN EN 60068-2-29</td><td>10 g / 16 ms half-sine</td></tr></table> |
| MTTF |
283 |
| UL approval |
<table><tr><td>voltage supply</td><td>Class 2 </td></tr></table> |
| Mechanical data |
|
| Weight |
417.2 |
| Housing |
tubular |
| Dimensions |
Ø 58 / L = 69 |
| Material |
flange: aluminum; housing: stainless steel (1.4521 / 444) |
| Max. starting torque |
0.01 |
| Reference temperature torque |
20 |

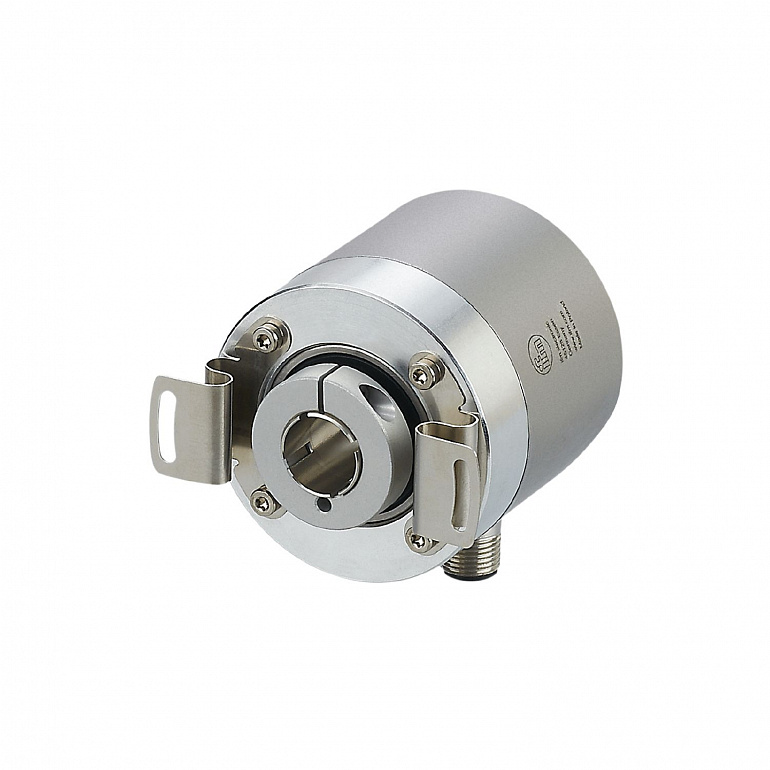

| Shaft design |
hollow shaft open to one side |
| Shaft diameter |
15 |
| Shaft material |
<table><tr><td>stainless steel</td></tr></table> |
| Max. shaft load axial (at the shaft end) |
40 |
| Max. shaft load radial (at the shaft end) |
110 |
| Installation depth/shaft |
28 |
| Max. axial shaft misalignment |
0,5 |
| Fixing flange |
Clamping flange |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection - plug |
|
