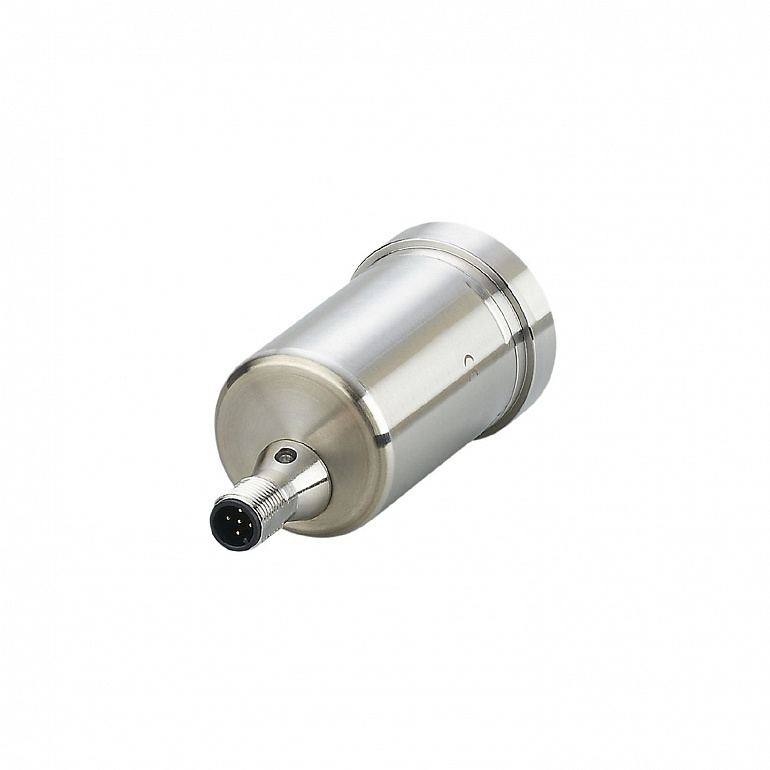

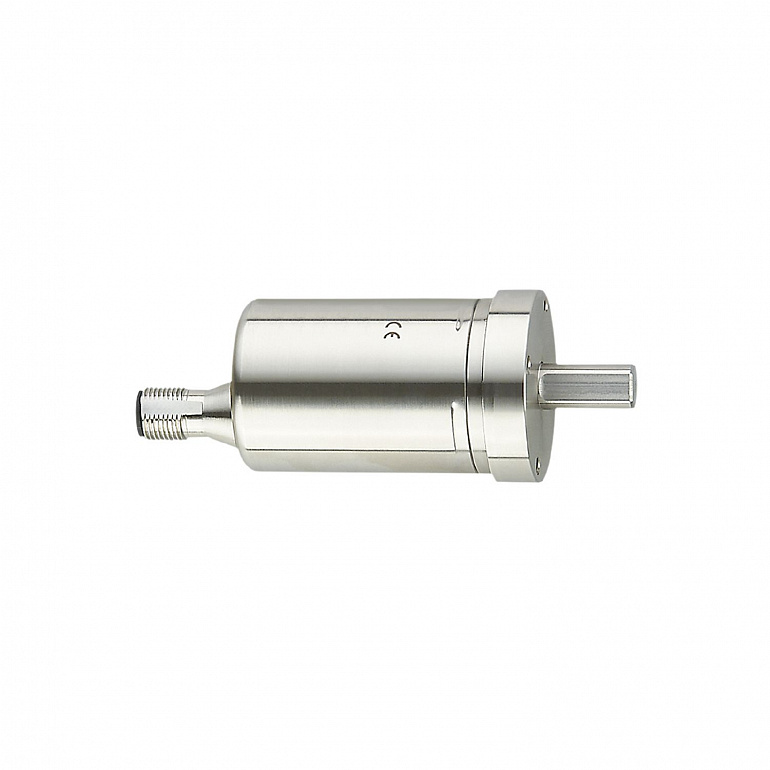

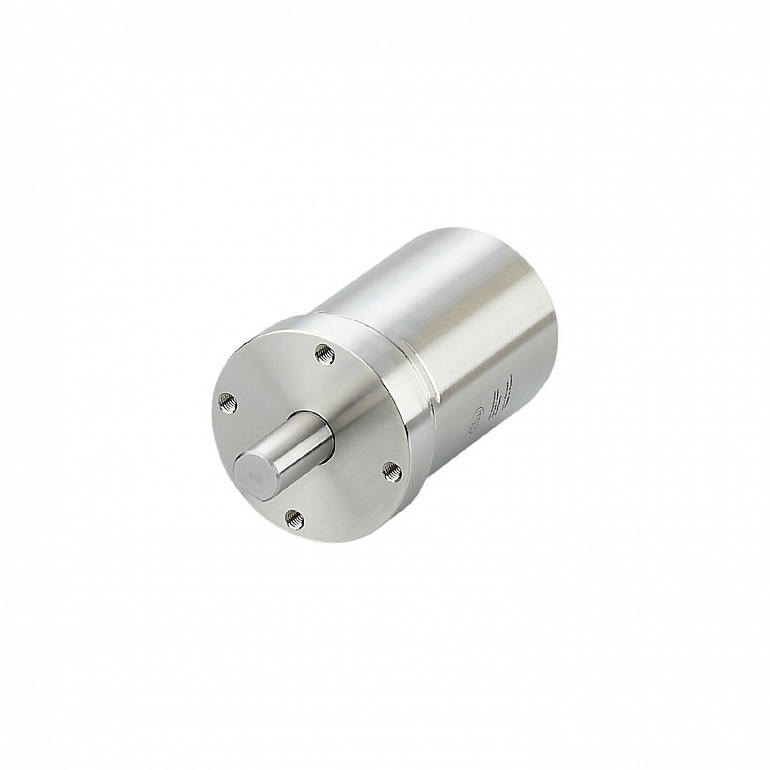

| Resolution |
65536 steps; 32768 revolutions; 31 bit |
| Communication interface |
IO-Link |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Function principle |
absolute |
| Revolution type |
multiturn |
| Detection system |
magnetic |
| Operating voltage |
18...30 DC; (; to PELV) |
| Rated insulation voltage |
30 |
| Current consumption |
< 75 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
1000 |
| Max. revolution electrical |
6000 |
| Short-circuit protection |
yes |
| Resolution |
65536 steps; 32768 revolutions; 31 bit |
| Accuracy |
0.1 |
| Parameter setting options |
preset; Zero point; Direction of rotation; rotational speed |
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
| Common - I&D | Identification and Diagnosis | | Function | Multiple switching signal | | Function | Measurement data, high resolution |
|
| SIO mode |
no |
| Required master port class |
A |
| Min. process cycle time |
2.3 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| process value | 96 | | device status | 4 | | binary switching information | 5 |
|
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; internal temperature; switching cycles counter |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1064 |
|
| Note |
| For further information please see the IODD PDF file at "Downloads" |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
98; (Condensation not permissible) |
| Protection |
IP 68; IP 69K |
| EMC |
| DIN EN 61000-4-2 ESD | 4 kV CD | | DIN EN 61000-4-3 HF radiated | 10 V/m | | DIN EN 61000-4-4 Burst | 2 kV | | DIN EN 61000-4-6 HF conducted | 10 V |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 30 g / 10...1000 Hz half-sine |
|
| Shock resistance |
| DIN EN 60068-2-27 | 200 g / 11 ms |
|
| Continuous shock resistance |
| DIN EN 60068-2-29 | 30 g / 6 ms half-sine |
|
| MTTF |
283 |
| UL approval |
|
| Weight |
472.1 |
| Housing |
tubular |
| Dimensions |
Ø 42 / L = 107.9 |
| Material |
flange: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L) |
| Max. starting torque |
0.05 |
| Reference temperature torque |
20 |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Shaft material |
| stainless steel (1.4112 / 440B) |
|
| Max. shaft load axial (at the shaft end) |
300 |
| Max. shaft load radial (at the shaft end) |
300 |
| Fixing flange |
Synchro-flange |
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12, axial; coding: A; Moulded body: stainless steel (1.4401 / 316) |
