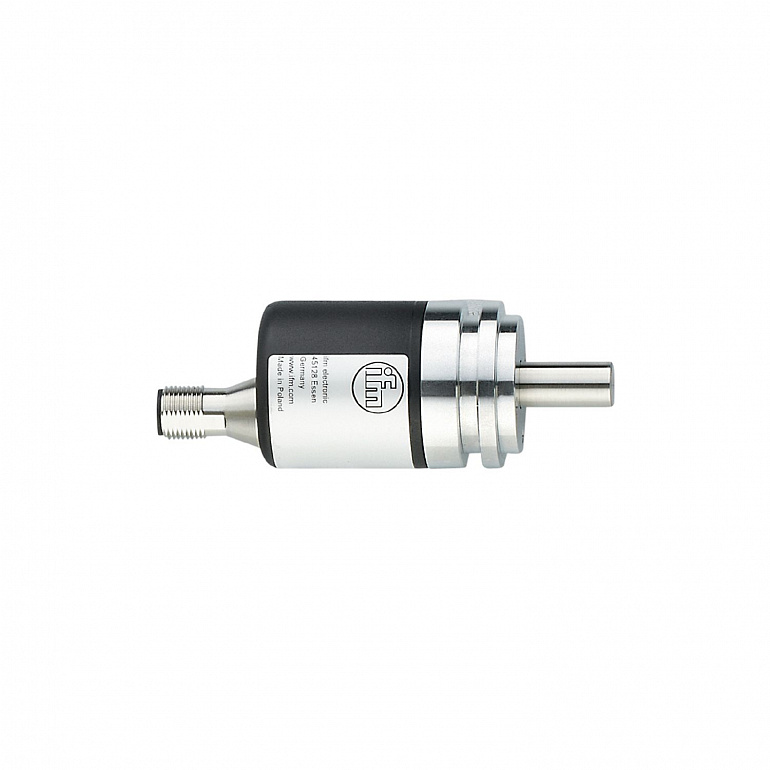

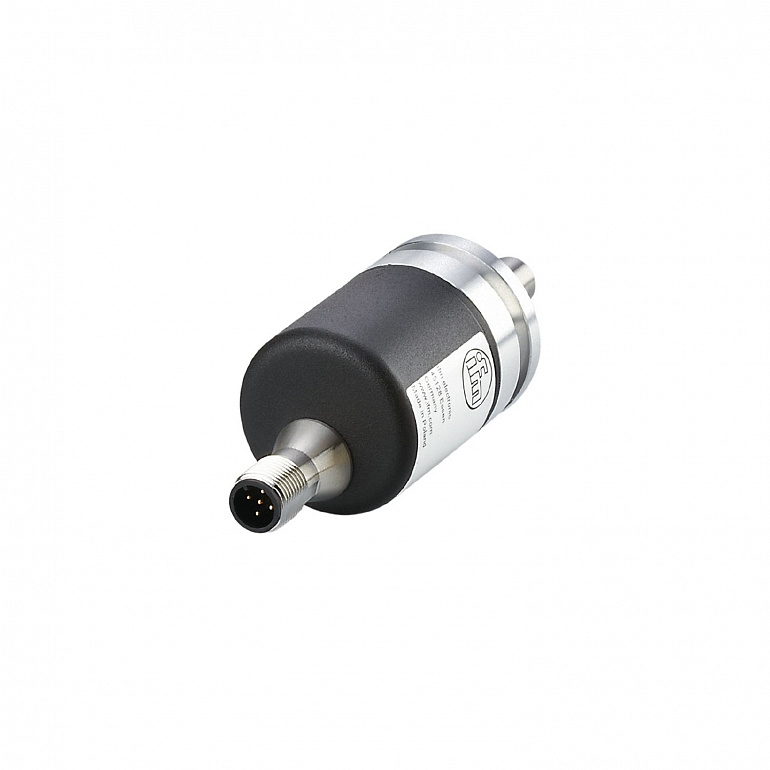

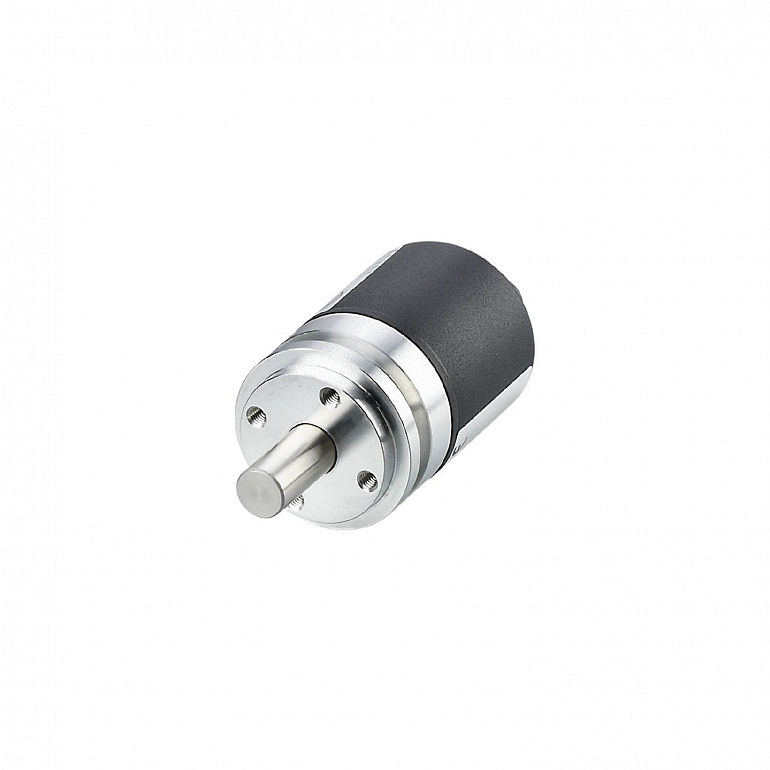

| Product characteristics |
|
| Resolution |
4096 steps; 4096 revolutions; 24 bit |
| Communication interface |
CAN |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Application |
|
| Function principle |
absolute |
| Revolution type |
multiturn |
| Electrical data |
|
| Operating voltage |
9...30 DC; (cULus - Class 2 source required) |
| Current consumption |
< 100; ((10 V DC) ; ≤ 50 (24 V DC)) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Outputs |
|
| Short-circuit protection |
yes |
| Code |
binary |
| Measuring/setting range |
|
| Resolution |
4096 steps; 4096 revolutions; 24 bit |
| Accuracy / deviations |
|
| Accuracy |
0.08 |
| Software / programming |
|
| Parameter setting options |
CAN parameter; scaling; preset; Baud rate; Direction of rotation; node ID |
| Interfaces |
|
| Communication interface |
CAN |
| CAN |
|
| Protocol |
CANopen |
| Factory settings |
<table><tr><td>Baud rate: 125 kBit/s</td></tr><tr><td>node ID: 32</td></tr></table> |
| Version |
DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0 |
| Operating conditions |
|
| Ambient temperature |
-40...85 |
| Protection |
IP 68; IP 69K |
| Tests / approvals |
|
| Shock resistance |
<table><tr><td></td><td>200 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td></td><td>30 g (10...1000 Hz)</td></tr></table> |
| MTTF |
240 |
| Mechanical data |
|
| Weight |
270.9 |
| Housing |
tubular |
| Dimensions |
Ø 36.5 / L = 100 |
| Material |
flange: aluminum; housing cap: steel scratch-resistant cathodic dip coating |
| Max. revolution, mechanical |
6000 |
| Max. starting torque |
0.05 |
| Reference temperature torque |
20 |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Shaft material |
<table><tr><td>steel (1.4104)</td></tr></table> |
| Max. shaft load axial (at the shaft end) |
180 |
| Max. shaft load radial (at the shaft end) |
180 |
| Fixing flange |
Synchro-flange |
| Displays / operating elements |
|
| Display |
<table><tr><td>Preoperational Mode</td><td>LED, green</td></tr><tr><td>Operational Mode</td><td>LED, green flashing</td></tr><tr><td>Error message</td><td>LED, red flashing</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
