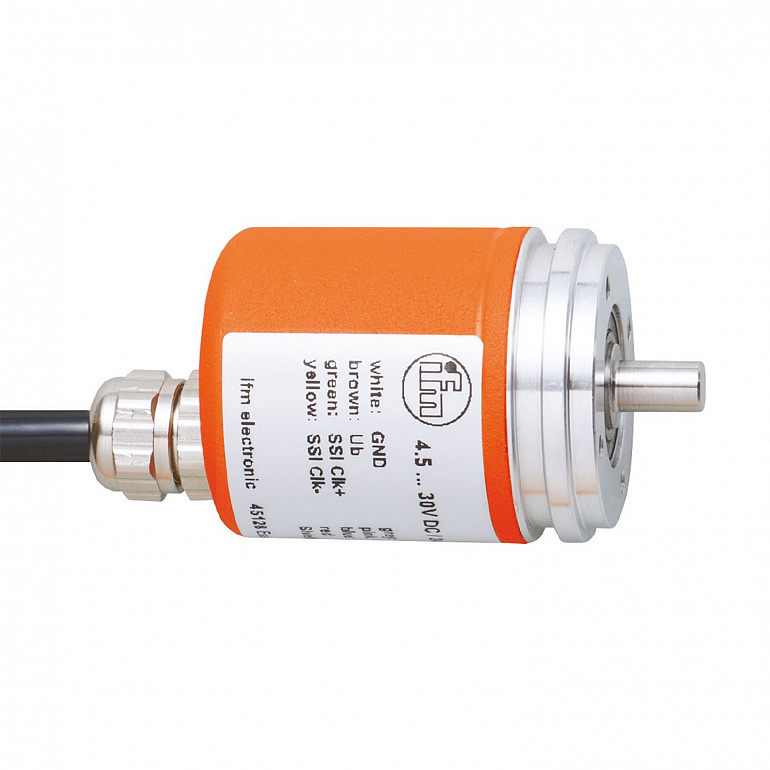

| Resolution |
4096 resolution; 8192 revolutions; 25 bit |
| Communication interface |
SSI data interface |
| Shaft design |
solid shaft |
| Shaft diameter |
6 |
| Function principle |
absolute |
| Revolution type |
multiturn |
| Operating voltage |
4.5...30 DC |
| Current consumption |
< 30 |
| Inputs |
reversal of direction of rotation; reset to zero |
| Code |
Gray code; (increasing code values when turned clockwise (seen on the shaft)) |
| Code signal |
Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signal data and data (inv.) |
| Resolution |
4096 resolution; 8192 revolutions; 25 bit |
| Communication interface |
SSI data interface |
| Ambient temperature |
-40...85 |
| Max. relative air humidity |
98 |
| Protection |
IP 65 |
| Shock resistance |
|
| Vibration resistance |
|
| MTTF |
350 |
| Weight |
323 |
| Housing |
tubular |
| Dimensions |
Ø 36.5 / L = 69.5 |
| Material |
flange: aluminum; housing: steel powder-coated |
| Max. revolution, mechanical |
12000 |
| Max. starting torque |
0.03 |
| Reference temperature torque |
25 |
| Shaft design |
solid shaft |
| Shaft diameter |
6 |
| Shaft material |
|
| Max. shaft load axial (at the shaft end) |
40 |
| Max. shaft load radial (at the shaft end) |
110 |
| Fixing flange |
Ø 36.5 mm |
| Remarks |
| Wires/pins not connected (n.c.) must not be used. |
|
| Pack quantity |
1 pcs. |
|
Cable: 2 m, PUR; Maximum cable length: 100 m; axial |
