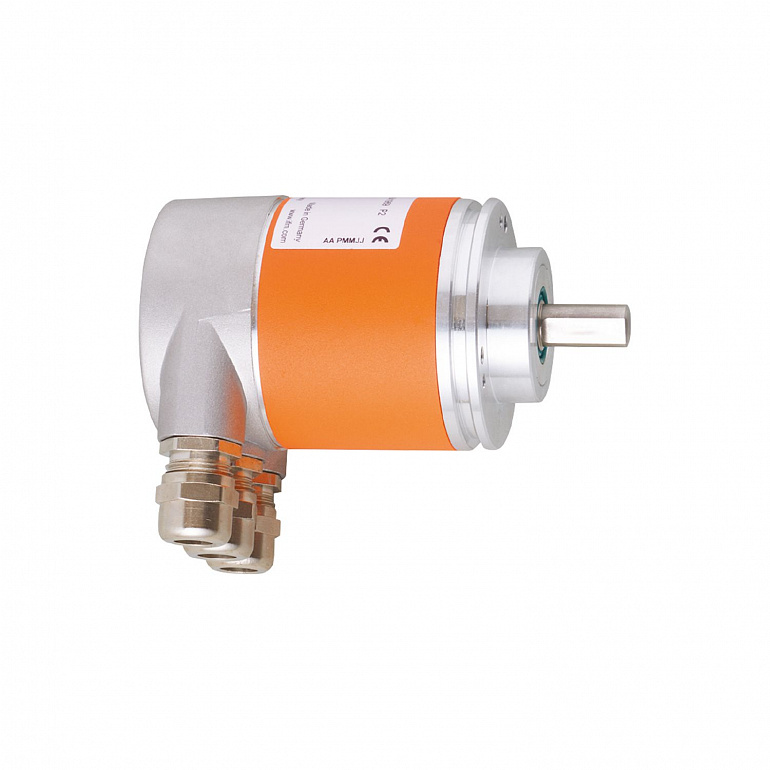

| Resolution |
8192 steps; 4096 revolutions; 25 bit |
| Communication interface |
CAN |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Function principle |
absolute |
| Revolution type |
multiturn |
| Operating voltage |
10...30 DC |
| Current consumption |
230; ((10 V DC); 100 (24 V DC)) |
| Reverse polarity protection |
yes |
| Code |
binary |
| Resolution |
8192 steps; 4096 revolutions; 25 bit |
| Parameter setting options |
CAN parameter; scaling; preset; Baud rate; Direction of rotation; node ID |
| Addressing |
address selector switch; 0...126 |
| Communication interface |
CAN |
| Protocol |
CANopen |
| Factory settings |
| Baud rate: 125 kBit/s | | node ID: 32 |
|
| Version |
DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0 |
| Ambient temperature |
-40...85 |
| Max. relative air humidity |
98 |
| Protection |
IP 65; (on the housing: IP 65; on the shaft: IP 64) |
| Shock resistance |
|
| Vibration resistance |
|
| MTTF |
13 |
| Weight |
592.5 |
| Housing |
tubular |
| Dimensions |
Ø 58 / L = 110 |
| Material |
aluminum |
| Max. revolution, mechanical |
6000 |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Shaft material |
|
| Max. shaft load axial (at the shaft end) |
40 |
| Max. shaft load radial (at the shaft end) |
110 |
| Fixing flange |
Clamping flange |
| Display |
| Preoperational Mode | LED, green flashing | | Operational Mode | LED, green | | Error message | LED, red flashing |
|
| Pack quantity |
1 pcs. |
|
Terminal strip in the terminal chamber: |
