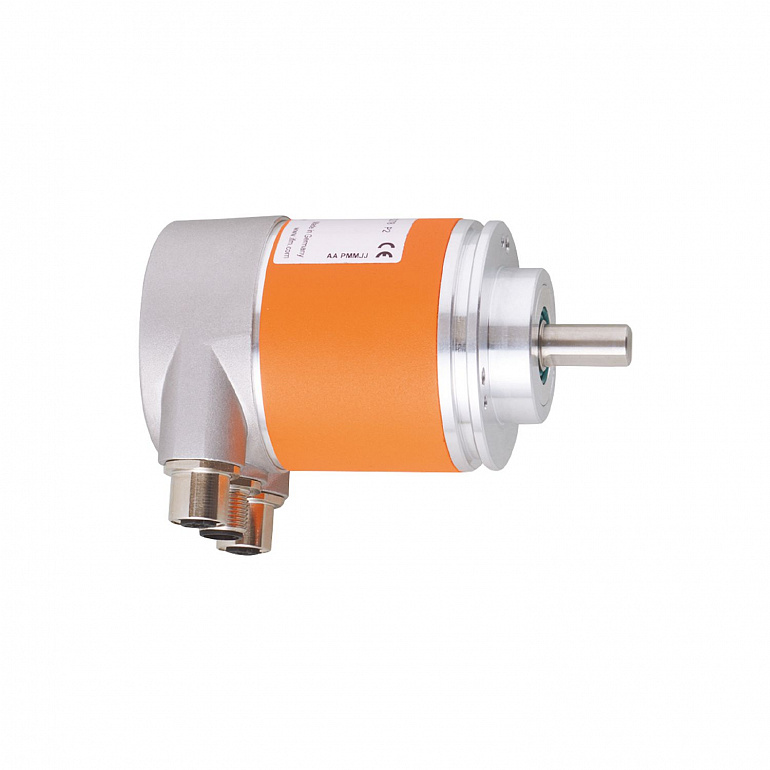

| Resolution |
8192 steps; 4096 revolutions; 25 bit |
| Communication interface |
ProfiNet-IO; PROFINET encoder profile V4.2 |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Function principle |
absolute |
| Revolution type |
multiturn |
| Operating voltage |
10...30 DC |
| Current consumption |
100; ((24 V)) |
| Reverse polarity protection |
yes |
| Short-circuit protection |
yes |
| Code |
binary |
| Resolution |
8192 steps; 4096 revolutions; 25 bit |
| Accuracy |
0.0439 |
| Accuracy |
0.022 |
| Parameter setting options |
resolution per revolution; total resolution; Direction of rotation; preset value; provision of a speed value; IP address; MRP; MRPD; rotational axis |
| Addressing |
Software |
| Communication interface |
ProfiNet-IO; PROFINET encoder profile V4.2 |
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
98; (Condensation not permissible) |
| Protection |
IP 67; (on the housing: IP 67; on the shaft: IP 67) |
| Shock resistance |
| DIN EN 60068-2-27 | 100 g (6 ms) / half-sine |
|
| Continuous shock resistance |
| DIN EN 60068-2-29 | 10 g (16 ms) / half-sine |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 20 g (20...1000 Hz) |
|
| MTTF |
95 |
| Weight |
558 |
| Housing |
tubular |
| Dimensions |
Ø 58 / L = 110 |
| Material |
aluminum |
| Max. revolution, mechanical |
3000 |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Shaft material |
|
| Max. shaft load axial (at the shaft end) |
40 |
| Max. shaft load radial (at the shaft end) |
110 |
| Fixing flange |
Clamping flange |
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: D |
|
Connector: 1 x M12; coding: A |
