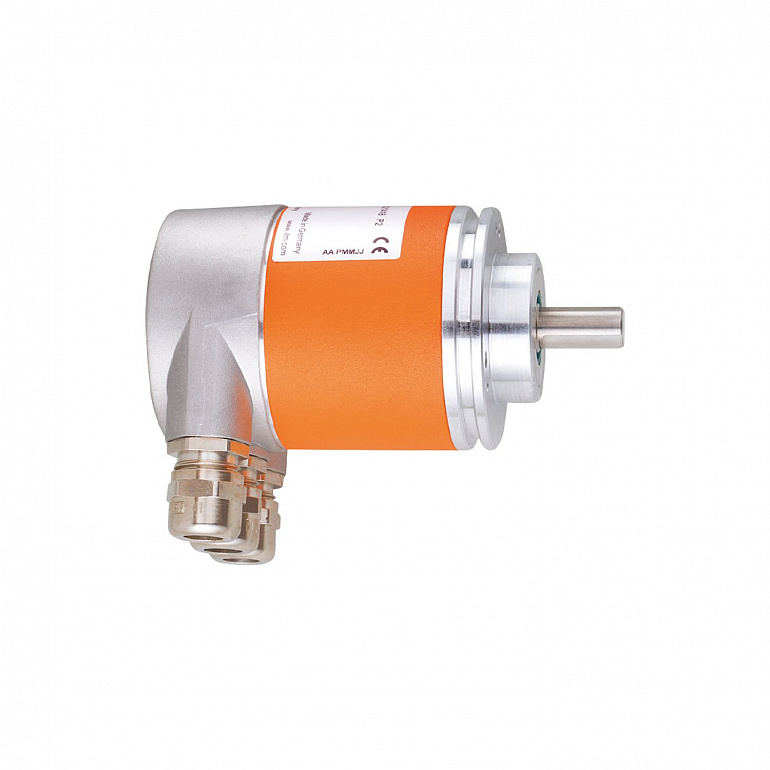

| Resolution |
8192 steps; 4096 revolutions; 25 bit |
| Communication interface |
PROFIBUS DP |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Function principle |
absolute |
| Revolution type |
multiturn |
| Operating voltage |
10...30 DC |
| Current consumption |
100; ((24 V)) |
| Reverse polarity protection |
yes |
| Code |
binary |
| Resolution |
8192 steps; 4096 revolutions; 25 bit |
| Parameter setting options |
counting direction of the code values; Resolution; Zero point; limit switches HI and LO; motion indicator; separation multiturn/singleturn |
| Diagnostic functions |
alarms; warnings; status; serial number of the encoder |
| Addressing |
address selector switch; 0...126 |
| Communication interface |
PROFIBUS DP |
| Transmission standard |
DPV2 |
| Ambient temperature |
-40...85 |
| Max. relative air humidity |
98 |
| Protection |
IP 67; (on the housing: IP 67; on the shaft: IP 67) |
| Shock resistance |
|
| Vibration resistance |
|
| MTTF |
13.5 |
| Weight |
596 |
| Housing |
tubular |
| Dimensions |
Ø 58 / L = 110 |
| Material |
aluminum |
| Max. revolution, mechanical |
12000 |
| Shaft design |
solid shaft |
| Shaft diameter |
10 |
| Shaft material |
|
| Max. shaft load axial (at the shaft end) |
40 |
| Max. shaft load radial (at the shaft end) |
110 |
| Fixing flange |
Clamping flange |
| Pack quantity |
1 pcs. |
|
Terminal strip in the terminal chamber: |
